HGW HYDRAULICS

1502-12-08

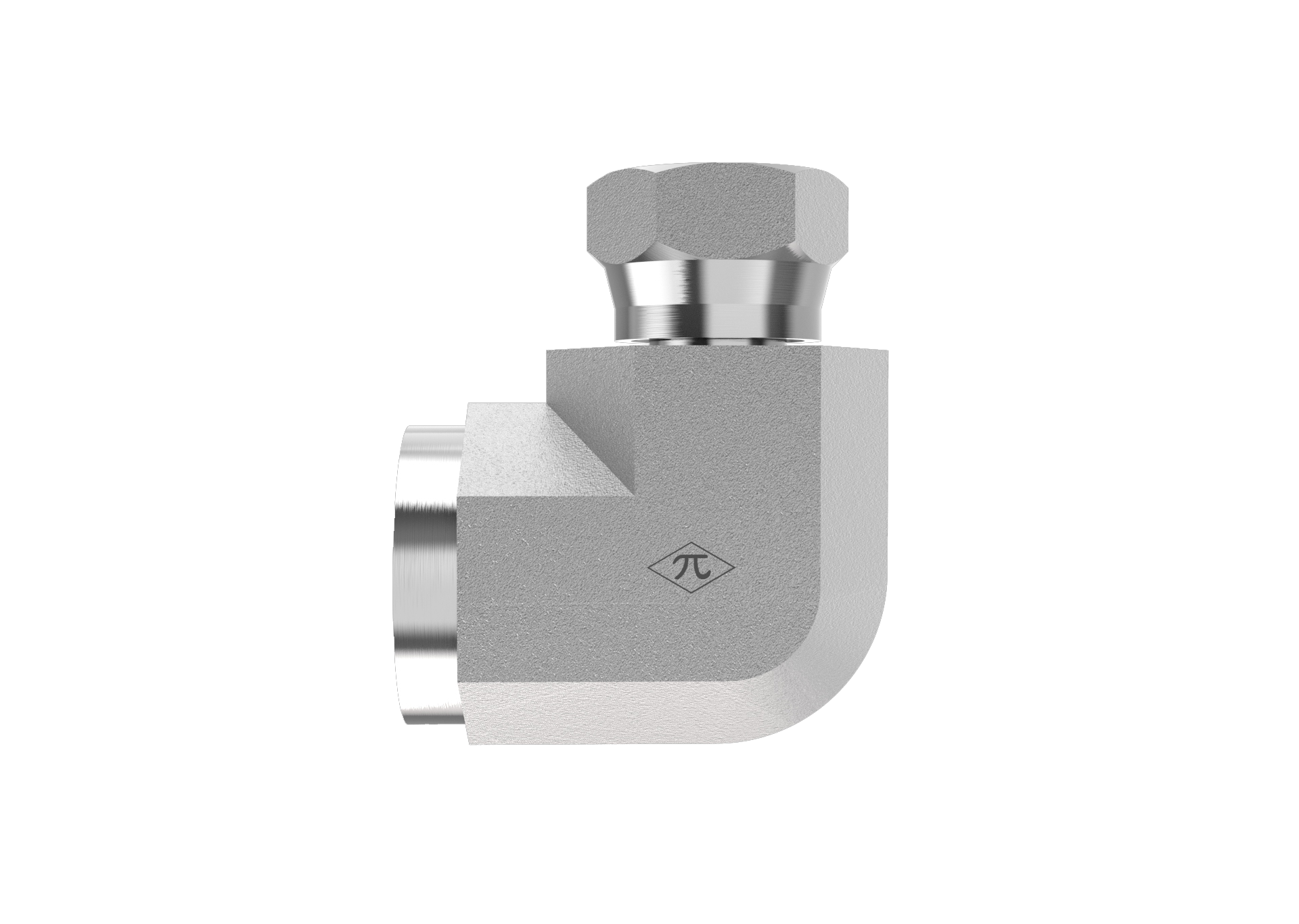

3/4" Female NPTF × 1/2" Female NPSM Swivel · Female Swivel Elbow

The HGW 1502-12-08-FG is a female swivel elbow joining 3/4" female NPTF to 1/2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Elbow
$29.41
(0) Write a Review
SKU:
1502-12-08

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Elbow
Weight0.69 lb
Cross References
Aeroquip2048-8-12S
Parker2207-12-8
SAE Ref.SAE J514 8-12 140231C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
