HGW HYDRAULICS

1502-12-12-SS

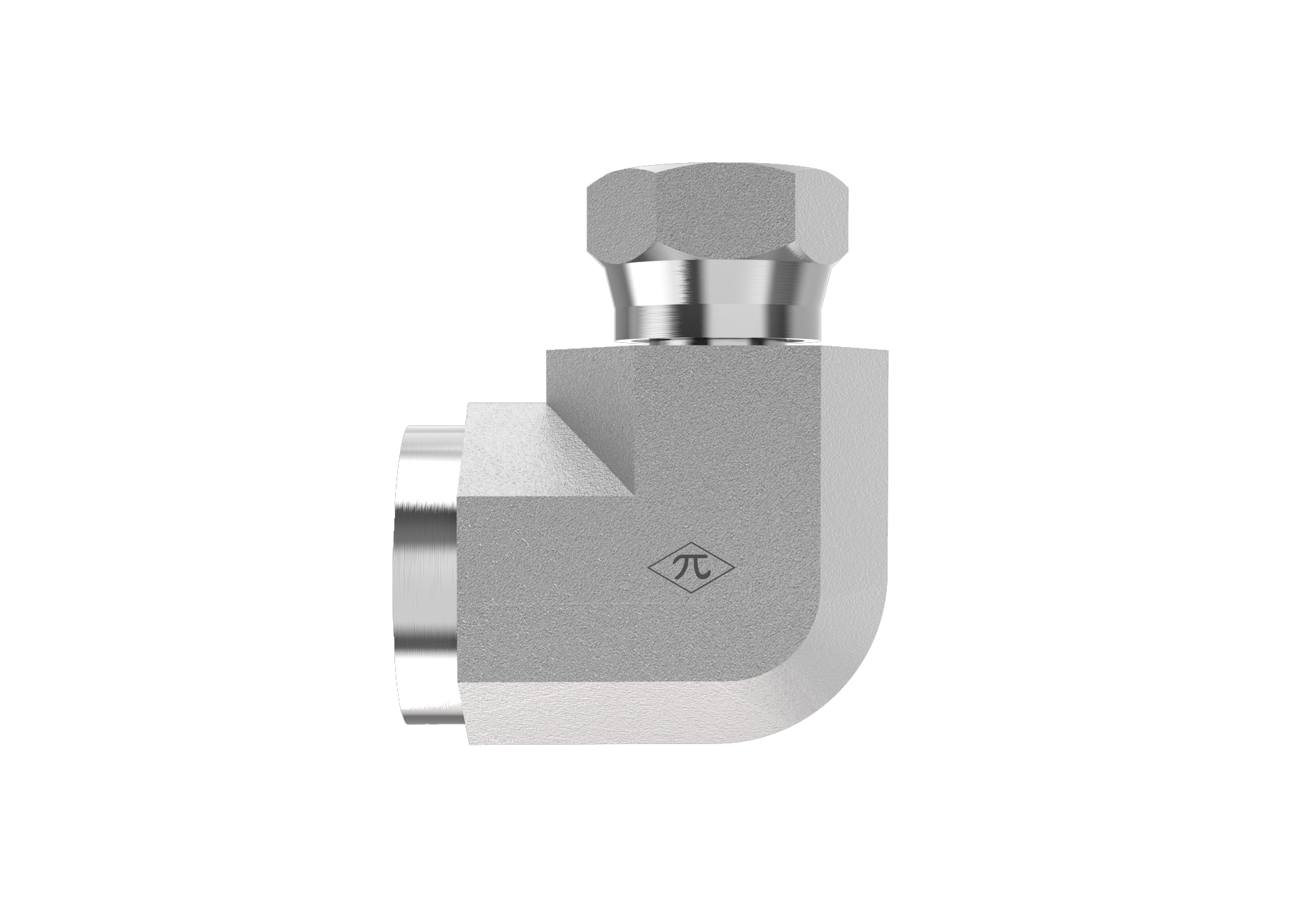

3/4" Female NPTF x 3/4" Female NPSM Swivel

1502-12-12-SS is a 3/4" Female NPTF x 3/4" Female NPSM Swivel in the 1502-FG Series. For connecting pipe to an NPSM straight-thread at a 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Female Swivel Elbow
  • None
$94.80
(0) Write a Review
SKU:
1502-12-12-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Elbow
Weight0.72 lb
PlatingNone
Cross References
Aeroquip259-2048-12-12
Parker2207-12-12-SS
SAE Ref.SAE J514 12-12 140231S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
