HGW HYDRAULICS

1502-16-16-SS

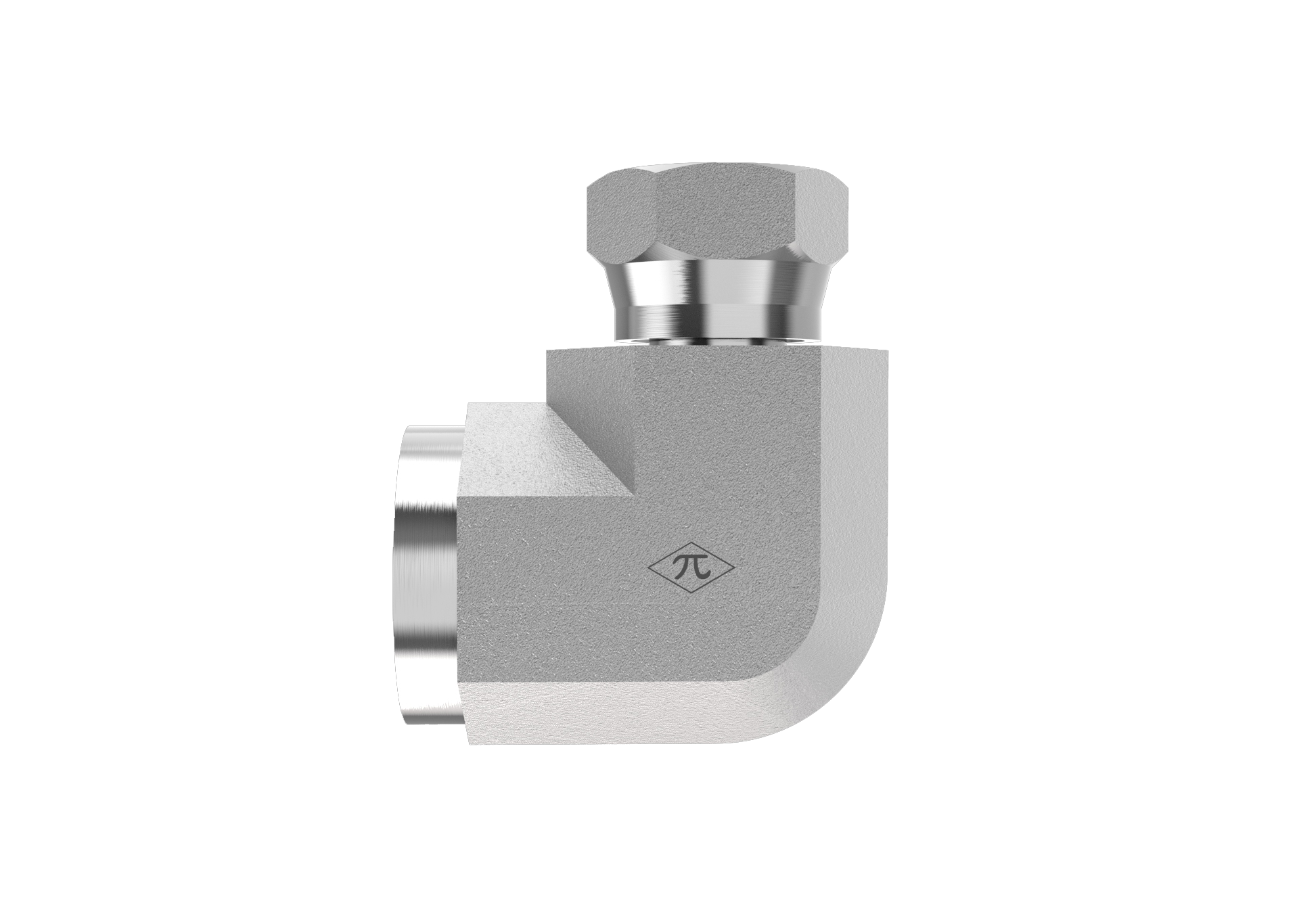

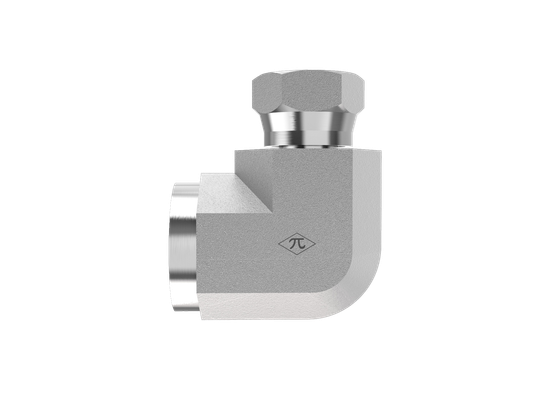

1" Female NPTF x 1" Female NPSM Swivel

1502-16-16-SS is a 1" Female NPTF x 1" Female NPSM Swivel in the 1502-FG Series. For connecting pipe to an NPSM straight-thread at a 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Female Swivel Elbow
  • None
$190.20
(0) Write a Review
SKU:
1502-16-16-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Elbow
Weight1.31 lb
PlatingNone
Cross References
Aeroquip259-2048-16-16
Parker2207-16-16-SS
SAE Ref.SAE J514 16-16 140231S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
