HGW HYDRAULICS

1502-32-32-FG

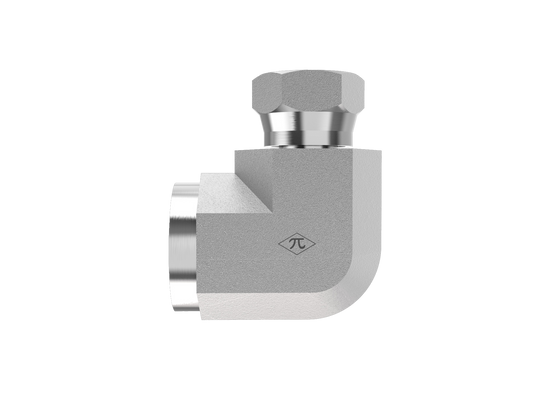

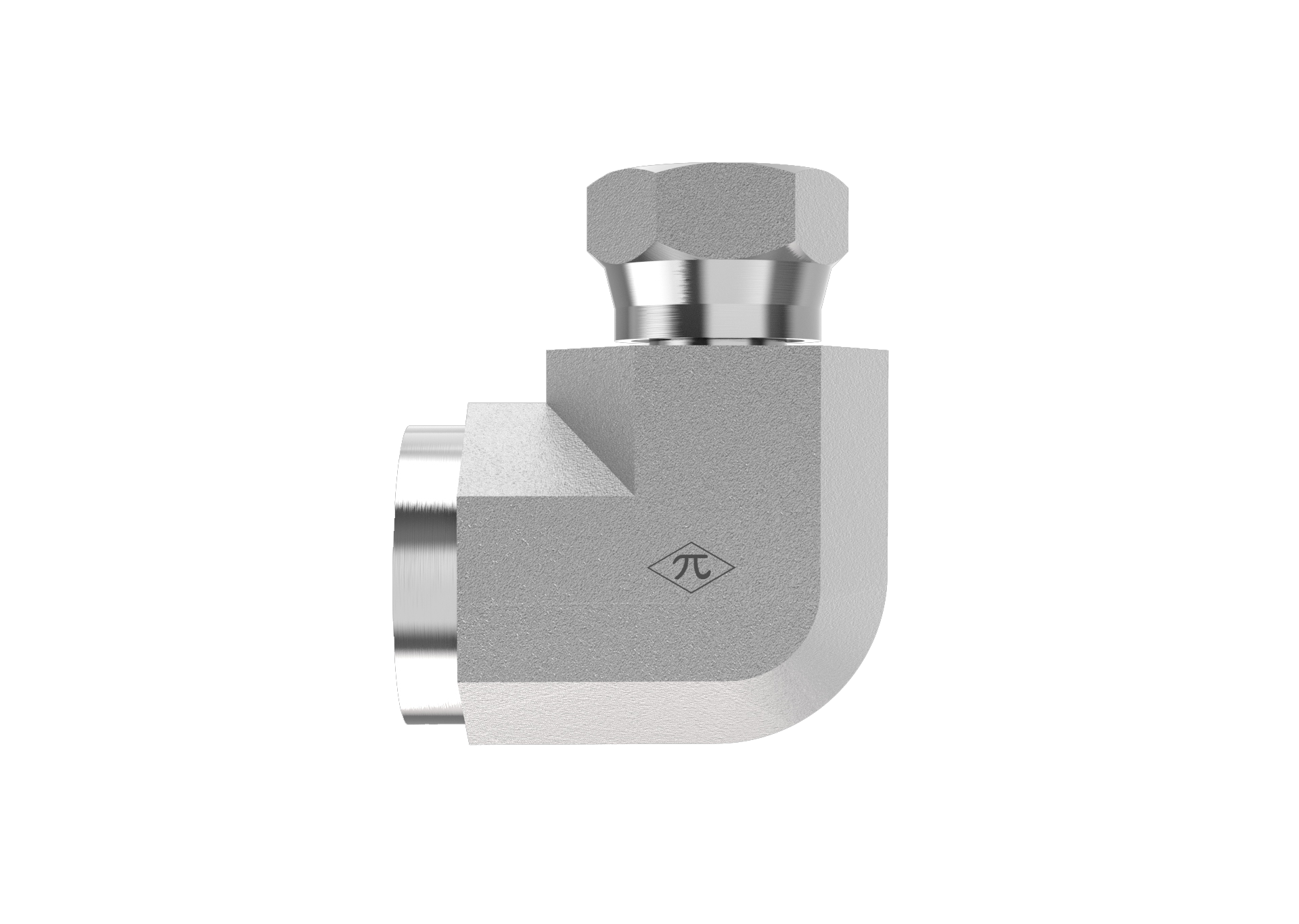

2" Female NPTF x 2" Female NPSM Swivel

1502-32-32-FG is a 2" Female NPTF x 2" Female NPSM Swivel in the 1502-FG Series. For connecting pipe to an NPSM straight-thread at a 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Swivel Elbow
$184.84
(0) Write a Review
SKU:
1502-32-32-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size2"
StandardSAE J514
Thread Type2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Elbow
Weight4.81 lb
Cross References
Aeroquip2048-32-32S
Parker2207-32-32
SAE Ref.SAE J514 32-32 140231C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
