1503-02-02-FG

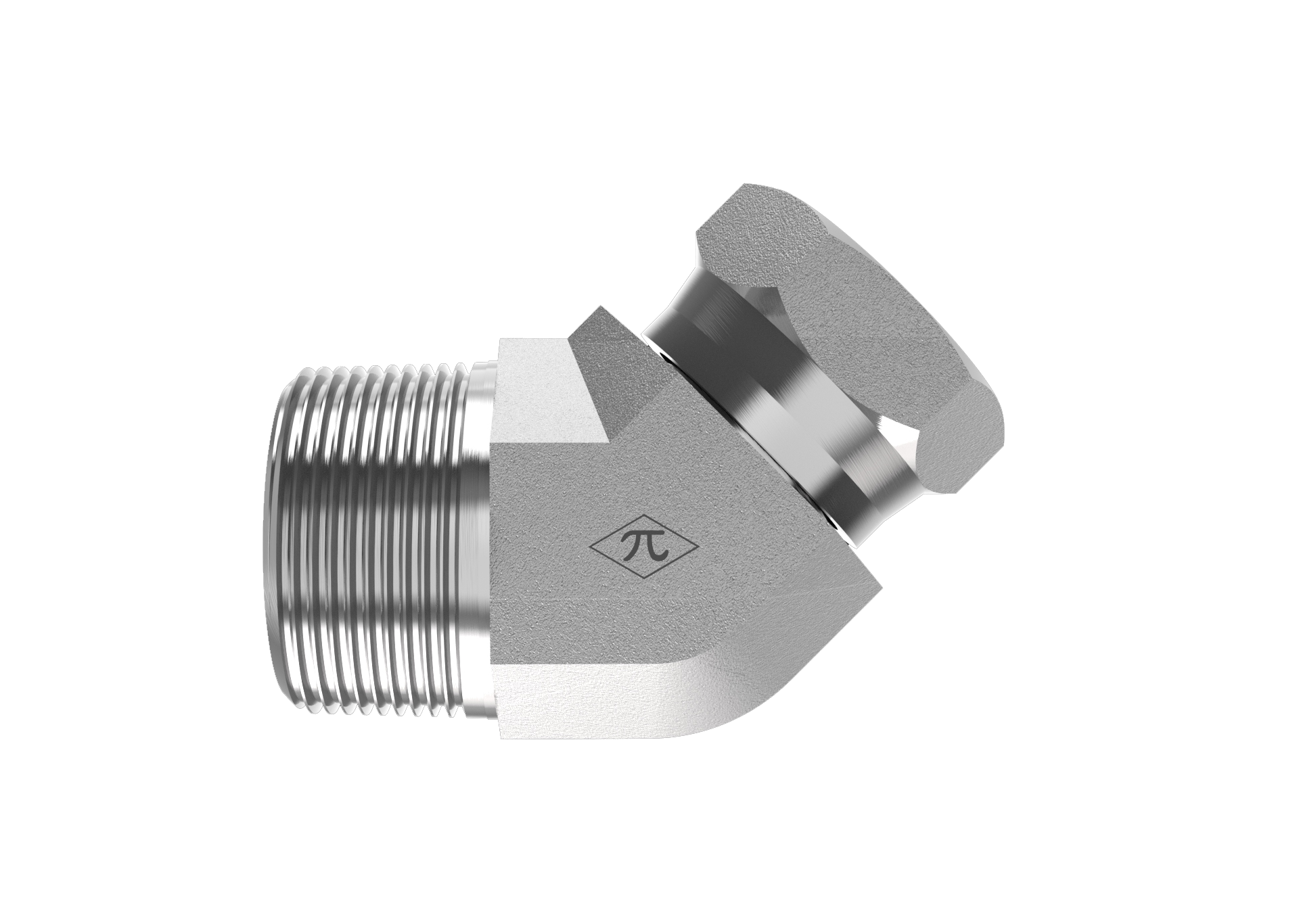

1/8" Male NPTF 30° x 1/8" Female NPSM Swivel

1503-02-02-FG is a 1/8" Male NPTF 30° x 1/8" Female NPSM Swivel in the 1503-FG Series. For connecting pipe to an NPSM straight-thread at a 45° angle using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$2.96
(0) Write a Review
SKU:
1503-02-02-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/8-27 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight0.04 lb
Cross References
Aeroquip2049-2-2S
Parker3107-2-2
SAE Ref.SAE J514 2-2 140330C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
