HGW HYDRAULICS

1503-04-06

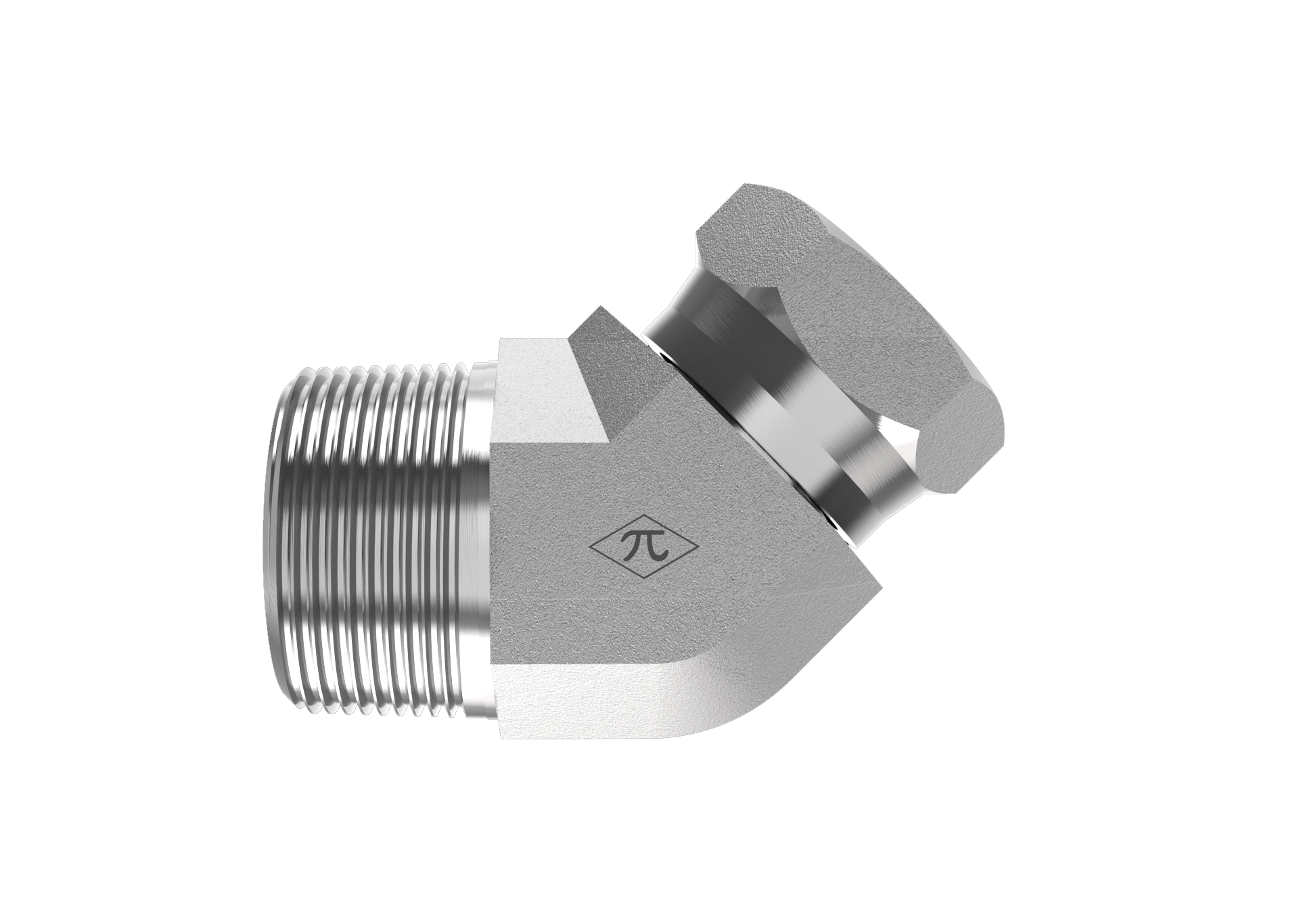

1/4" Male NPTF × 3/8" Female NPSM Swivel · Male Swivel Elbow

The HGW 1503-04-06-FG is a male swivel elbow joining 1/4" male NPTF to 3/8" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$14.33
(0) Write a Review
SKU:
1503-04-06

Product Details

Connection A
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight0.17 lb
Cross References
Aeroquip2049-6-4S
Parker3107-4-6
SAE Ref.SAE J514 6-4 140330C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
