HGW HYDRAULICS

1503-08-06

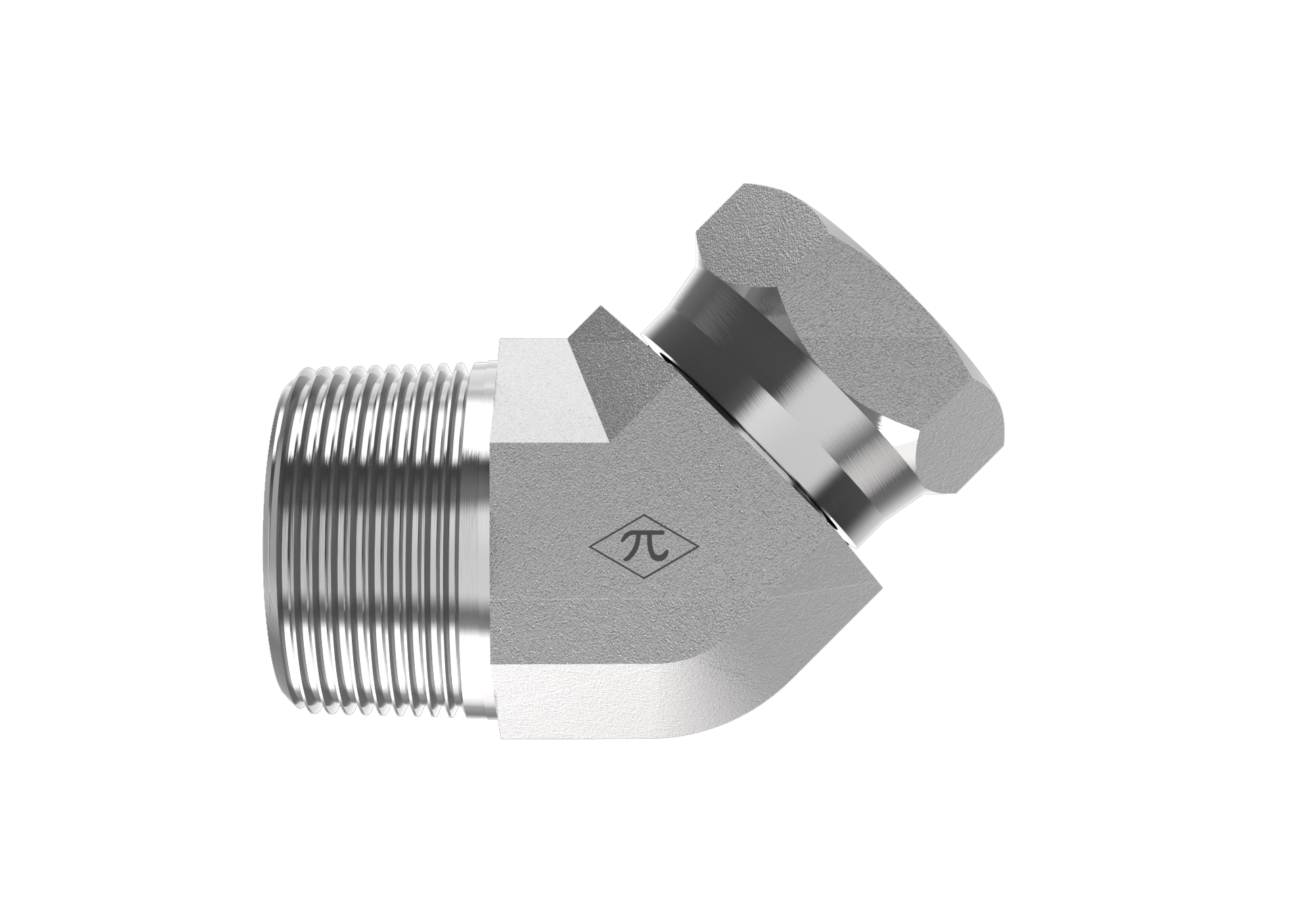

1/2" Male NPTF × 3/8" Female NPSM Swivel · Male Swivel Elbow

The HGW 1503-08-06-FG is a male swivel elbow joining 1/2" male NPTF to 3/8" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$7.04
(0) Write a Review
SKU:
1503-08-06

Product Details

Connection A
TypeMale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight0.22 lb
Cross References
Aeroquip2049-6-8S
Parker3107-8-6
SAE Ref.SAE J514 6-8 140330C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
