HGW HYDRAULICS

1503-08-08-SS

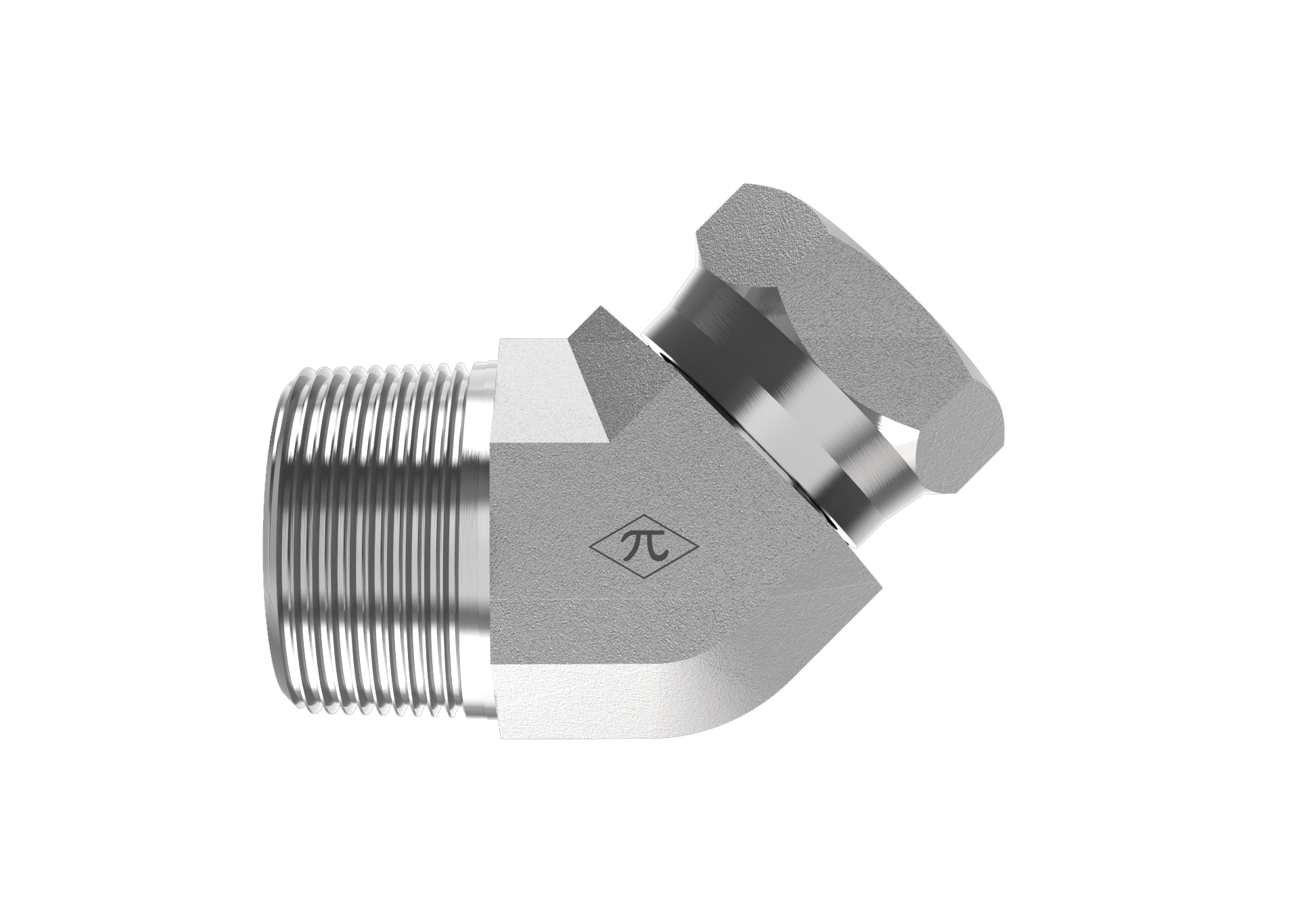

1/2" Male NPTF 30° x 1/2" Female NPSM Swivel

1503-08-08-SS is a 1/2" Male NPTF 30° x 1/2" Female NPSM Swivel in the 1503-FG Series. For connecting pipe to an NPSM straight-thread at a 45° angle using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Male Swivel Elbow
  • None
$36.25
(0) Write a Review
SKU:
1503-08-08-SS

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Swivel Elbow
Weight0.24 lb
PlatingNone
Cross References
Aeroquip259-2049-8-8
Parker3107-8-8-SS
SAE Ref.SAE J514 8-8 140330S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
