HGW HYDRAULICS

1503-08-12-FG

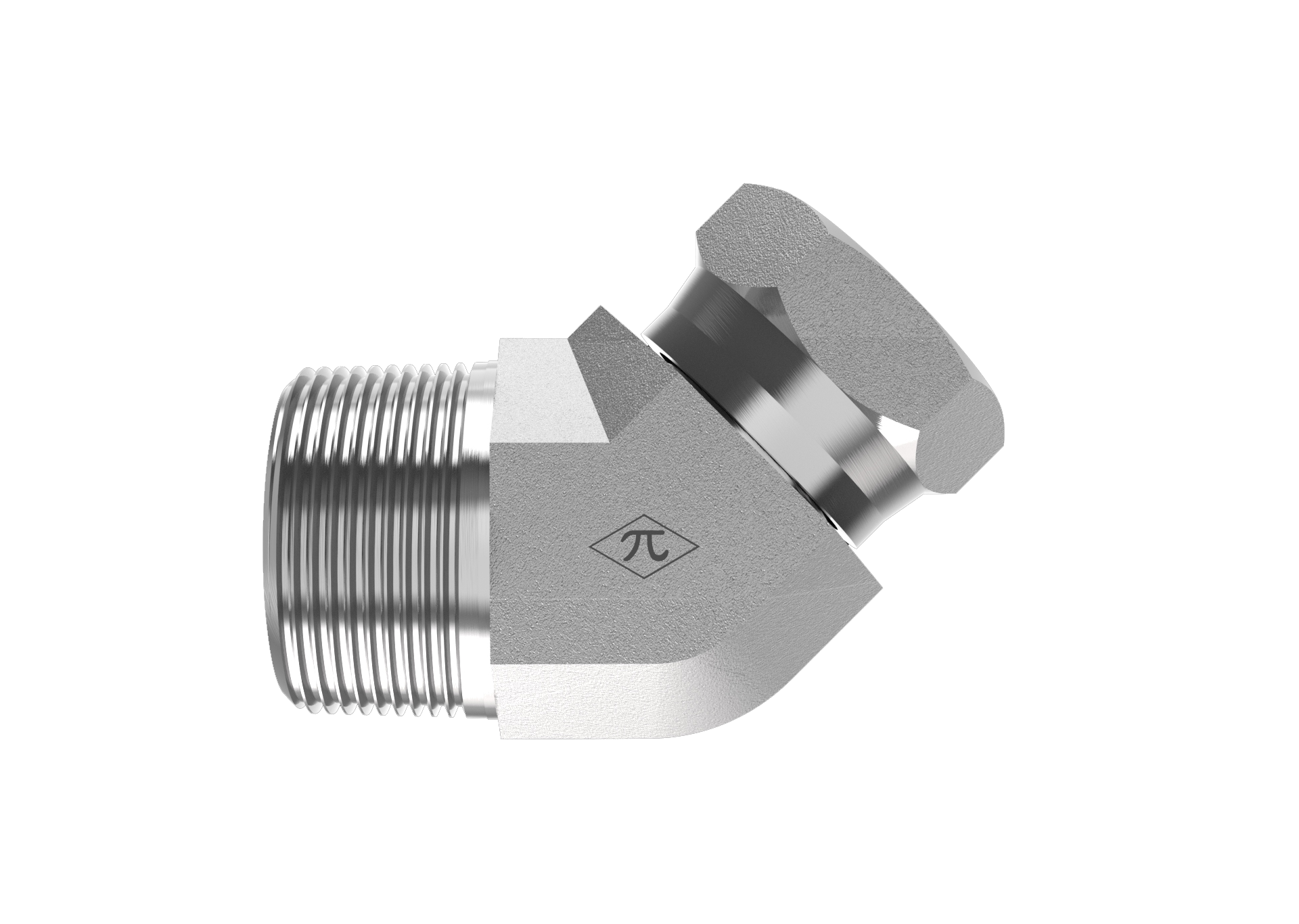

1/2" Male NPTF 30° x 3/4" Female NPSM Swivel

1503-08-12-FG is a 1/2" Male NPTF 30° x 3/4" Female NPSM Swivel in the 1503-FG Series. For connecting pipe to an NPSM straight-thread at a 45° angle using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$14.00
(0) Write a Review
SKU:
1503-08-12-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight0.38 lb
Cross References
Aeroquip2049-12-8S
Parker3107-8-12
SAE Ref.SAE J514 12-8 140330C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
