HGW HYDRAULICS

1503-16-16-SS

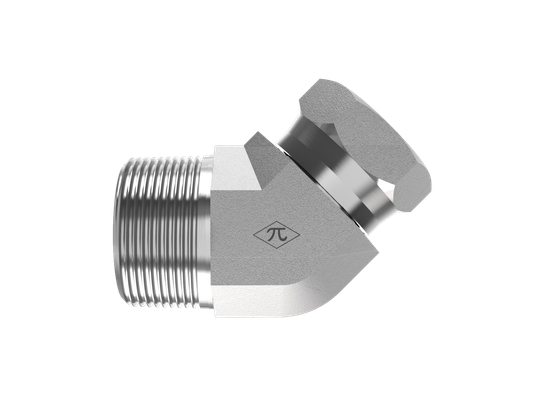

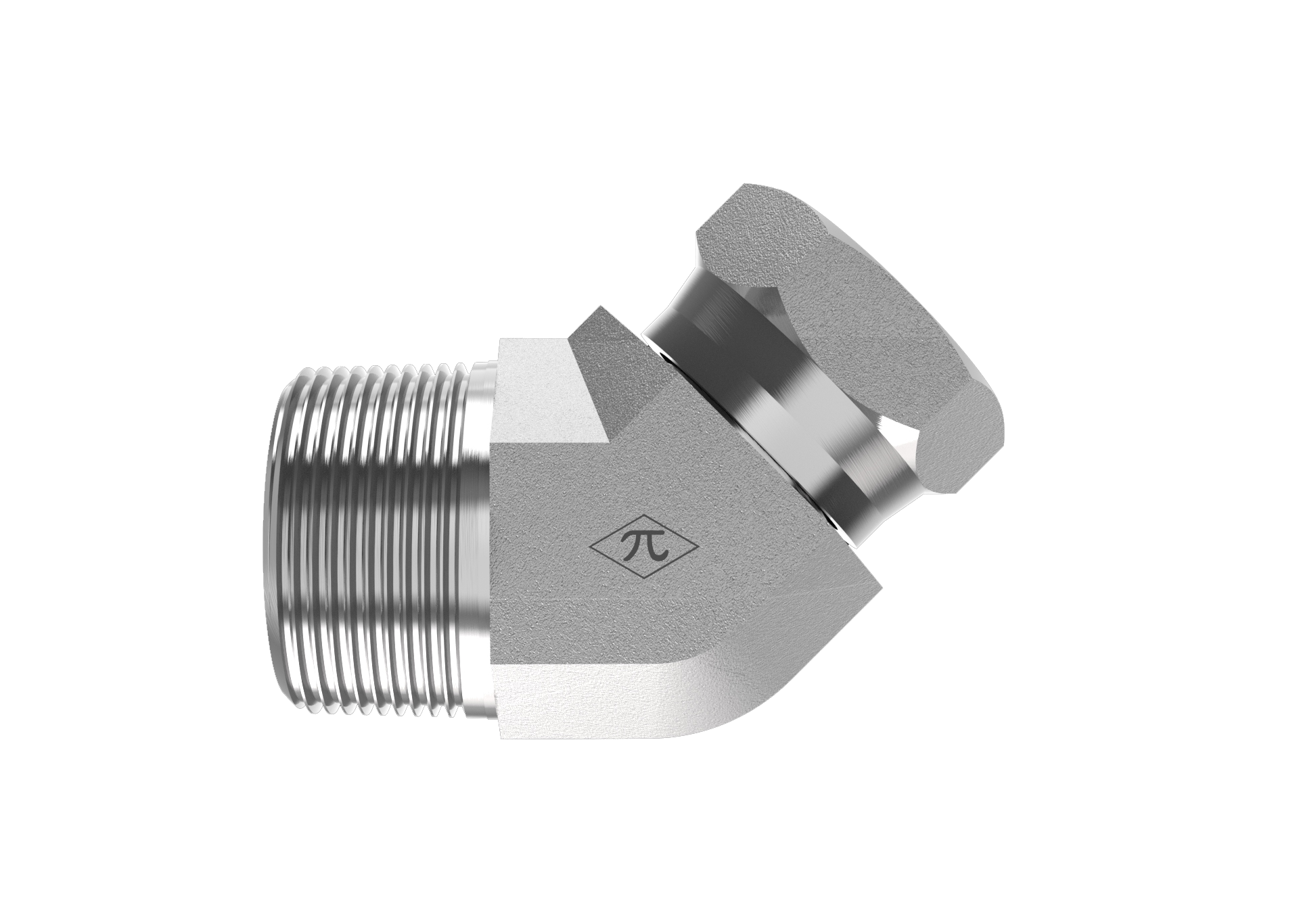

1" Male NPTF × 1" Female NPSM Swivel · Male Swivel Elbow

The HGW 1503-16-16-SS is a male swivel elbow joining 1" male NPTF to 1" female NPSM swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Male Swivel Elbow
$175.28
(0) Write a Review
SKU:
1503-16-16-SS

Product Details

Connection A
TypeMale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Swivel Elbow
Weight0.66 lb
Cross References
Aeroquip259-2049-16-16
Parker3107-16-16-SS
SAE Ref.SAE J514 16-16 140330S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
