HGW HYDRAULICS

1503-20-16-SS

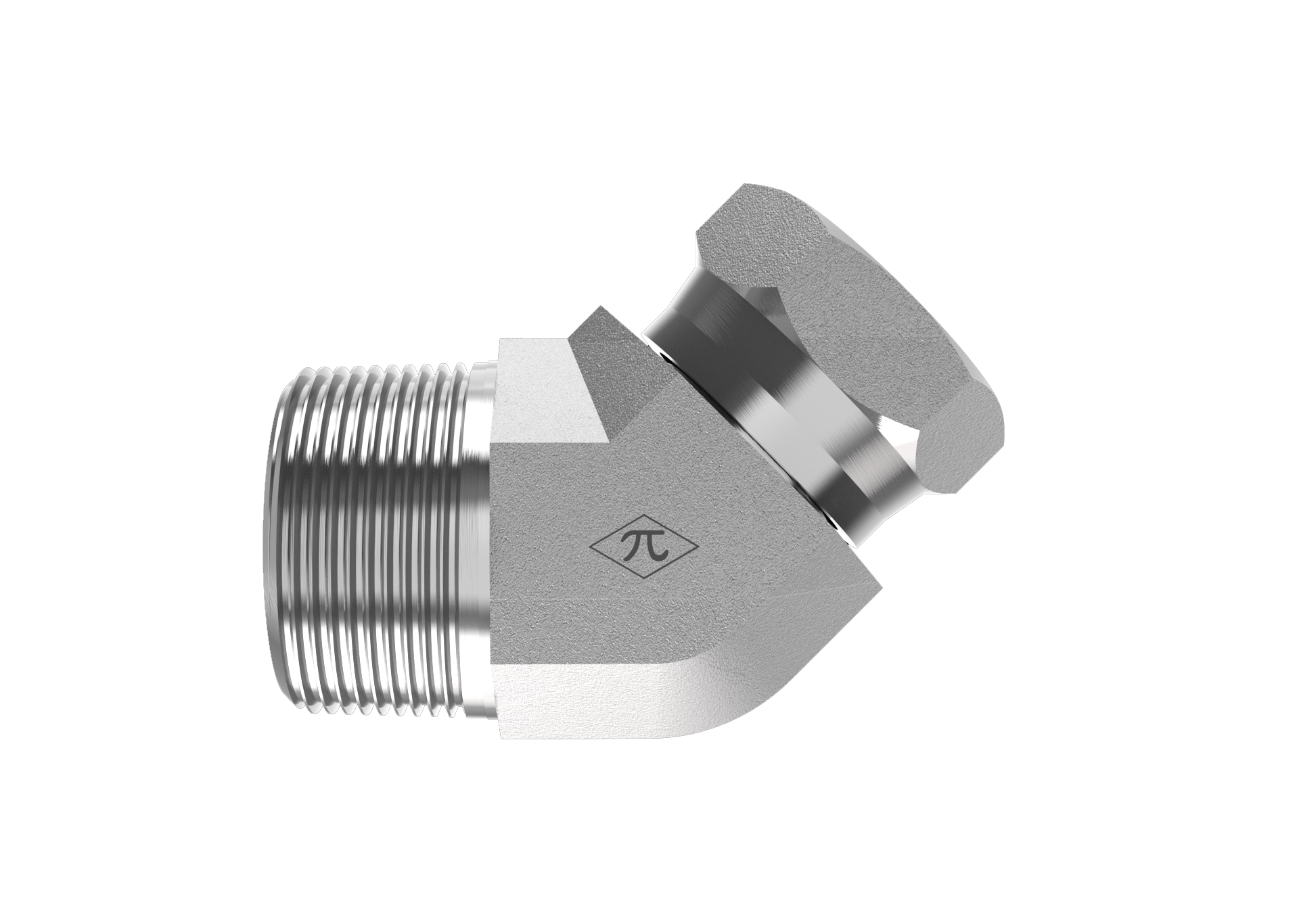

1-1/4" Male NPTF × 1" Female NPSM Swivel · Male Swivel Elbow

The HGW 1503-20-16-SS is a male swivel elbow joining 1-1/4" male NPTF to 1" female NPSM swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Male Swivel Elbow
$477.59
(0) Write a Review
SKU:
1503-20-16-SS

Product Details

Connection A
TypeMale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/4-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-1/4-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Swivel Elbow
Weight1.49 lb
Cross References
Aeroquip259-2049-16-20
Parker3107-20-16-SS
SAE Ref.SAE J514 16-20 140330S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
