HGW HYDRAULICS

1503-32-32

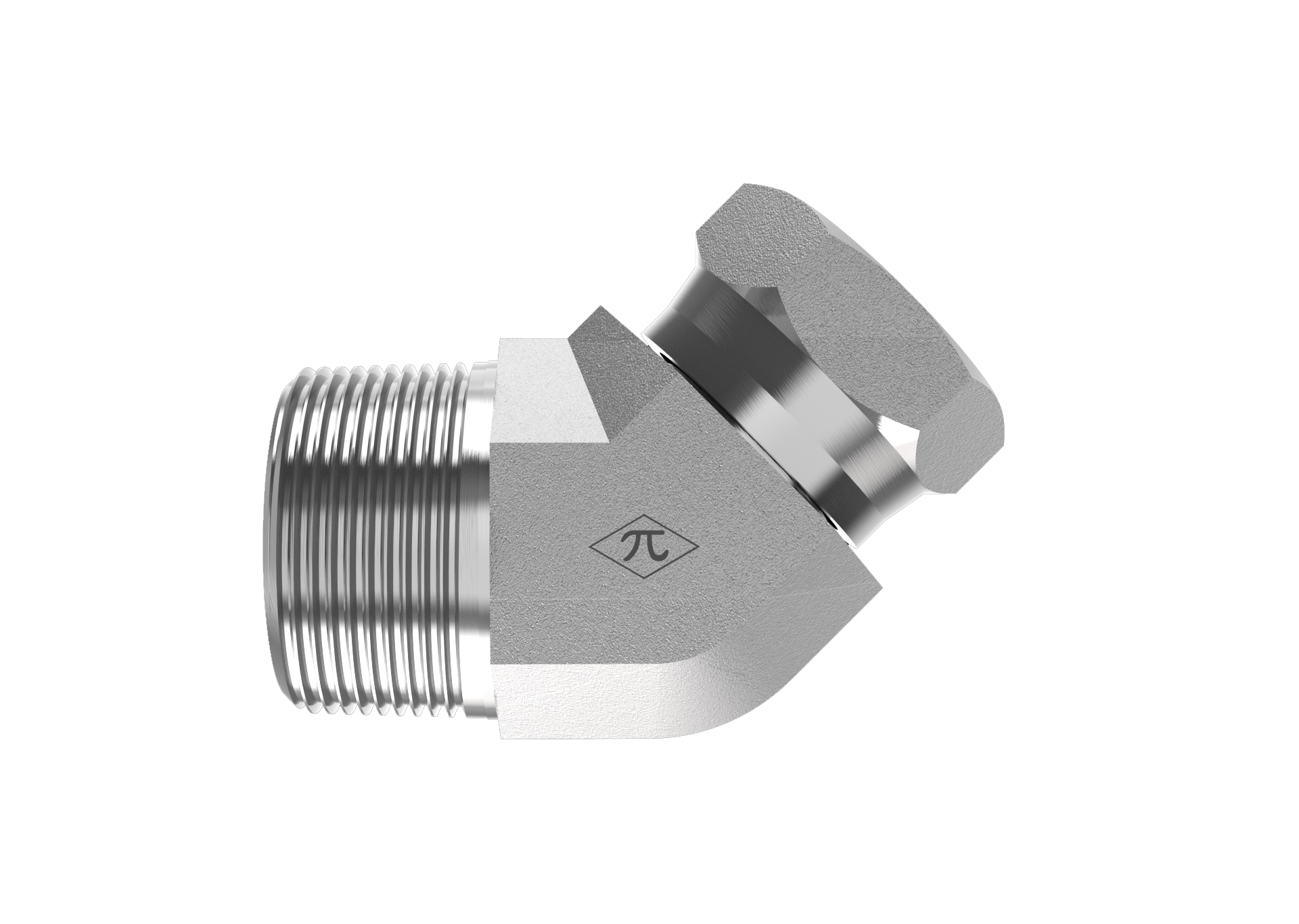

2" Male NPTF × 2" Female NPSM Swivel · Male Swivel Elbow

The HGW 1503-32-32-FG is a male swivel elbow joining 2" male NPTF to 2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$96.44
(0) Write a Review
SKU:
1503-32-32

Product Details

Connection A
TypeMale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size2"
StandardSAE J514
Thread Type2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight2.29 lb
Cross References
Aeroquip2049-32-32S
Parker3107-32-32
SAE Ref.SAE J514 32-32 140330C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
