1503-32-32-SS

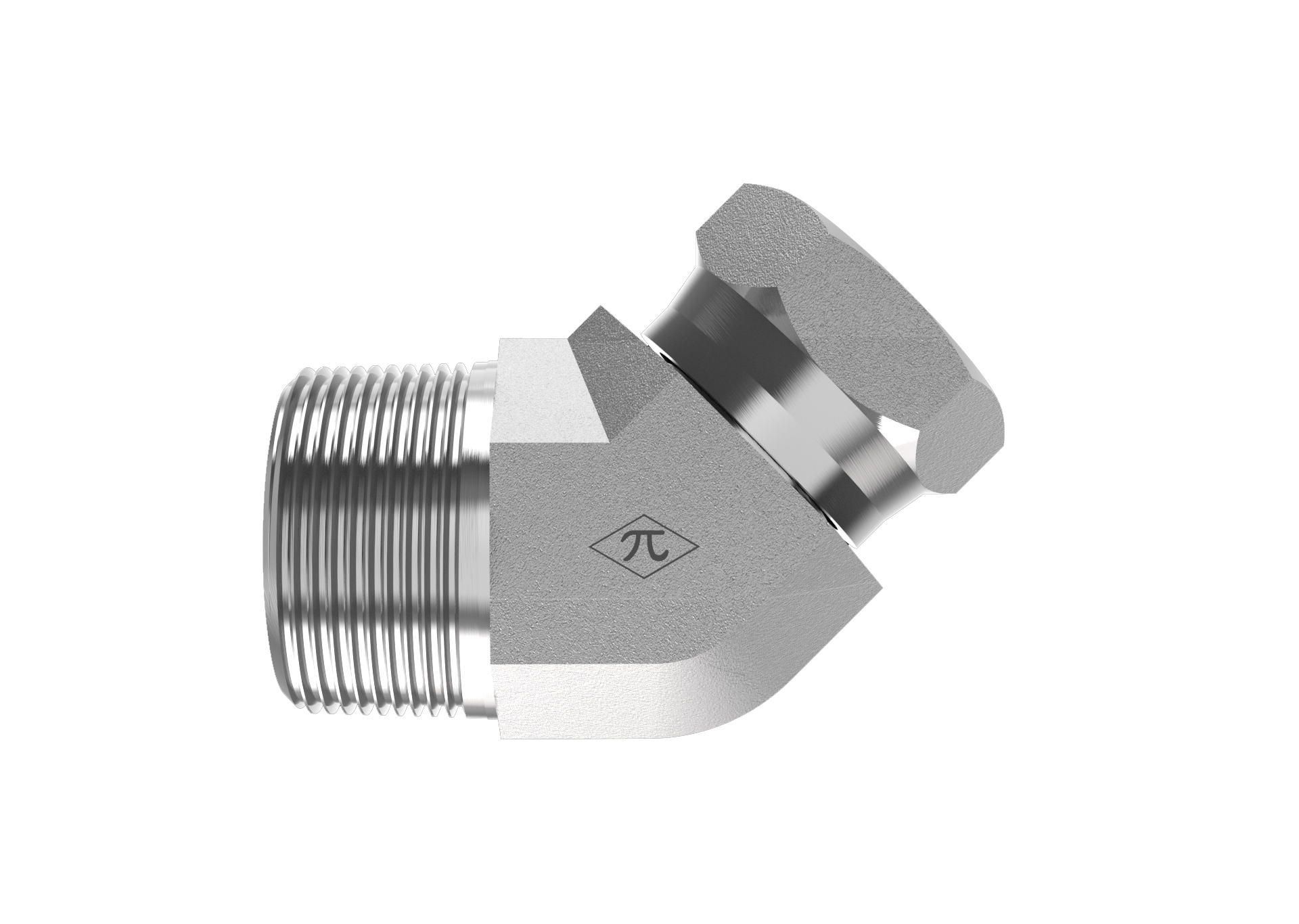

2" Male NPTF 30° x 2" Female NPSM Swivel

1503-32-32-SS is a 2" Male NPTF 30° x 2" Female NPSM Swivel in the 1503-FG Series. For connecting pipe to an NPSM straight-thread at a 45° angle using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Male Swivel Elbow
  • None
$1,477.23
(0) Write a Review
SKU:
1503-32-32-SS

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size2"
StandardSAE J476
Thread Type2-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size2"
StandardSAE J514
Thread Type2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Swivel Elbow
Weight2.34 lb
PlatingNone
Cross References
Aeroquip259-2049-32-32
Parker3107-32-32-SS
SAE Ref.SAE J514 32-32 140330S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
