HGW HYDRAULICS

1504-04-04-SS

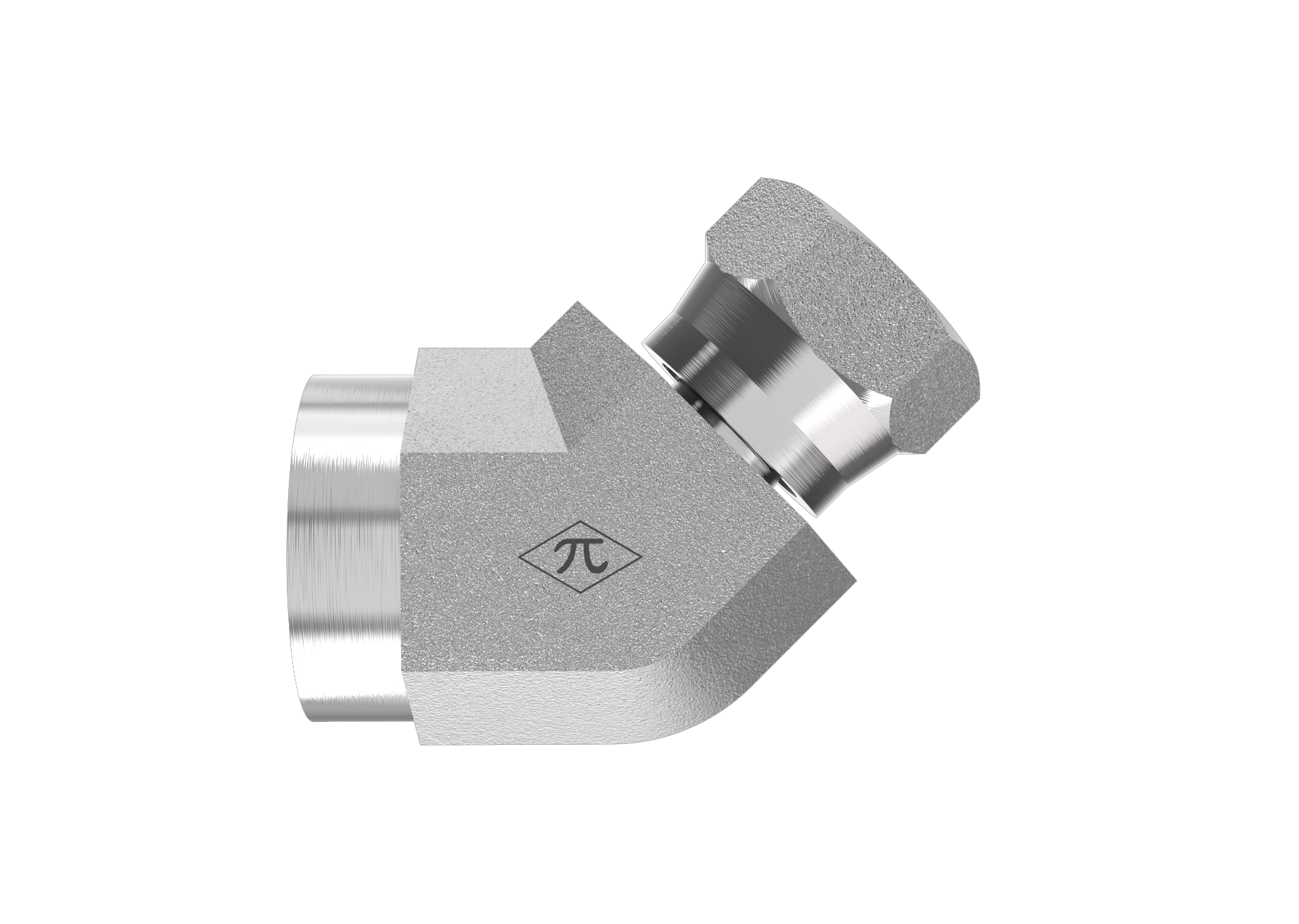

1/4" Female NPTF x 1/4" Female NPSM Swivel

1504-04-04-SS is a 1/4" Female NPTF x 1/4" Female NPSM Swivel in the 1504-FG Series. 1504-FG connects a female NPTF pipe end to a female NPSM swivel in a 45-degree elbow.

  • Stainless Steel
  • Female Swivel Elbow
  • None
$74.26
(0) Write a Review
SKU:
1504-04-04-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Elbow
Weight0.19 lb
PlatingNone
Cross References
Aeroquip259-2050-4-4
Parker3207-4-4-SS
SAE Ref.SAE J514 4-4 140331S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
