HGW HYDRAULICS

1504-08-06-FG

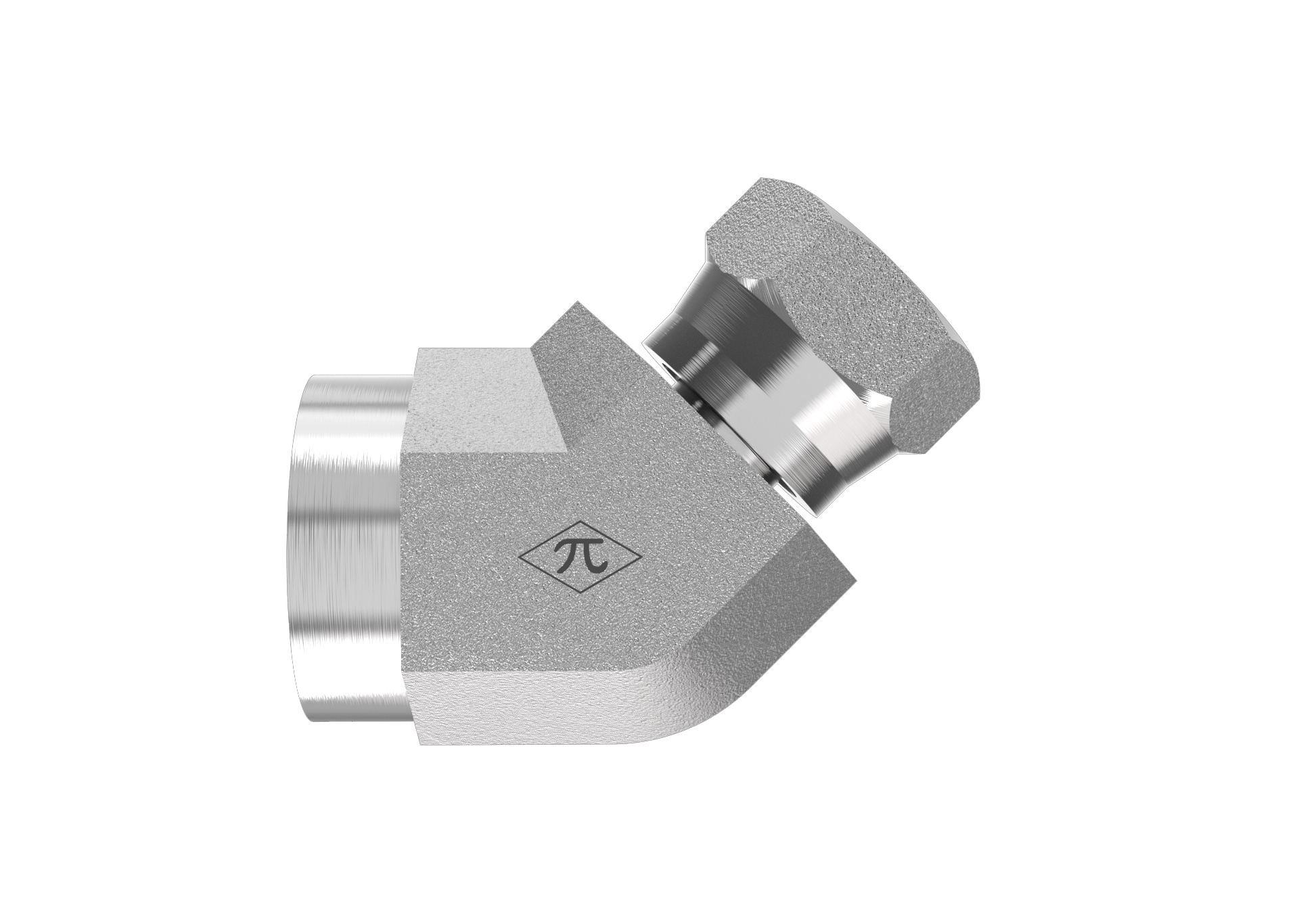

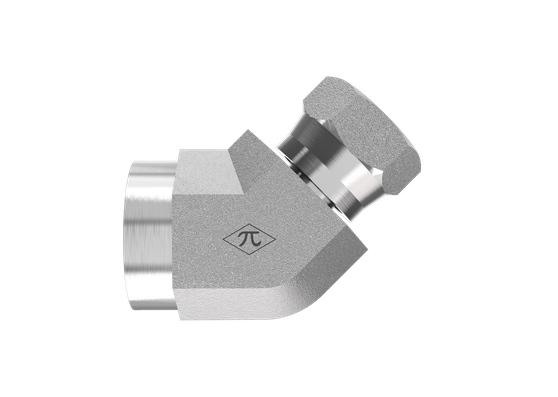

1/2" Female NPTF x 3/8" Female NPSM Swivel

1504-08-06-FG is a 1/2" Female NPTF x 3/8" Female NPSM Swivel in the 1504-FG Series. 1504-FG connects a female NPTF pipe end to a female NPSM swivel in a 45-degree elbow.

  • Steel
  • Trivalent Zinc
  • Female Swivel Elbow
$32.44
(0) Write a Review
SKU:
1504-08-06-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Elbow
Weight0.31 lb
Cross References
Aeroquip2050-6-8S
Parker3207-8-6
SAE Ref.SAE J514 6-8 140331C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
