HGW HYDRAULICS

1504-12-12-SS

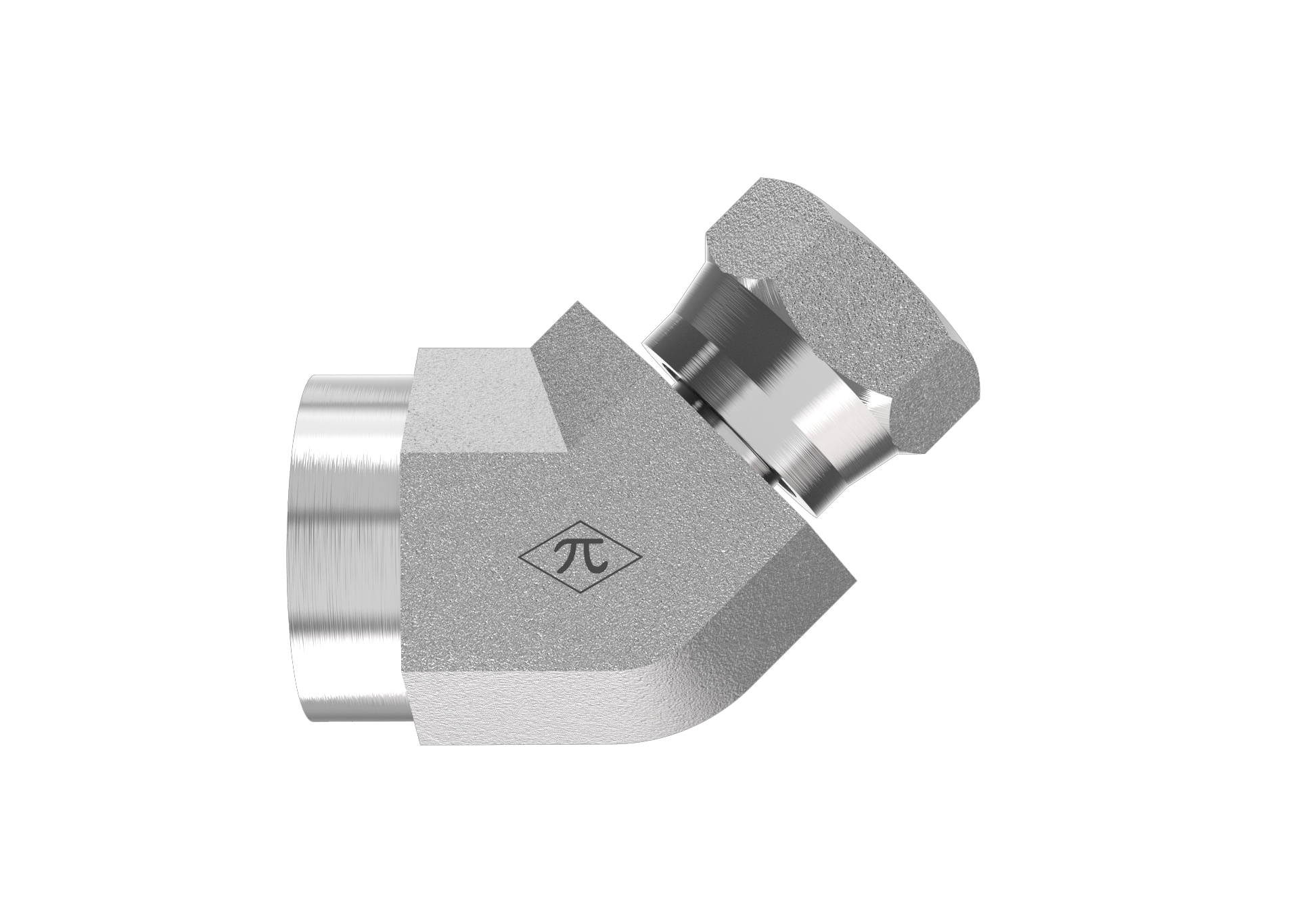

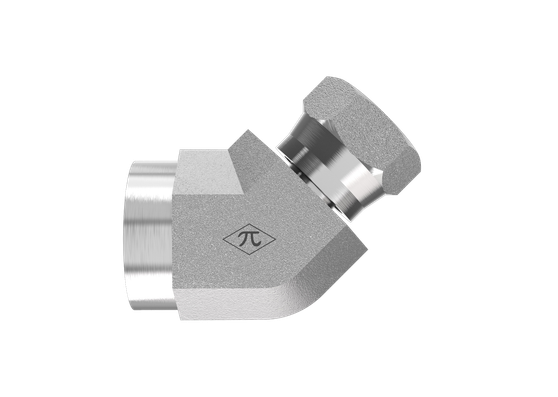

3/4" Female NPTF x 3/4" Female NPSM Swivel

1504-12-12-SS is a 3/4" Female NPTF x 3/4" Female NPSM Swivel in the 1504-FG Series. 1504-FG connects a female NPTF pipe end to a female NPSM swivel in a 45-degree elbow.

  • Stainless Steel
  • Female Swivel Elbow
  • None
$369.02
(0) Write a Review
SKU:
1504-12-12-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Elbow
Weight1.08 lb
PlatingNone
Cross References
Aeroquip259-2050-12-12
Parker3207-12-12-SS
SAE Ref.SAE J514 12-12 140331S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
