HGW HYDRAULICS

1504-16-16

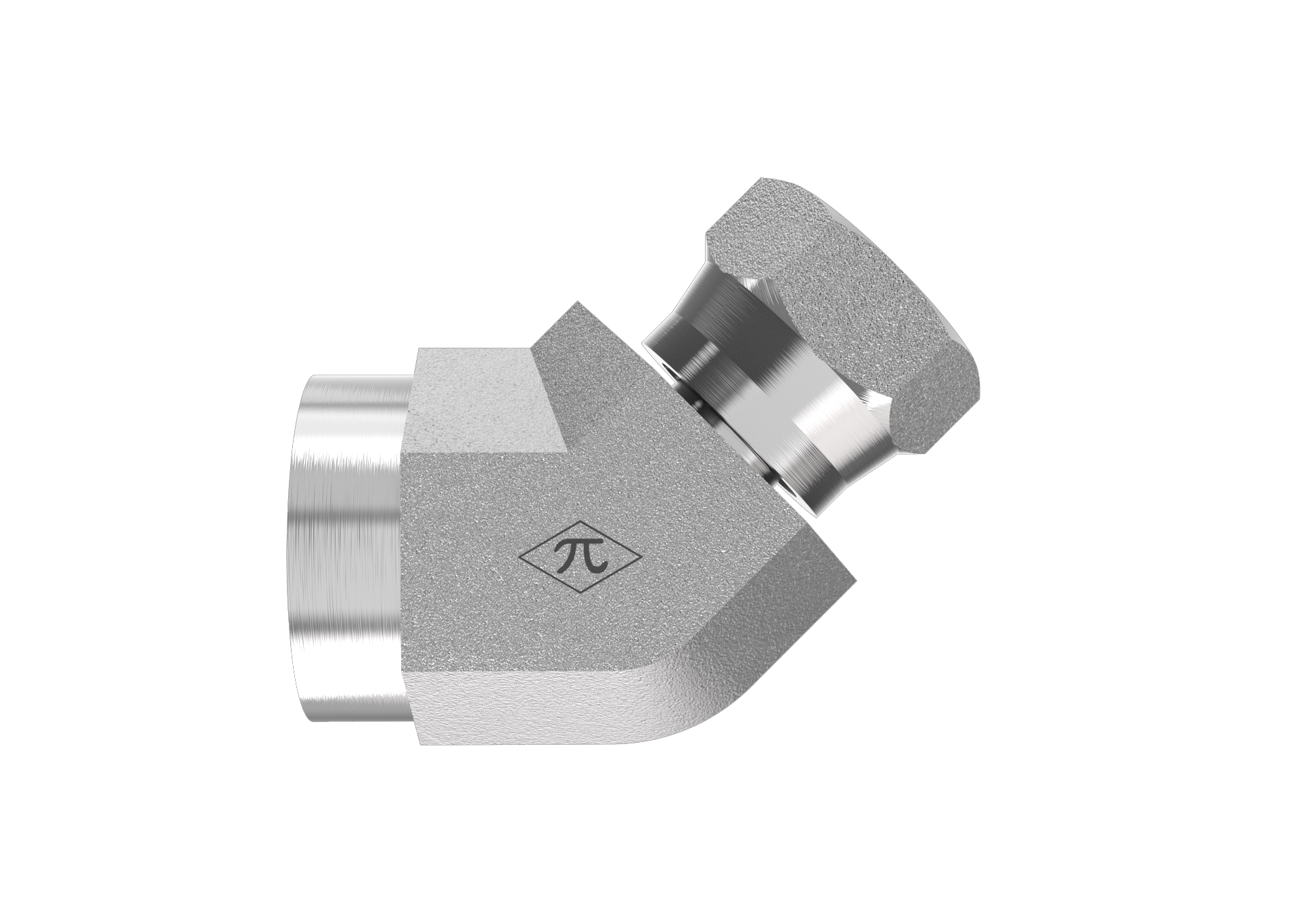

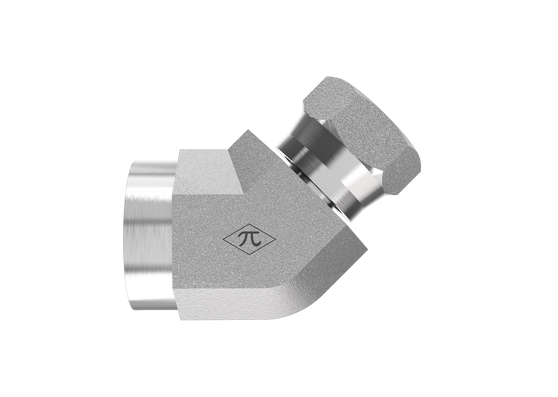

1" Female NPTF × 1" Female NPSM Swivel · Female Swivel Elbow

The HGW 1504-16-16-FG is a female swivel elbow joining 1" female NPTF to 1" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Elbow
$22.21
(0) Write a Review
SKU:
1504-16-16

Product Details

Connection A
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Elbow
Weight0.87 lb
Cross References
Aeroquip2050-16-16S
Parker3207-16-16
SAE Ref.SAE J514 16-16 140331C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
