HGW HYDRAULICS

1601-02-02-02-FG

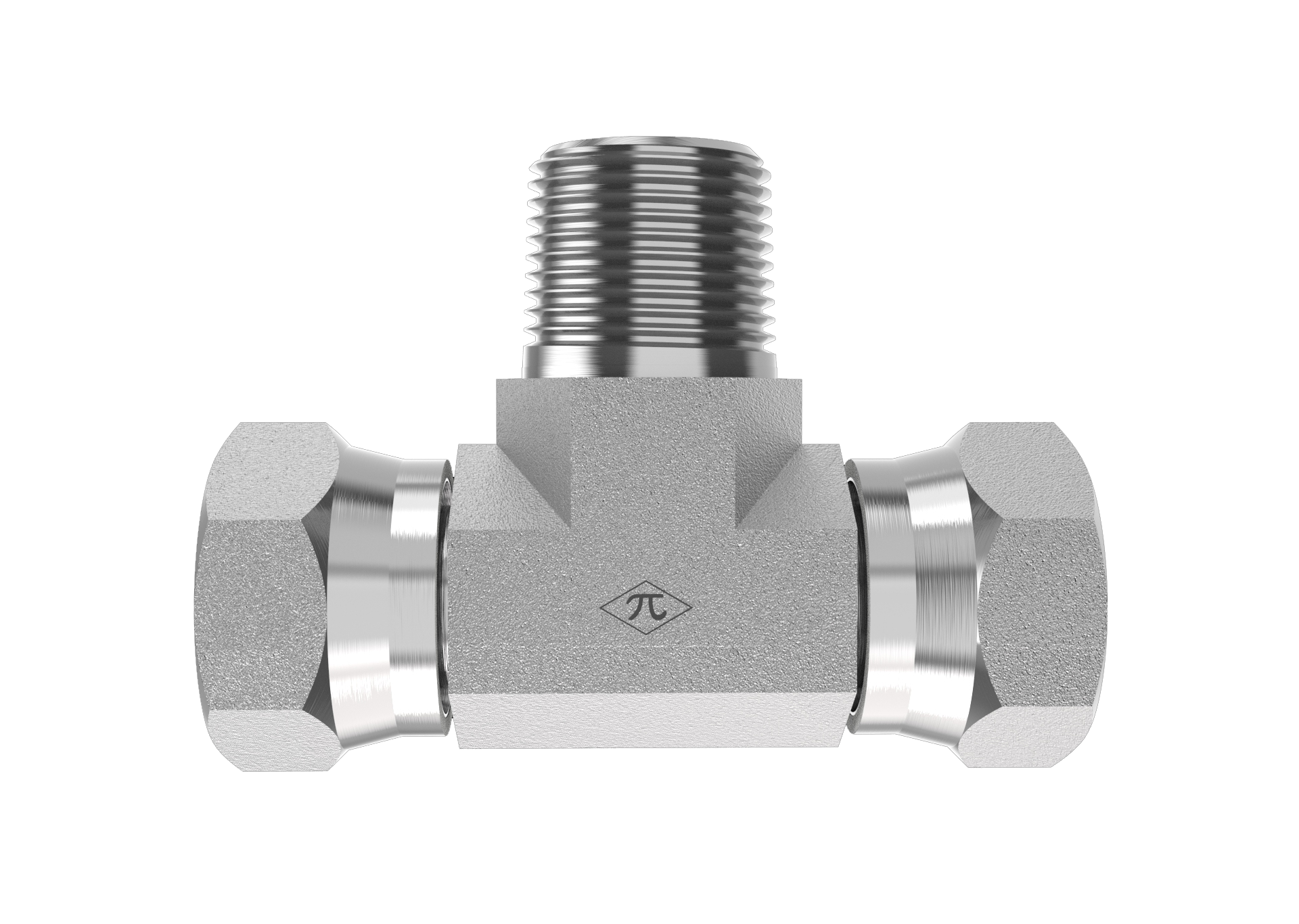

1/8" Male NPTF 30° x 1/8" Female NPSM Swivel x 1/8" Female NPSM Swivel

1601-02-02-02-FG is a 1/8" Male NPTF 30° x 1/8" Female NPSM Swivel x 1/8" Female NPSM Swivel in the 1601-FG Series. For branching pipe to two NPSM straight-threads using swivels for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Tee
$9.34
(0) Write a Review
SKU:
1601-02-02-02-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/8-27 NPTF
Connection C
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/8-27 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Tee
Weight0.09 lb
Cross References
Aeroquip2254-2-2S
Parker217T-2-2

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
