HGW HYDRAULICS

1601-06-06-06

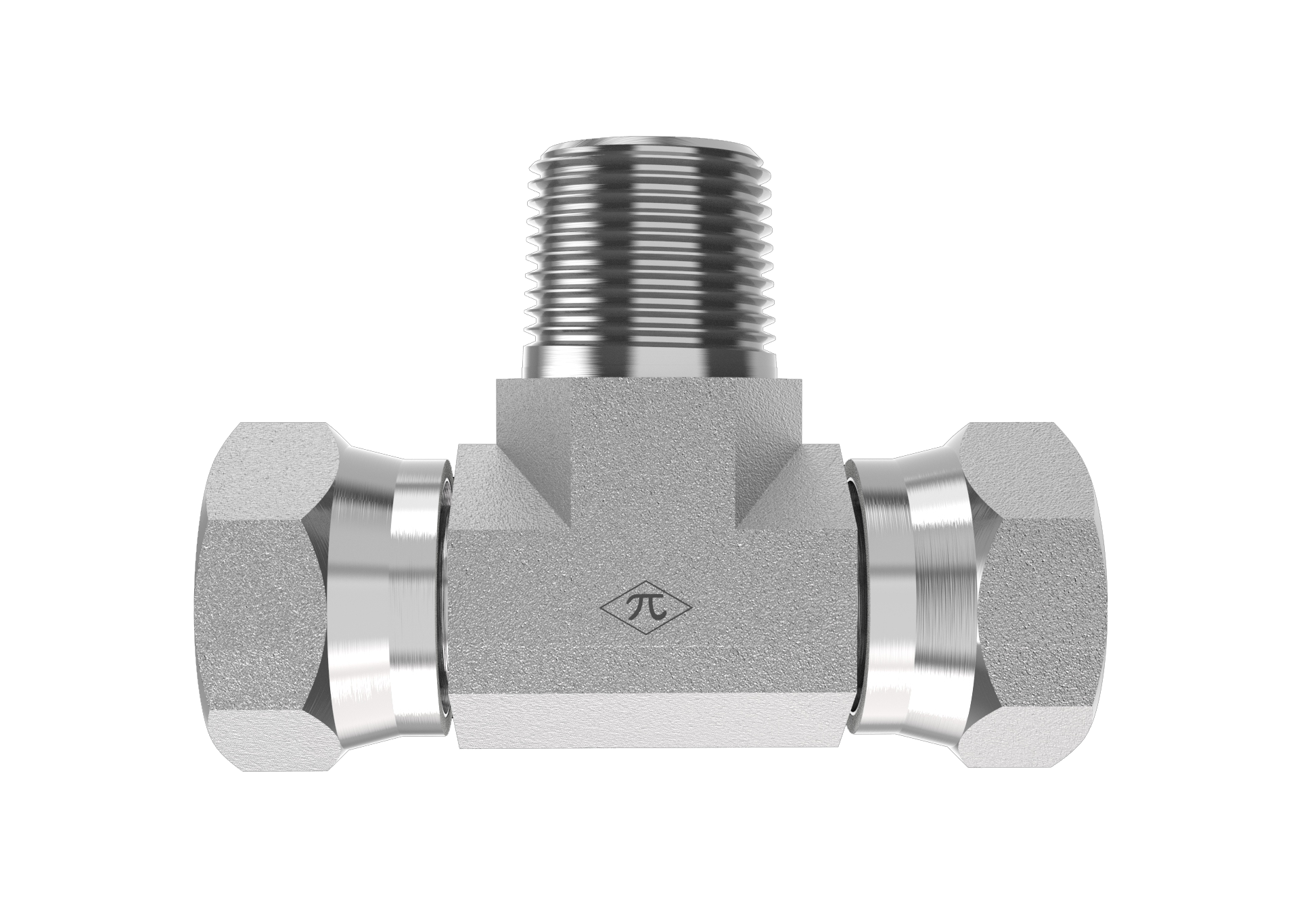

3/8" Male NPTF × 3/8" Female NPSM Swivel × 3/8" Female NPSM Swivel · Male Swivel Tee

The HGW 1601-06-06-06-FG is a male swivel tee combining 3/8" male NPTF, 3/8" female NPSM swivel, and 3/8" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swivel Tee
$8.10
(0) Write a Review
SKU:
1601-06-06-06

Product Details

Connection A
TypeMale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type3/8-18 NPTF
Connection C
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type3/8-18 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Tee
Weight0.31 lb
Cross References
Aeroquip2254-6-6S
Parker217T-6-6

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
