HGW HYDRAULICS

1601-08-06-06-FG

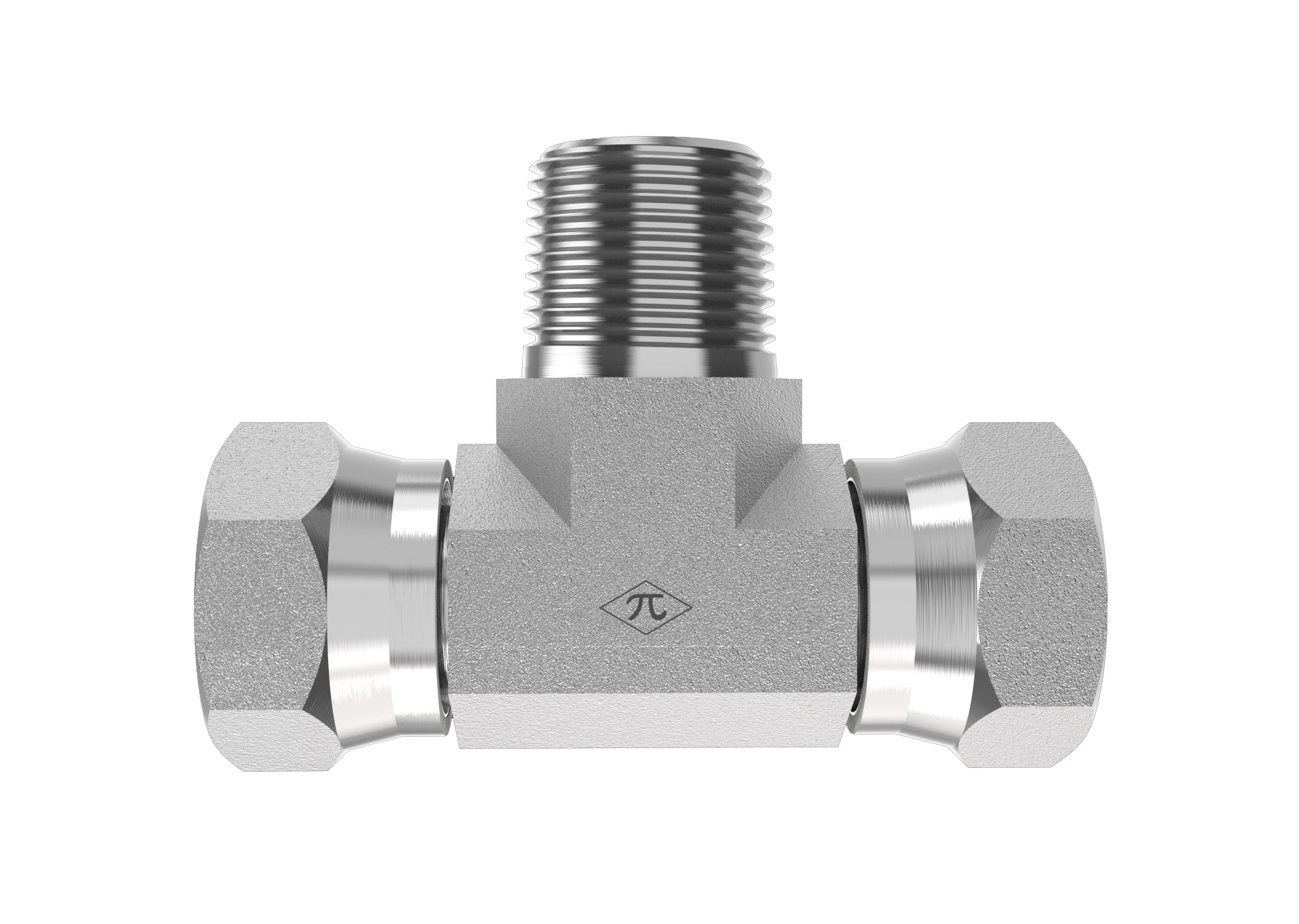

1/2" Male NPTF 30° x 3/8" Female NPSM Swivel x 3/8" Female NPSM Swivel

1601-08-06-06-FG is a 1/2" Male NPTF 30° x 3/8" Female NPSM Swivel x 3/8" Female NPSM Swivel in the 1601-FG Series. For branching pipe to two NPSM straight-threads using swivels for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Tee
$11.76
(0) Write a Review
SKU:
1601-08-06-06-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type3/8-18 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Tee
Weight0.39 lb
Cross References
Aeroquip2254-6-8S
Parker217T-8-6

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
