HGW HYDRAULICS

1601-08-12-12

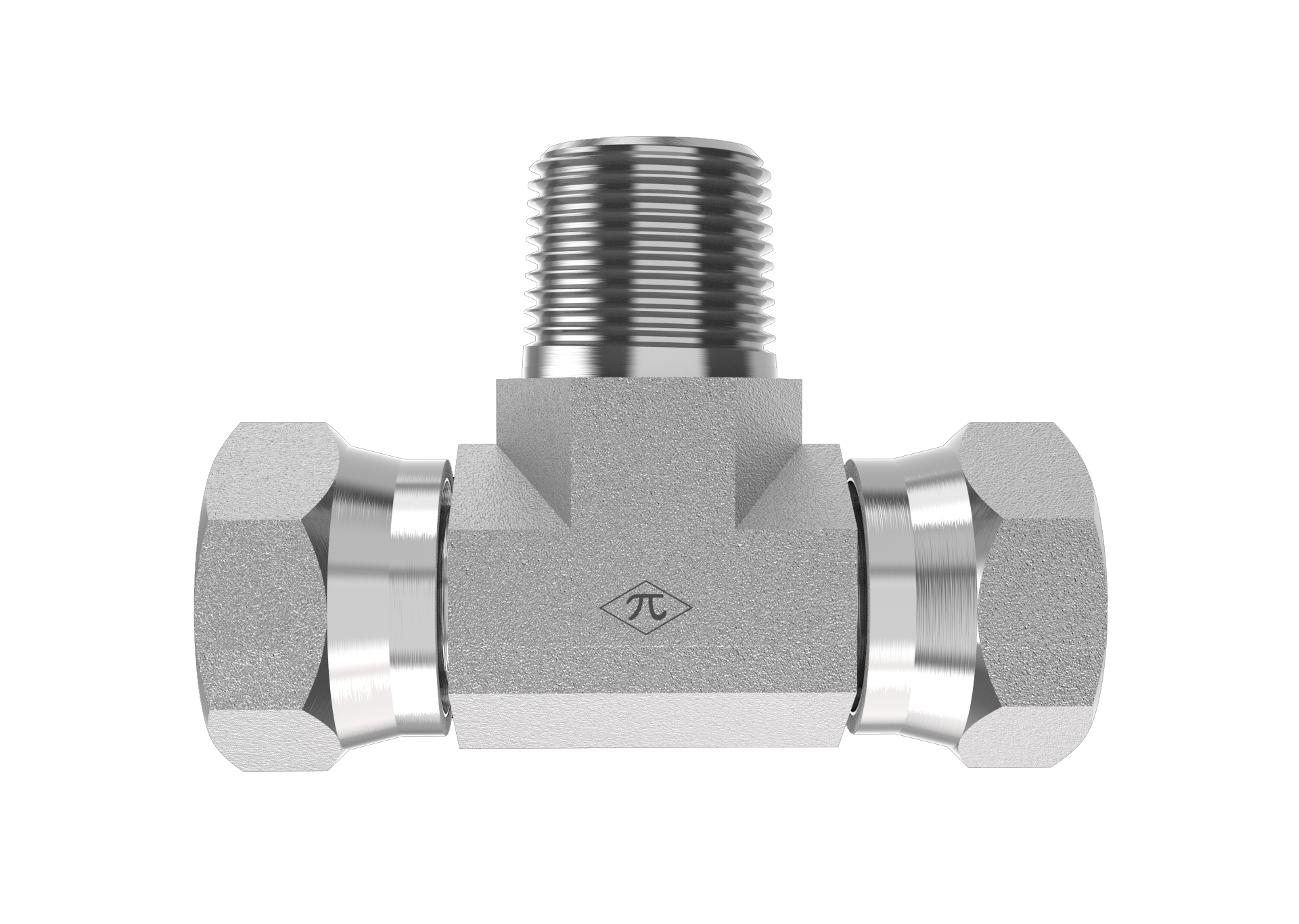

1/2" Male NPTF × 3/4" Female NPSM Swivel × 3/4" Female NPSM Swivel · Male Swivel Tee

The HGW 1601-08-12-12-FG is a male swivel tee combining 1/2" male NPTF, 3/4" female NPSM swivel, and 3/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swivel Tee
$19.48
(0) Write a Review
SKU:
1601-08-12-12

Product Details

Connection A
TypeMale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type3/4-14 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Tee
Weight0.66 lb
Cross References
Aeroquip2254-12-8S
Parker217T-8-12

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
