HGW HYDRAULICS

1601-12-16-16

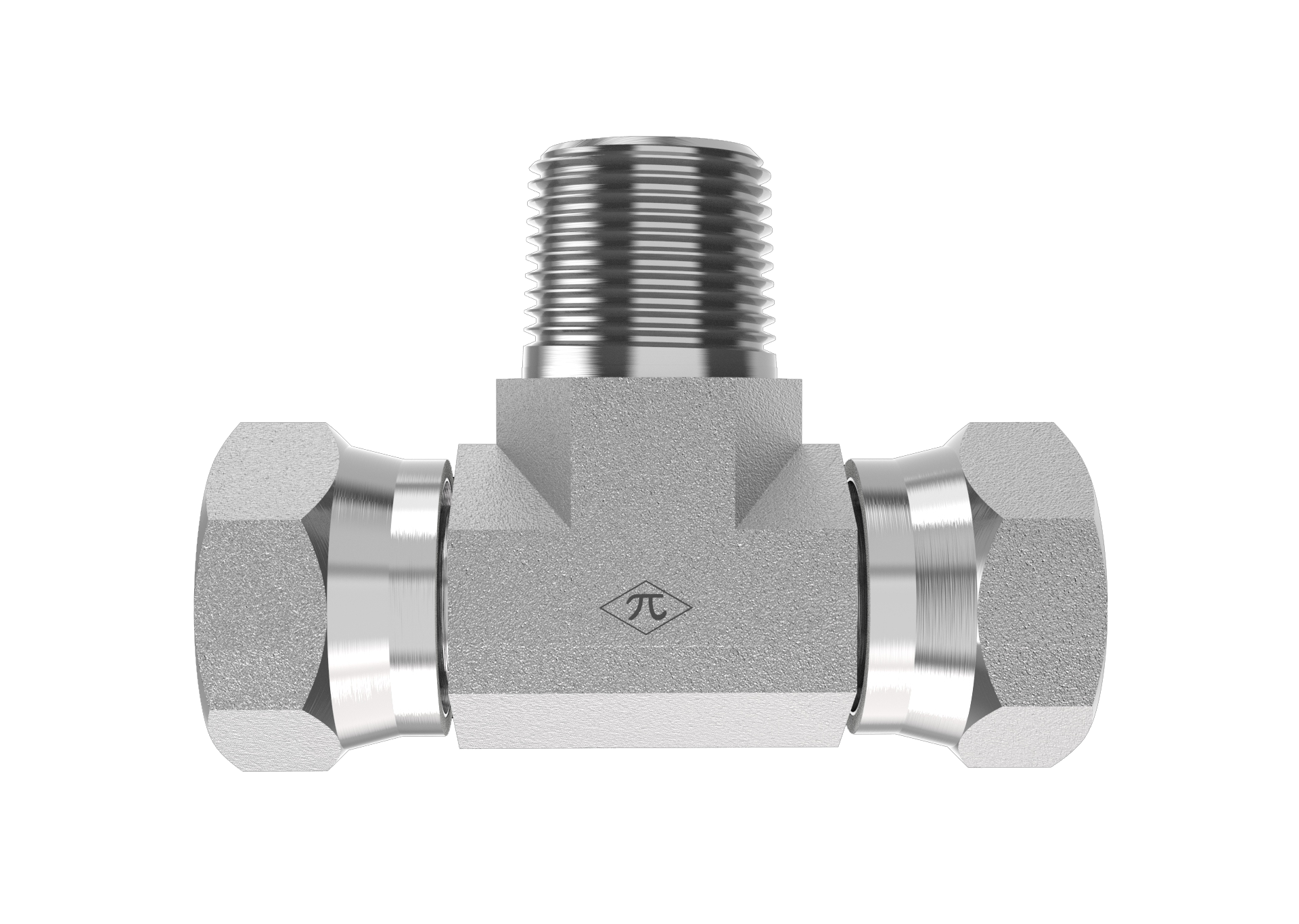

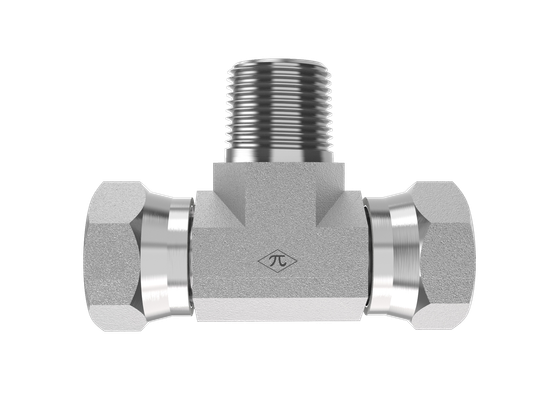

3/4" Male NPTF × 1" Female NPSM Swivel × 1" Female NPSM Swivel · Male Swivel Tee

The HGW 1601-12-16-16-FG is a male swivel tee combining 3/4" male NPTF, 1" female NPSM swivel, and 1" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swivel Tee
$78.24
(0) Write a Review
SKU:
1601-12-16-16

Product Details

Connection A
TypeMale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type3/4-14 NPTF
Connection C
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Tee
Weight1.14 lb
Cross References
Aeroquip2254-16-12S
Parker217T-12-16

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
