HGW HYDRAULICS

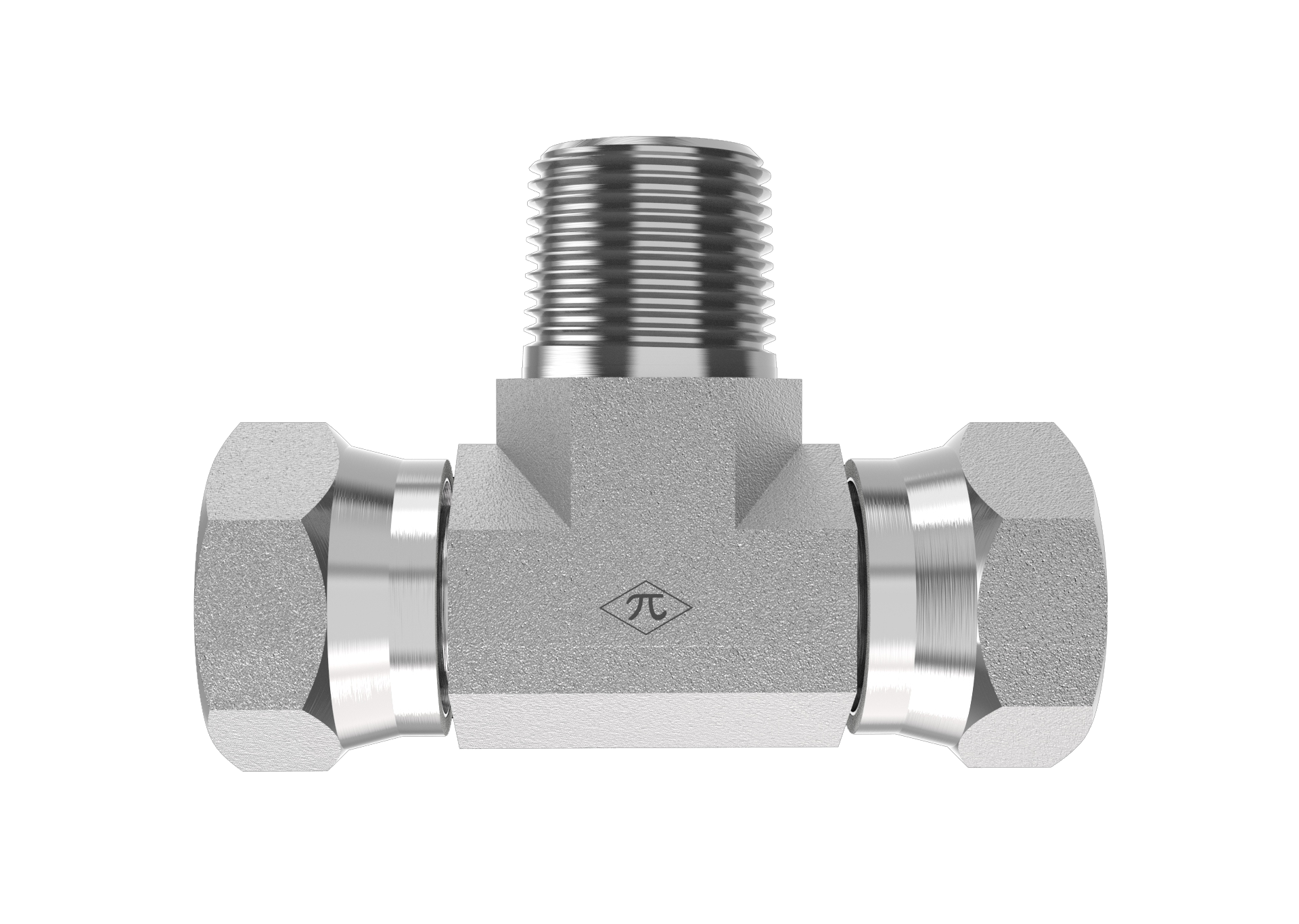

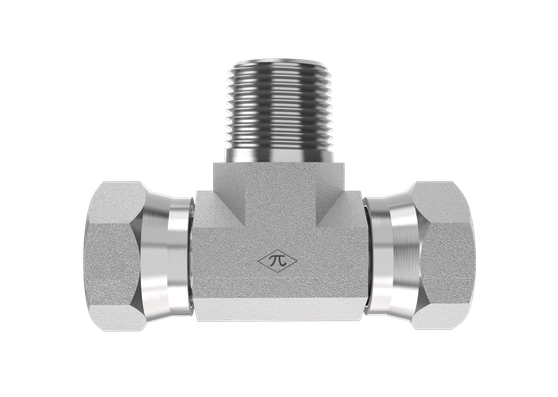

1601-16-16-16-FG

1" Male NPTF 30° x 1" Female NPSM Swivel x 1" Female NPSM Swivel

1601-16-16-16-FG is a 1" Male NPTF 30° x 1" Female NPSM Swivel x 1" Female NPSM Swivel in the 1601-FG Series. For branching pipe to two NPSM straight-threads using swivels for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Tee
$26.05
(0) Write a Review
SKU:
1601-16-16-16-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Tee
Weight1.15 lb
Cross References
Aeroquip2254-16-16S
Parker217T-16-16

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
