HGW HYDRAULICS

1602-02-02-02

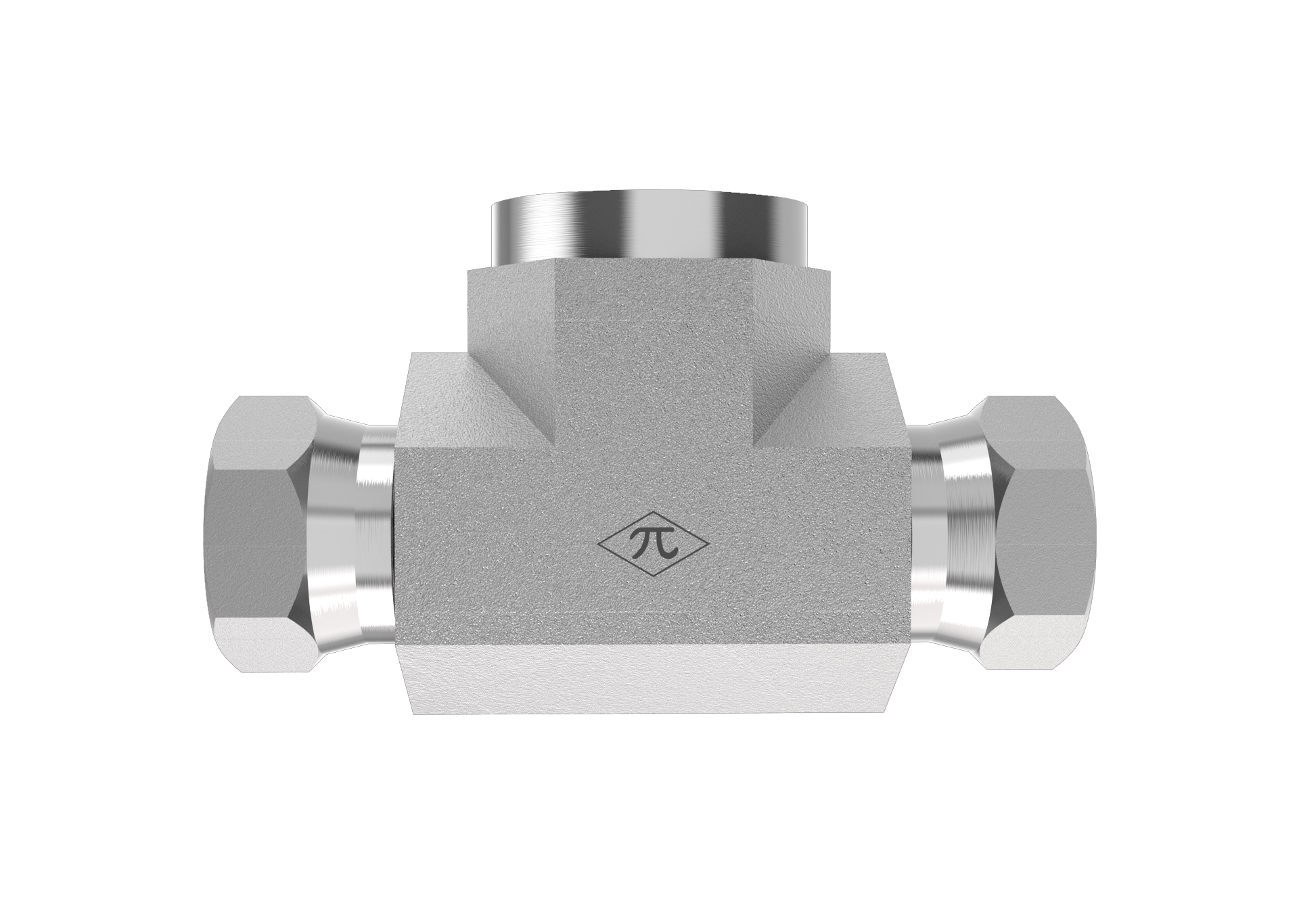

1/8" Female NPTF × 1/8" Female NPSM Swivel × 1/8" Female NPSM Swivel · Female Swivel Tee

The HGW 1602-02-02-02-FG is a female swivel tee combining 1/8" female NPTF, 1/8" female NPSM swivel, and 1/8" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Tee
$8.40
(0) Write a Review
SKU:
1602-02-02-02

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/8-27 NPTF
Connection C
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/8-27 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Tee
Weight0.13 lb
Cross References
Aeroquip2253-2-2S
Parker227T-2-2

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
