HGW HYDRAULICS

1602-04-04-04-FG

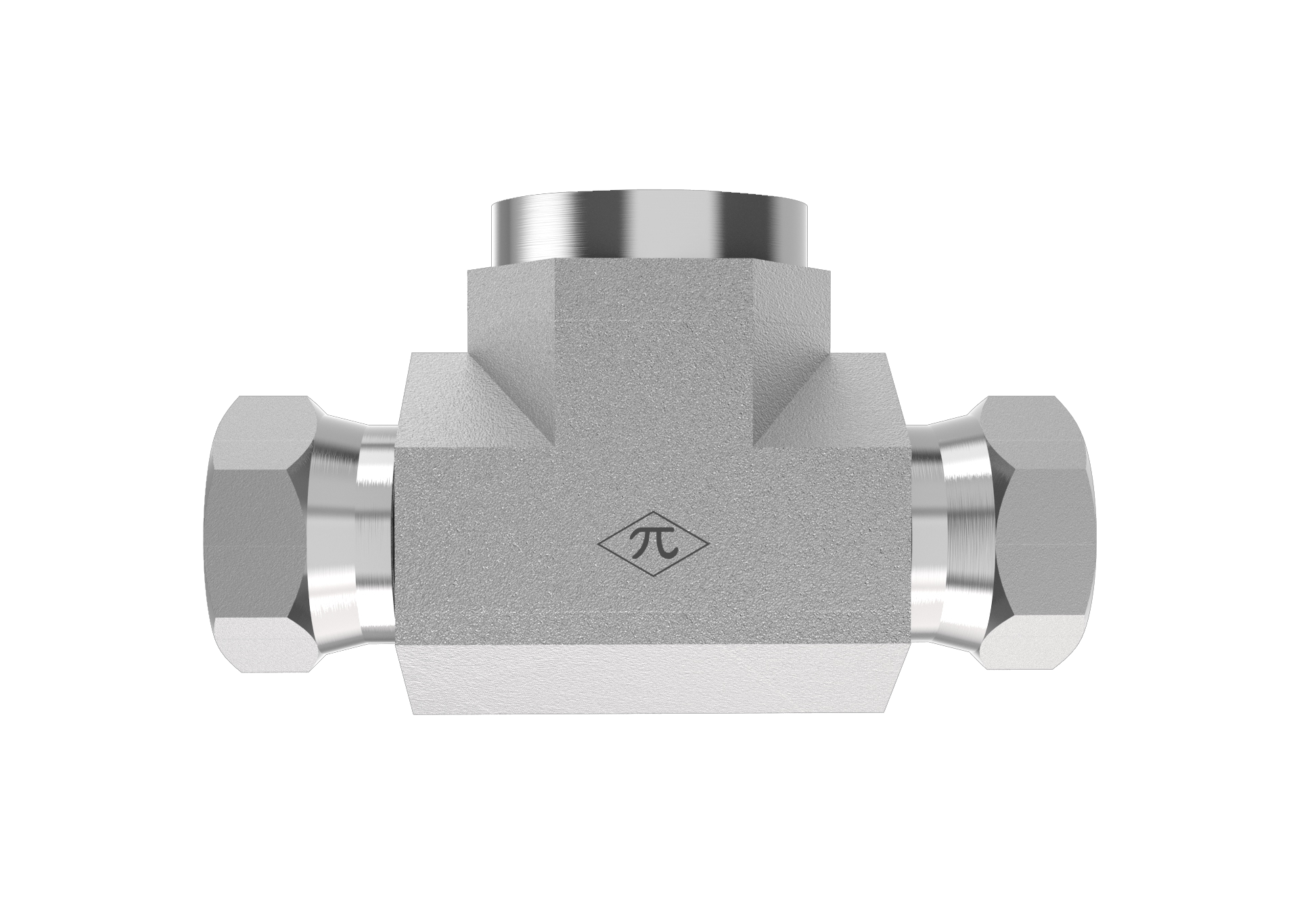

1/4" Female NPTF x 1/4" Female NPSM Swivel x 1/4" Female NPSM Swivel

1602-04-04-04-FG is a 1/4" Female NPTF x 1/4" Female NPSM Swivel x 1/4" Female NPSM Swivel in the 1602-FG Series. For branching pipe to two NPSM straight-threads using swivels for alignment without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Swivel Tee
$17.64
(0) Write a Review
SKU:
1602-04-04-04-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J514
Thread Type1/4-18 NPTF
Connection C
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J514
Thread Type1/4-18 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Tee
Weight0.25 lb
Cross References
Aeroquip2253-4-4S
Parker227T-4-4

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
