HGW HYDRAULICS

1602-06-04-04-FG

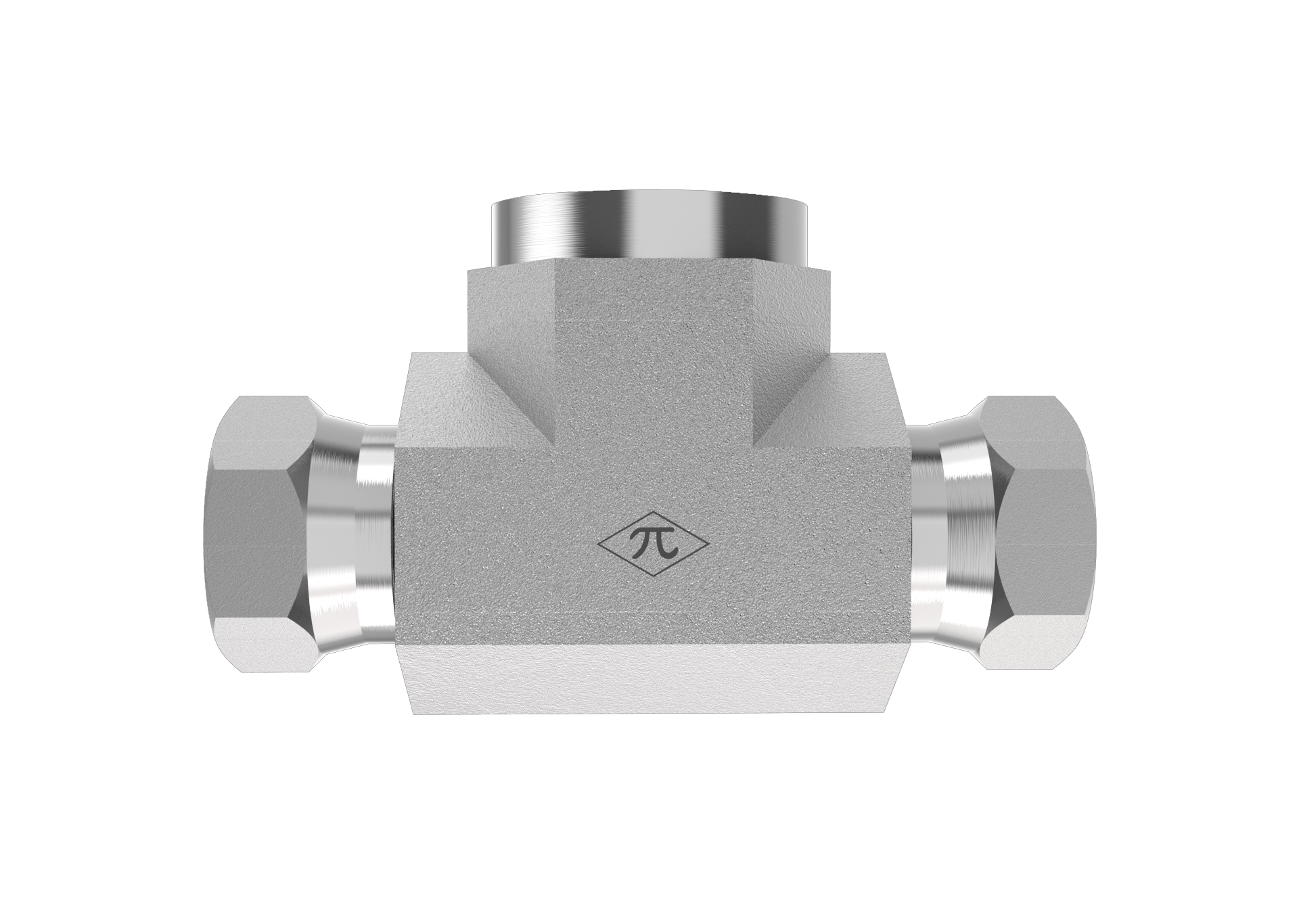

3/8" Female NPTF x 1/4" Female NPSM Swivel x 1/4" Female NPSM Swivel

1602-06-04-04-FG is a 3/8" Female NPTF x 1/4" Female NPSM Swivel x 1/4" Female NPSM Swivel in the 1602-FG Series. For branching pipe to two NPSM straight-threads using swivels for alignment without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Swivel Tee
$26.65
(0) Write a Review
SKU:
1602-06-04-04-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J514
Thread Type3/8-18 NPTF
Connection C
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J514
Thread Type1/4-18 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Tee
Weight0.33 lb
Cross References
Aeroquip2253-4-6S
Parker227T-6-4

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
