HGW HYDRAULICS

1602-08-06-06

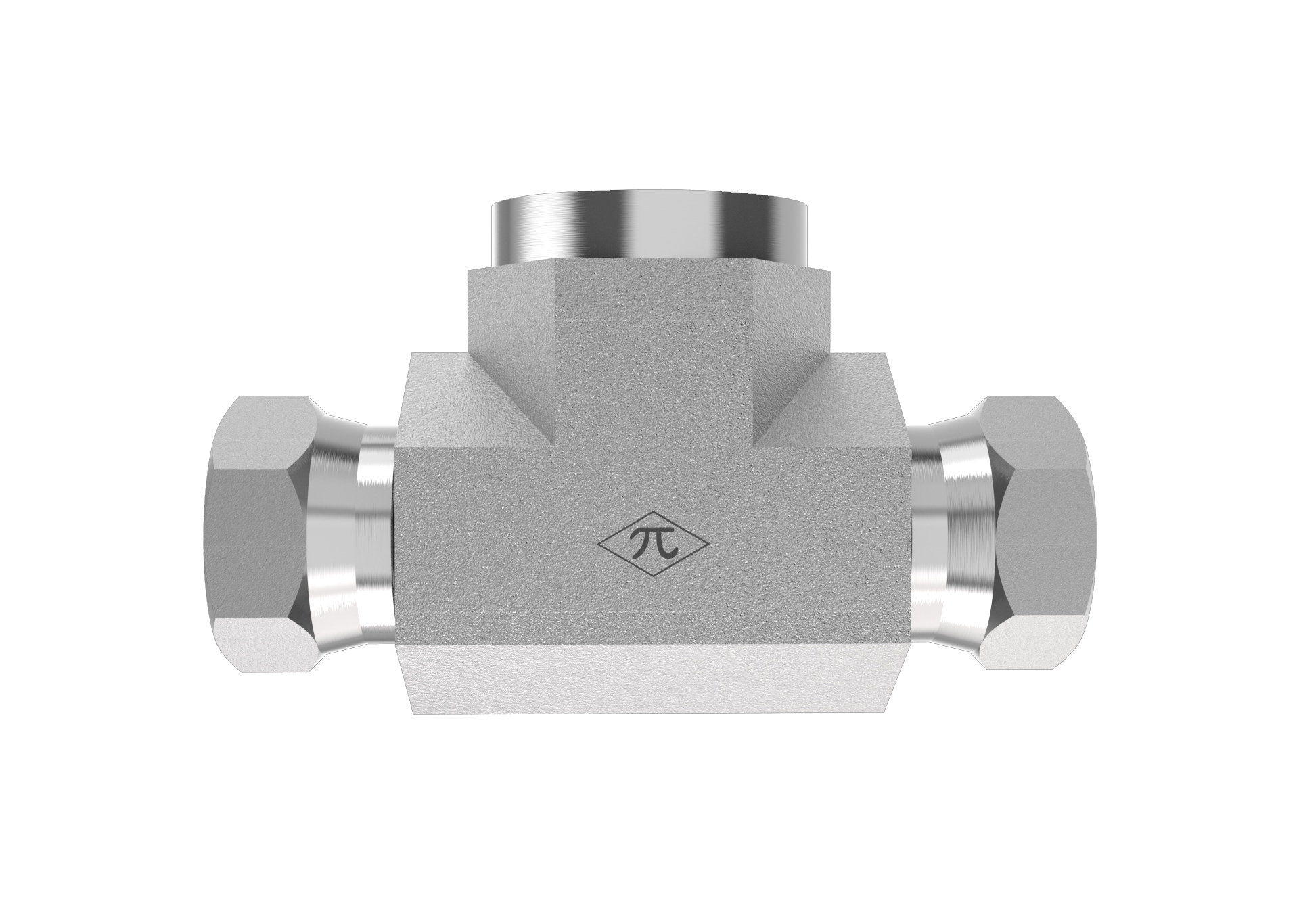

1/2" Female NPTF × 3/8" Female NPSM Swivel × 3/8" Female NPSM Swivel · Female Swivel Tee

The HGW 1602-08-06-06-FG is a female swivel tee combining 1/2" female NPTF, 3/8" female NPSM swivel, and 3/8" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Tee
$29.09
(0) Write a Review
SKU:
1602-08-06-06

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type3/8-18 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Tee
Weight0.53 lb
Cross References
Aeroquip2253-6-8S
Parker227T-8-6

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
