HGW HYDRAULICS

1602-12-12-12

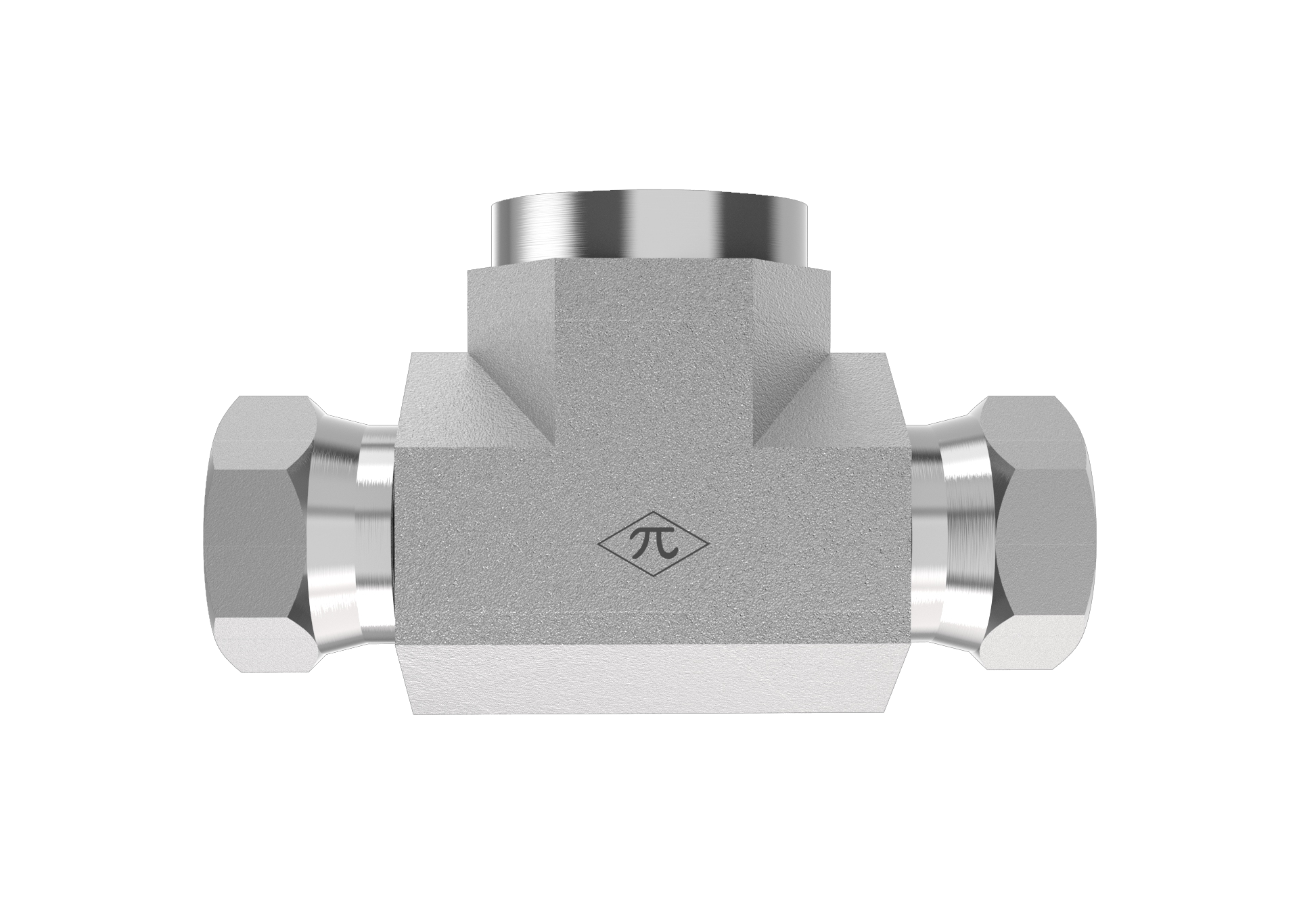

3/4" Female NPTF × 3/4" Female NPSM Swivel × 3/4" Female NPSM Swivel · Female Swivel Tee

The HGW 1602-12-12-12-FG is a female swivel tee combining 3/4" female NPTF, 3/4" female NPSM swivel, and 3/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Tee
$52.09
(0) Write a Review
SKU:
1602-12-12-12

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type3/4-14 NPTF
Connection C
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type3/4-14 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Tee
Weight0.98 lb
Cross References
Aeroquip2253-12-12S
Parker227T-12-12

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
