HGW HYDRAULICS

1602-16-16-16

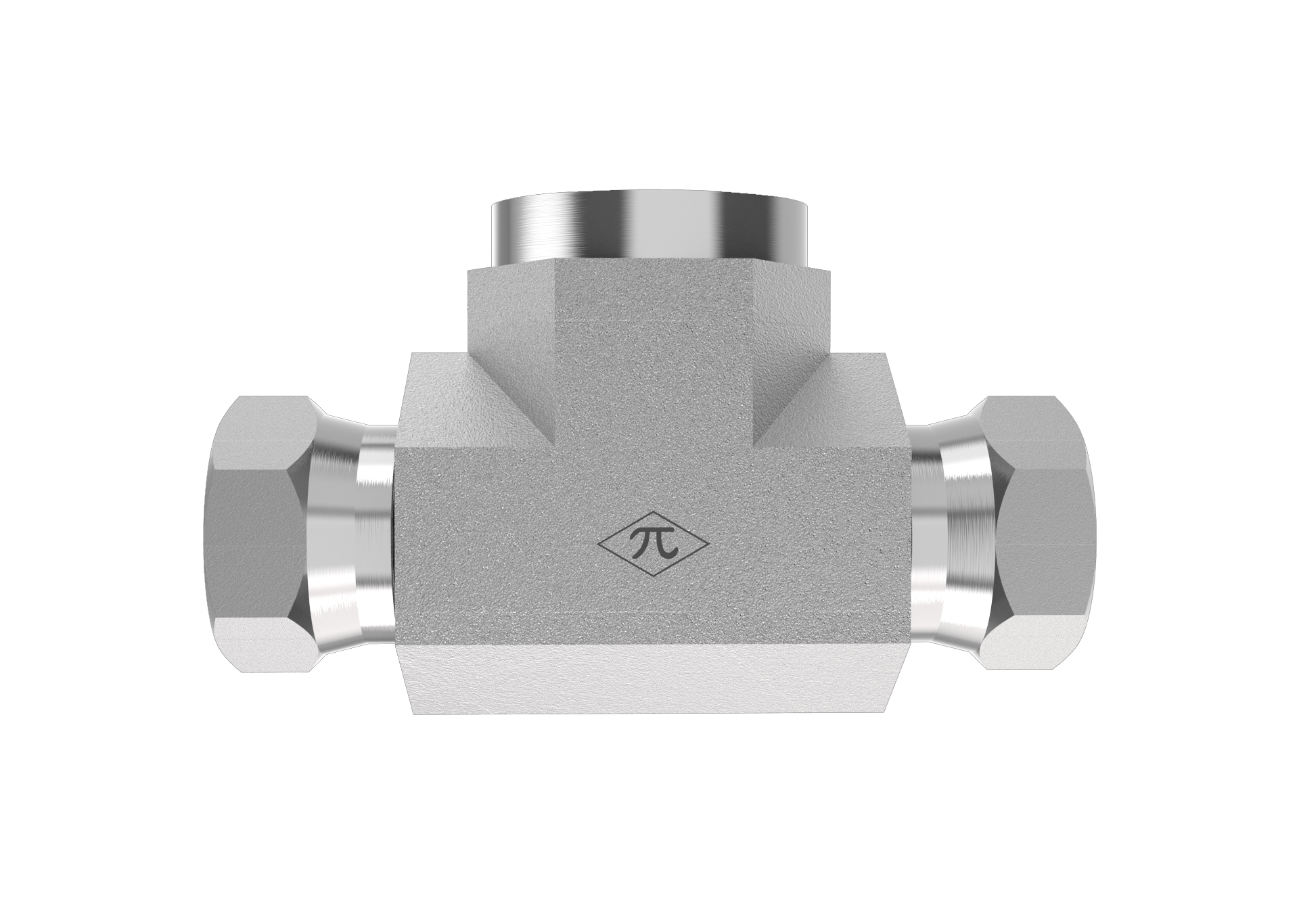

1" Female NPTF × 1" Female NPSM Swivel × 1" Female NPSM Swivel · Female Swivel Tee

The HGW 1602-16-16-16-FG is a female swivel tee combining 1" female NPTF, 1" female NPSM swivel, and 1" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Tee
$108.21
(0) Write a Review
SKU:
1602-16-16-16

Product Details

Connection A
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Tee
Weight1.68 lb
Cross References
Aeroquip2253-16-16S
Parker227T-16-16

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
