HGW HYDRAULICS

1603-02-02-02-FG

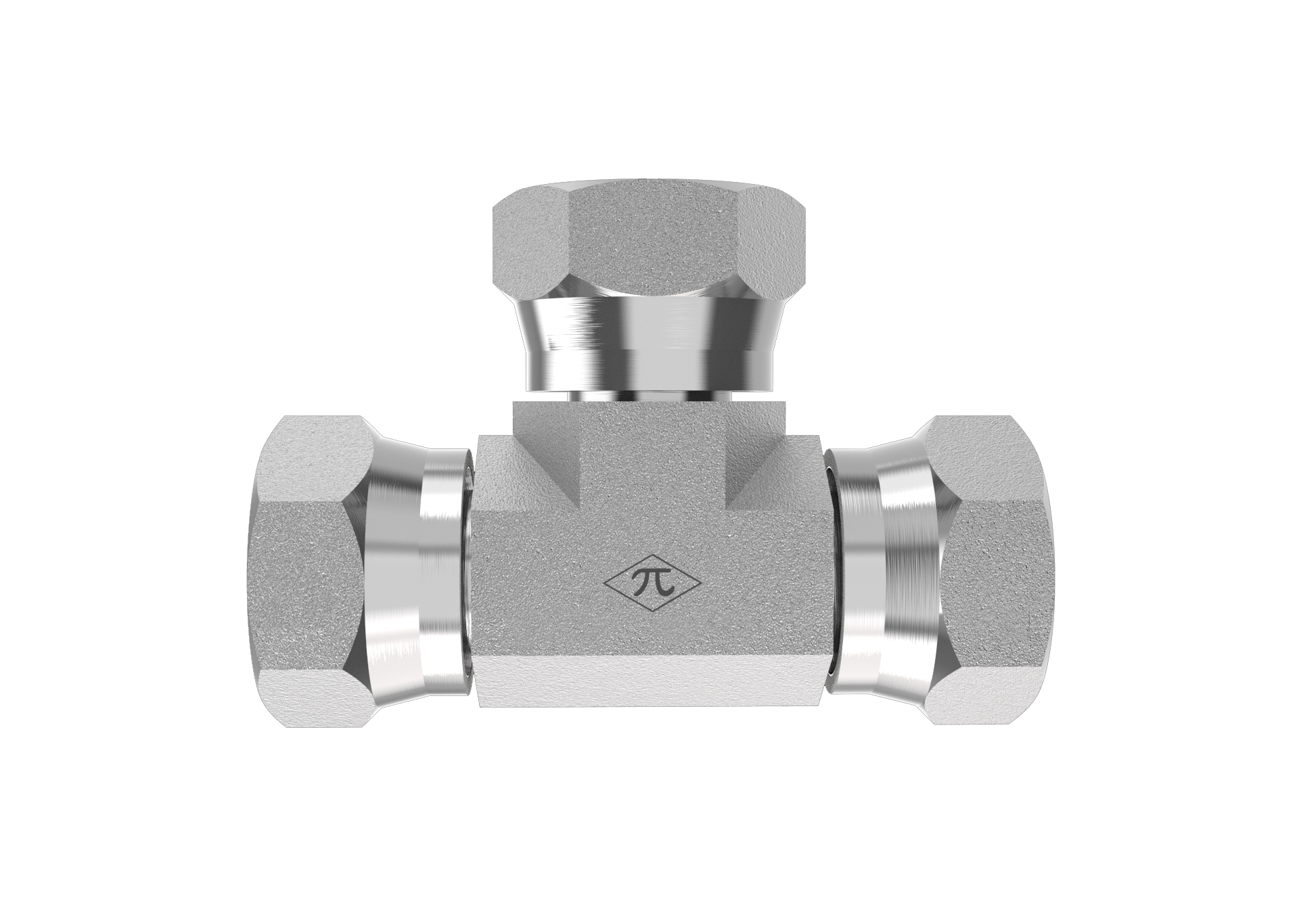

1/8" Female NPSM Swivel x 1/8" Female NPSM Swivel x 1/8" Female NPSM Swivel

1603-02-02-02-FG is a 1/8" Female NPSM Swivel x 1/8" Female NPSM Swivel x 1/8" Female NPSM Swivel in the 1603-FG Series. For joining three NPSM straight-thread connections in a tee configuration using swivels for alignment.

  • Steel
  • Trivalent Zinc
  • Swivel Union Tee
$21.73
(0) Write a Review
SKU:
1603-02-02-02-FG

Product Details

Connection A
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/8-27 NPSM
Connection B
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/8-27 NPSM
Connection C
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/8-27 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Union Tee
Weight0.10 lb
Cross References
Aeroquip2255-2-2S
Parker077T-2

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
