HGW HYDRAULICS

1603-06-06-06-SS

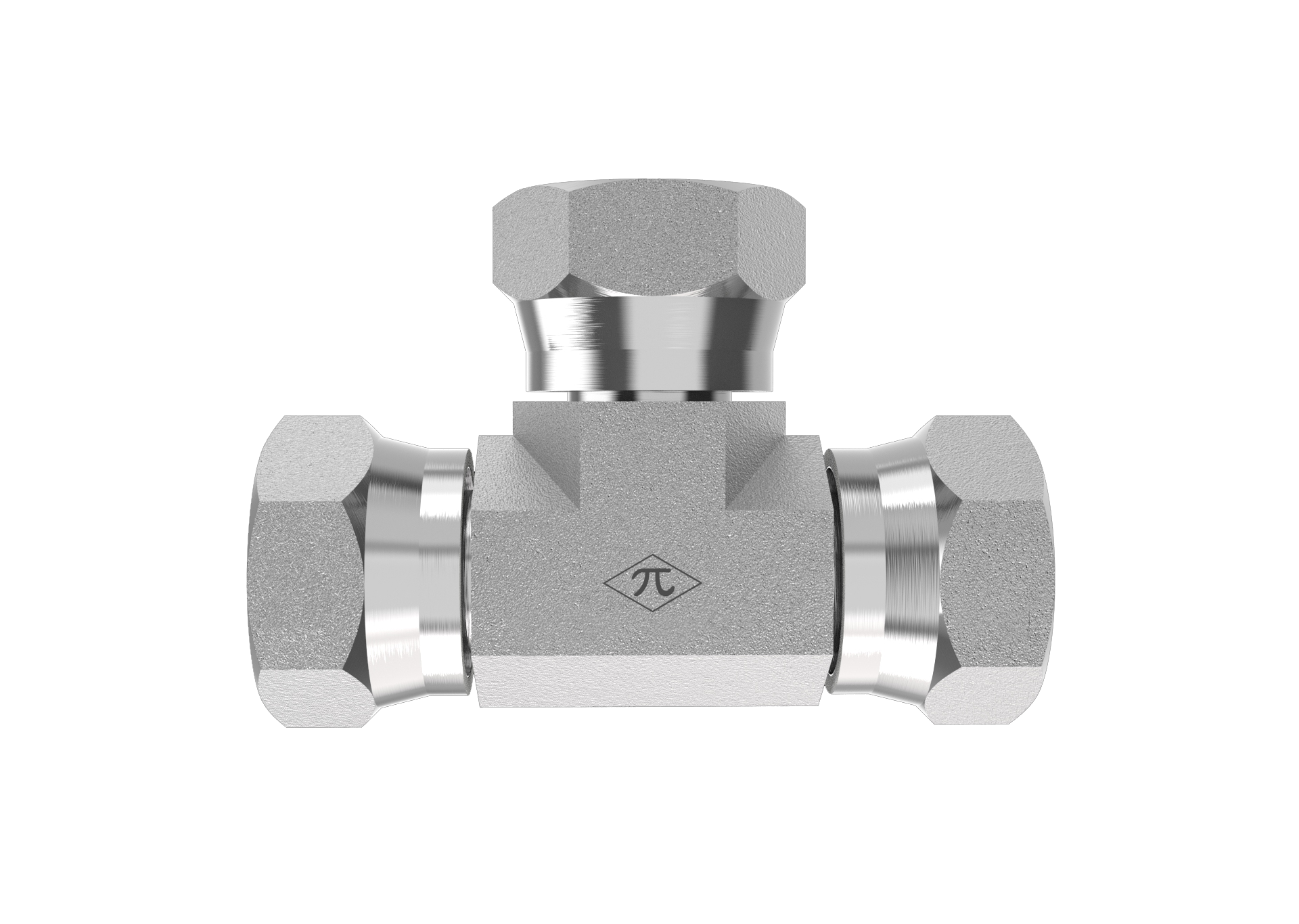

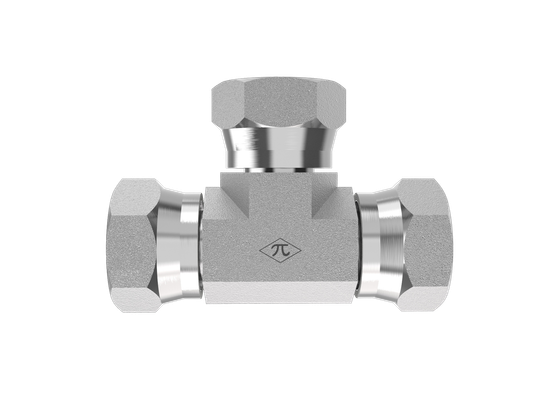

3/8" Female NPSM Swivel x 3/8" Female NPSM Swivel x 3/8" Female NPSM Swivel

1603-06-06-06-SS is a 3/8" Female NPSM Swivel x 3/8" Female NPSM Swivel x 3/8" Female NPSM Swivel in the 1603-FG Series. For joining three NPSM straight-thread connections in a tee configuration using swivels for alignment.

  • Stainless Steel
  • Swivel Union Tee
  • None
$150.82
(0) Write a Review
SKU:
1603-06-06-06-SS

Product Details

Connection A
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type3/8-18 NPSM
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type3/8-18 NPSM
Connection C
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type3/8-18 NPSM
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Union Tee
Weight0.34 lb
PlatingNone
Cross References
Aeroquip259-2255-6-6
Parker077T-6-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
