HGW HYDRAULICS

1603-12-12-12-FG

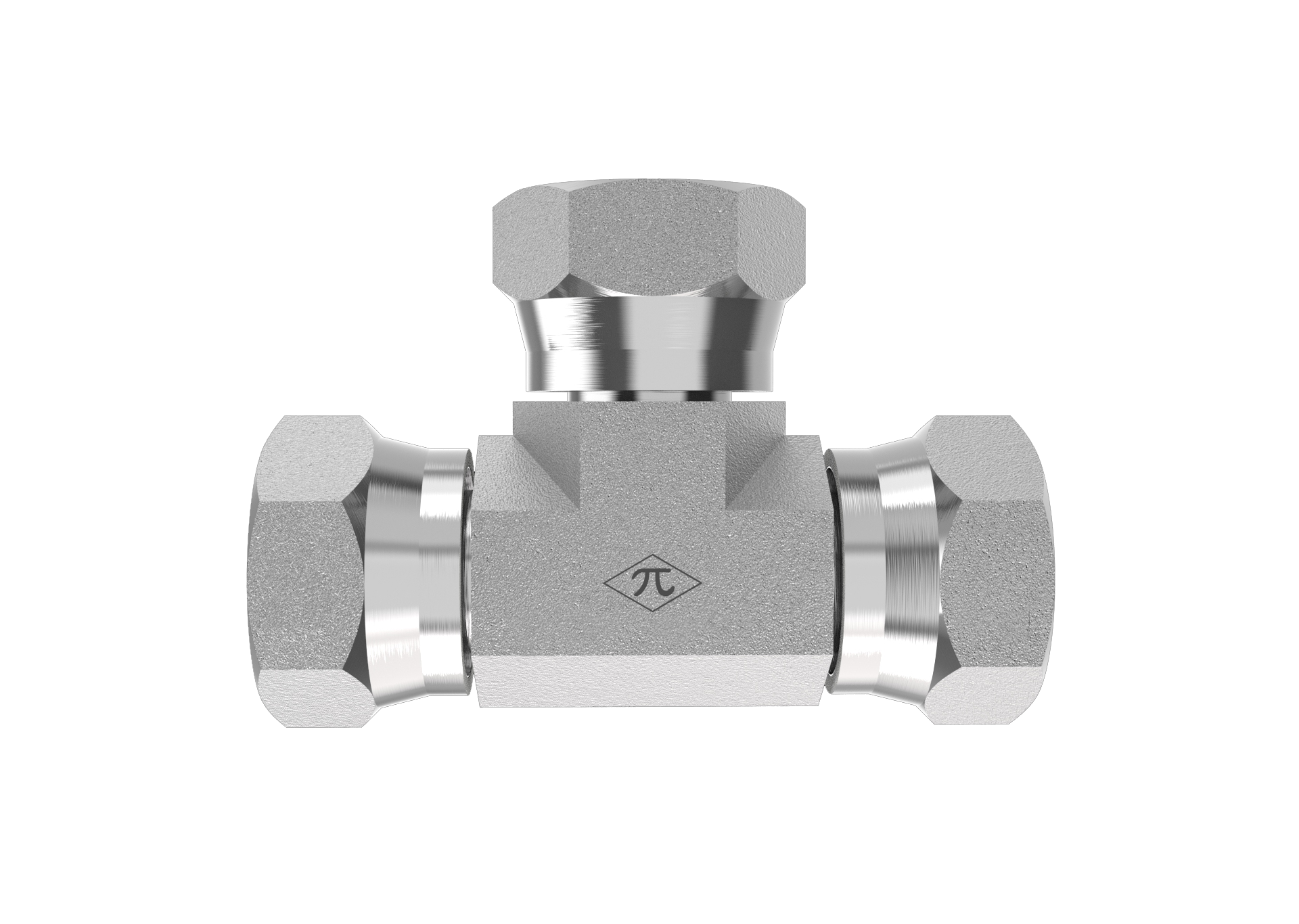

3/4" Female NPSM Swivel x 3/4" Female NPSM Swivel x 3/4" Female NPSM Swivel

1603-12-12-12-FG is a 3/4" Female NPSM Swivel x 3/4" Female NPSM Swivel x 3/4" Female NPSM Swivel in the 1603-FG Series. For joining three NPSM straight-thread connections in a tee configuration using swivels for alignment.

  • Steel
  • Trivalent Zinc
  • Swivel Union Tee
$21.25
(0) Write a Review
SKU:
1603-12-12-12-FG

Product Details

Connection A
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type3/4-14 NPSM
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type3/4-14 NPSM
Connection C
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type3/4-14 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Union Tee
Weight0.73 lb
Cross References
Aeroquip2255-12-12S
Parker077T-12

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
