1603-20-20-20-FG

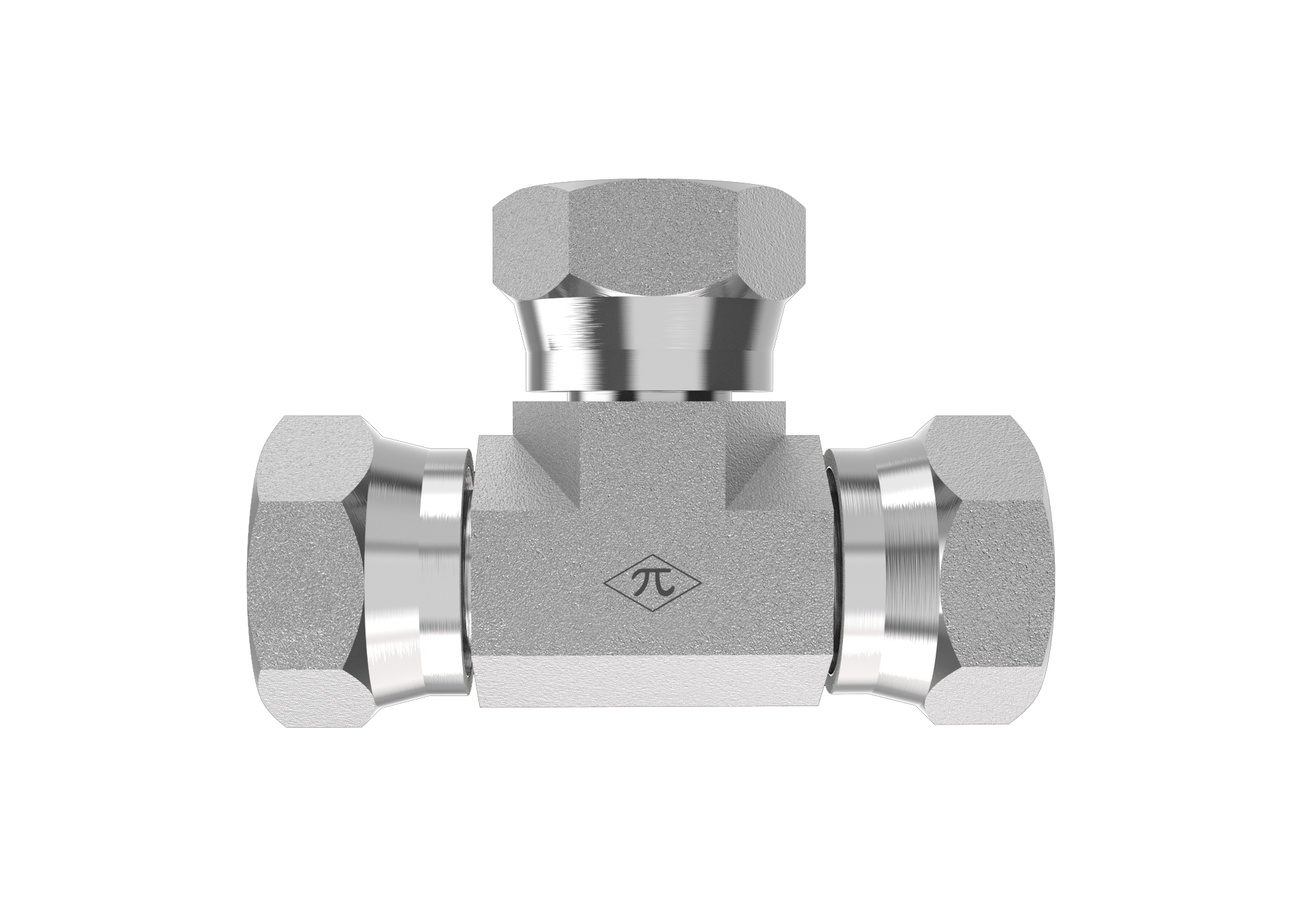

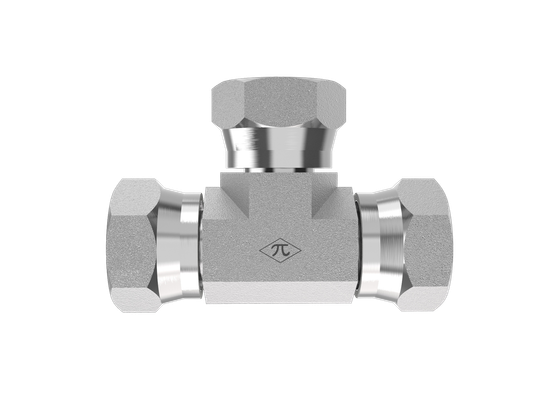

1-1/4" Female NPSM Swivel x 1-1/4" Female NPSM Swivel x 1-1/4" Female NPSM Swivel

1603-20-20-20-FG is a 1-1/4" Female NPSM Swivel x 1-1/4" Female NPSM Swivel x 1-1/4" Female NPSM Swivel in the 1603-FG Series. For joining three NPSM straight-thread connections in a tee configuration using swivels for alignment.

  • Steel
  • Trivalent Zinc
  • Swivel Union Tee
$167.79
(0) Write a Review
SKU:
1603-20-20-20-FG

Product Details

Connection A
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J514
Thread Type1-1/4-11-1/2 NPSM
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J514
Thread Type1-1/4-11-1/2 NPSM
Connection C
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J514
Thread Type1-1/4-11-1/2 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Union Tee
Weight2.11 lb
Cross References
Aeroquip2255-20-20S
Parker077T-20

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
