HGW HYDRAULICS

1603-24-24-24-FG

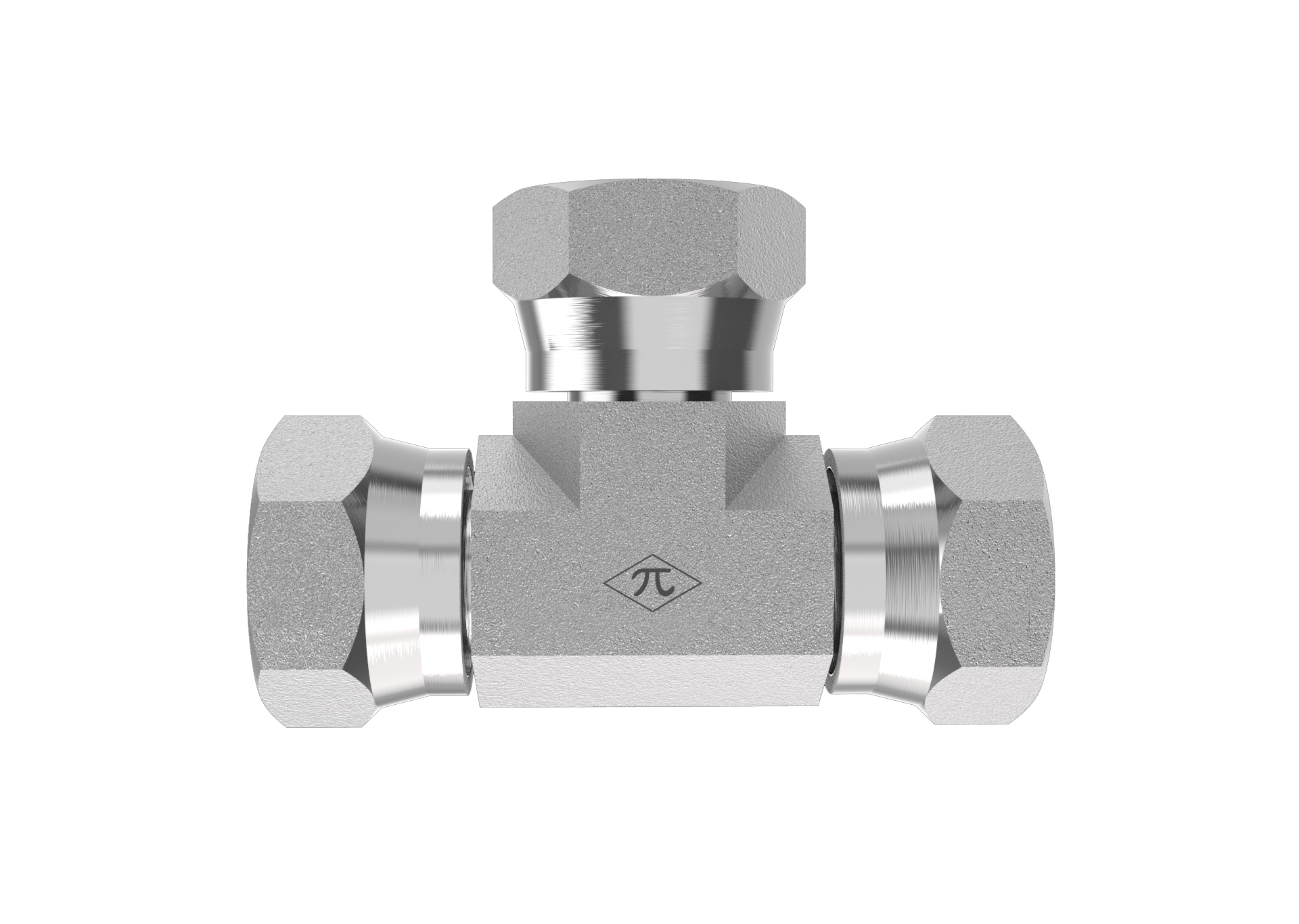

1-1/2" Female NPSM Swivel x 1-1/2" Female NPSM Swivel x 1-1/2" Female NPSM Swivel

1603-24-24-24-FG is a 1-1/2" Female NPSM Swivel x 1-1/2" Female NPSM Swivel x 1-1/2" Female NPSM Swivel in the 1603-FG Series. For joining three NPSM straight-thread connections in a tee configuration using swivels for alignment.

  • Steel
  • Trivalent Zinc
  • Swivel Union Tee
$391.08
(0) Write a Review
SKU:
1603-24-24-24-FG

Product Details

Connection A
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J514
Thread Type1-1/2-11-1/2 NPSM
Connection B
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J514
Thread Type1-1/2-11-1/2 NPSM
Connection C
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J514
Thread Type1-1/2-11-1/2 NPSM
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Union Tee
Weight2.67 lb
Cross References
Aeroquip2255-24-24S
Parker077T-24

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
