HGW HYDRAULICS

1700-08-12-SS

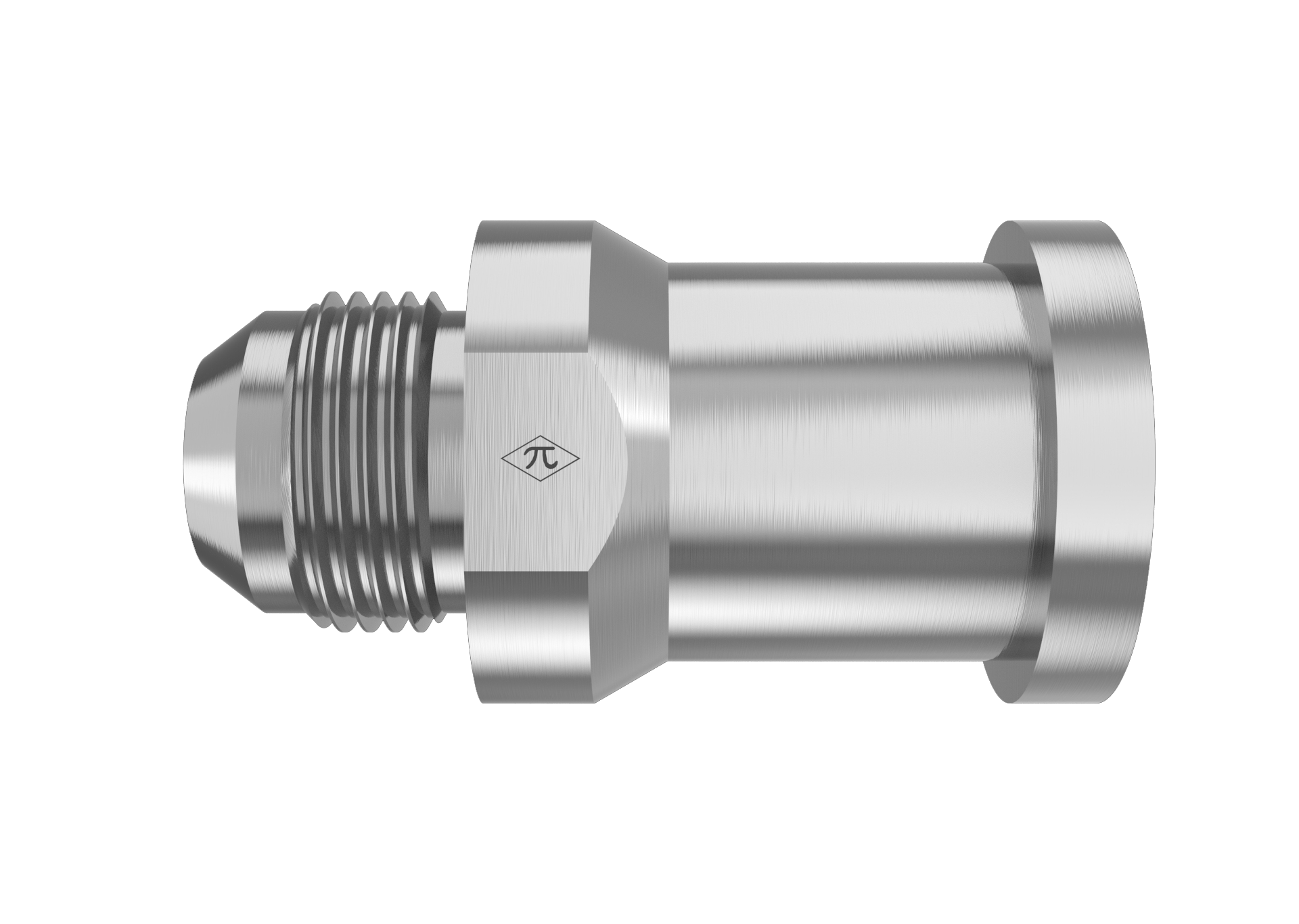

1/2" Male JIC x 3/4" Split Flange Head

1700-08-12-SS is a 1/2" Male JIC x 3/4" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Stainless Steel
  • None
  • Male Adapter
$139.20
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeSplit Flange Head
Size3/4"
StandardSAE J518
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeMale Adapter
Weight0.66 lb
Cross References
Aeroquip259-500025-12-8
Parker8-12 XHQ1-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
