HGW HYDRAULICS

1700-10-10-SS

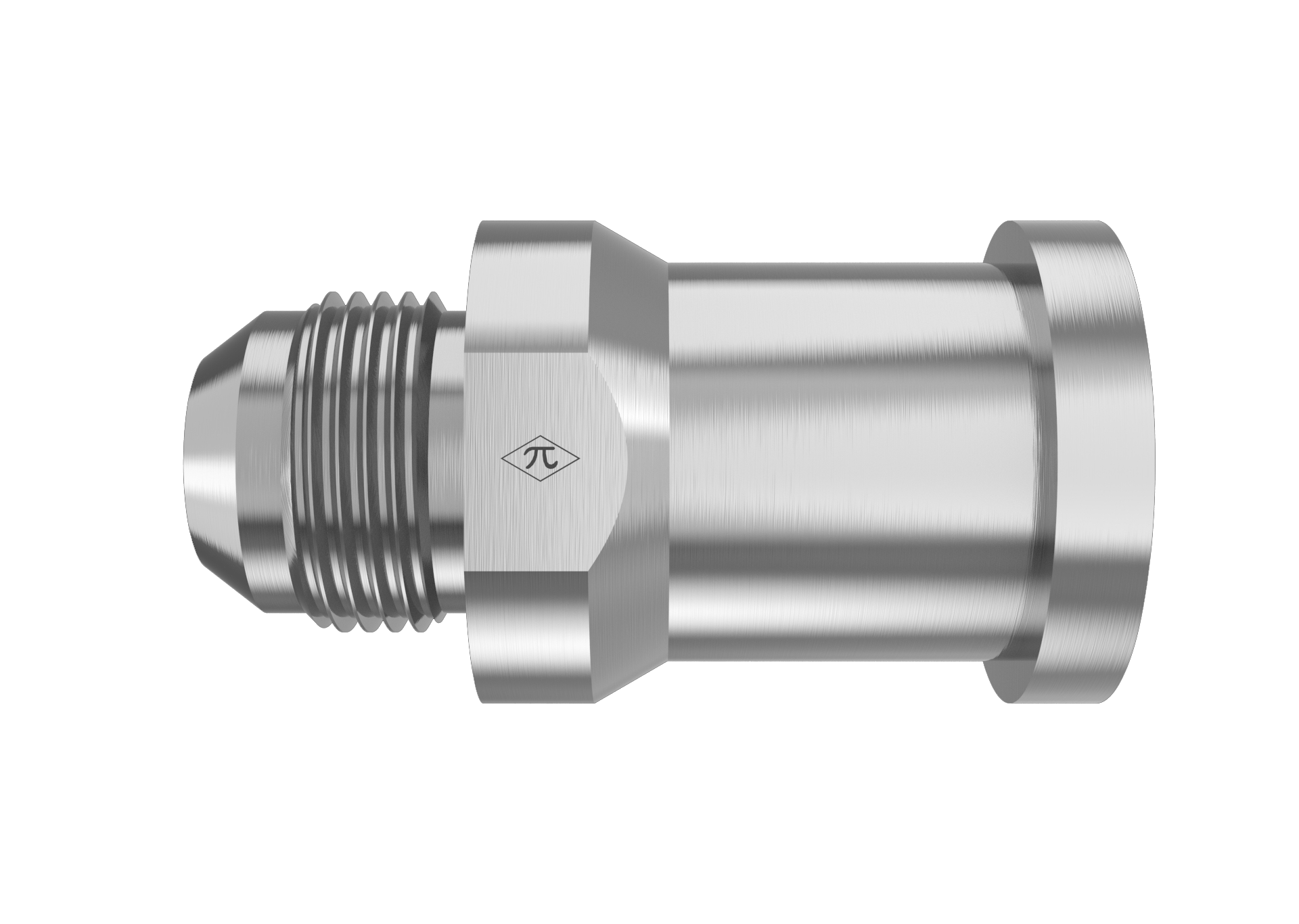

5/8" Male JIC x 5/8" Split Flange Head

1700-10-10-SS is a 5/8" Male JIC x 5/8" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Stainless Steel
  • None
  • Male Adapter
$163.24
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type7/8-14 UNF
Connection B
TypeSplit Flange Head
Size5/8"
StandardSAE J518
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeMale Adapter
Weight0.38 lb
Cross References
Aeroquip259-500025-10
Parker10 XHQ1-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
