HGW HYDRAULICS

1700-10-10

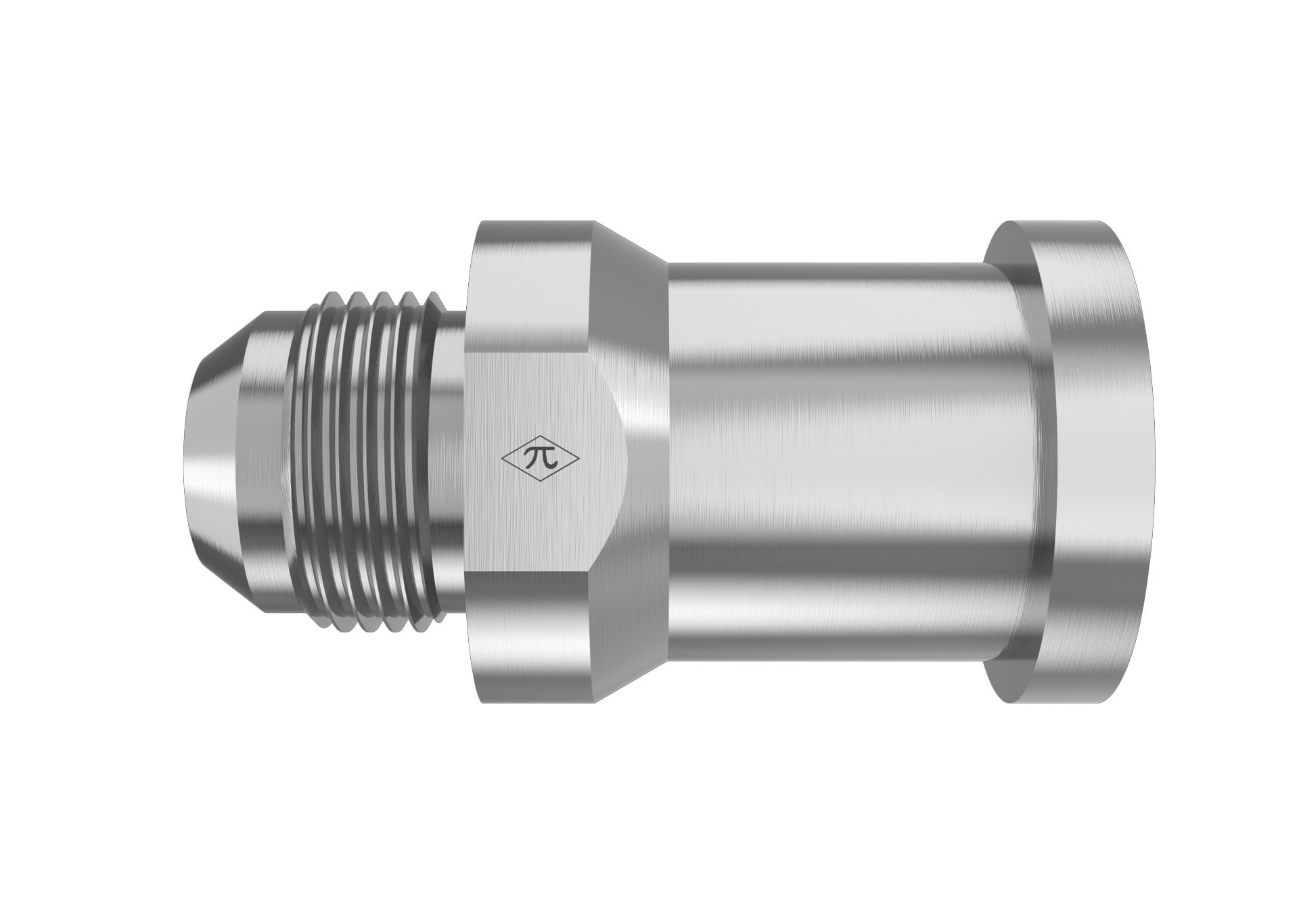

5/8" Male JIC x 5/8" Split Flange Head

1700-10-10 is a 5/8" Male JIC x 5/8" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$19.76
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type7/8-14 UNF
Connection B
TypeSplit Flange Head
Size5/8"
StandardSAE J518
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight0.37 lb
Cross References
Aeroquip500025-10S
Parker10 XHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
