HGW HYDRAULICS

1700-12-10

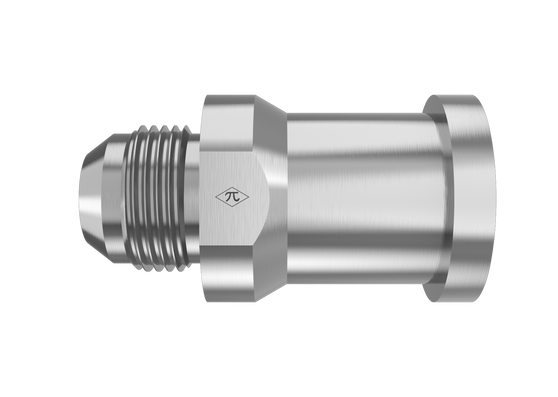

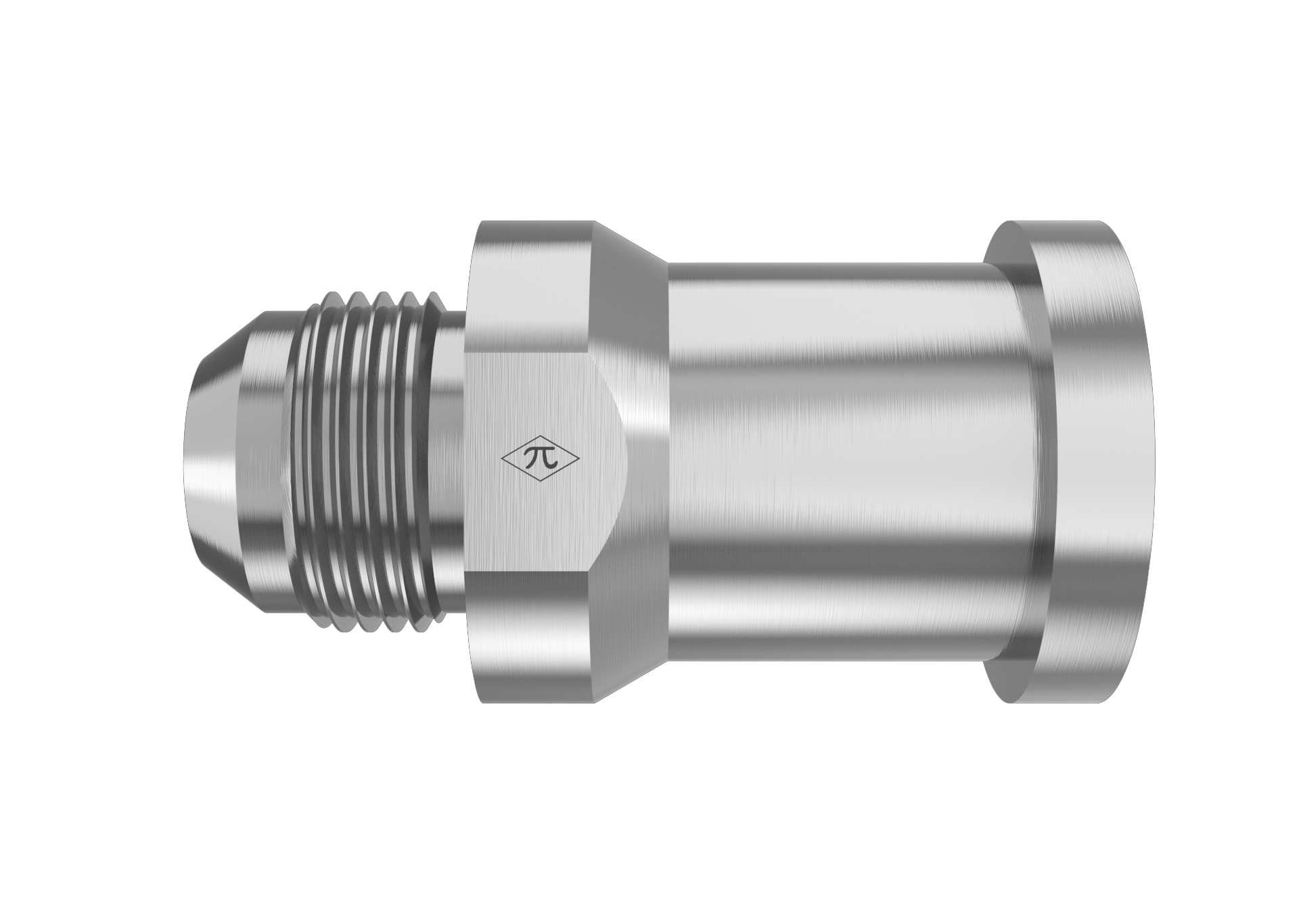

3/4" Male JIC x 5/8" Split Flange Head

1700-12-10 is a 3/4" Male JIC x 5/8" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$19.21
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeSplit Flange Head
Size5/8"
StandardSAE J518
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight0.59 lb
Cross References
Aeroquip500025-10-12S
Parker12-10 XHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
