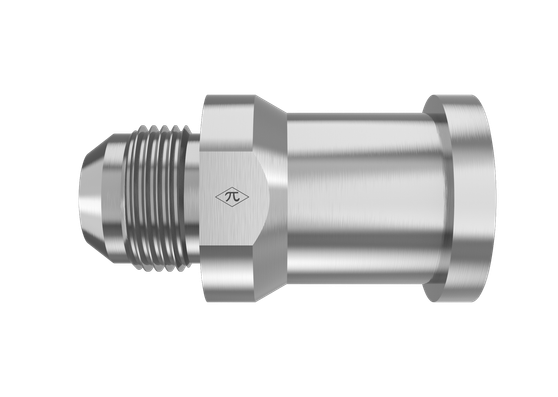

Google Merchant product image

HGW HYDRAULICS

1700-12-20-SS

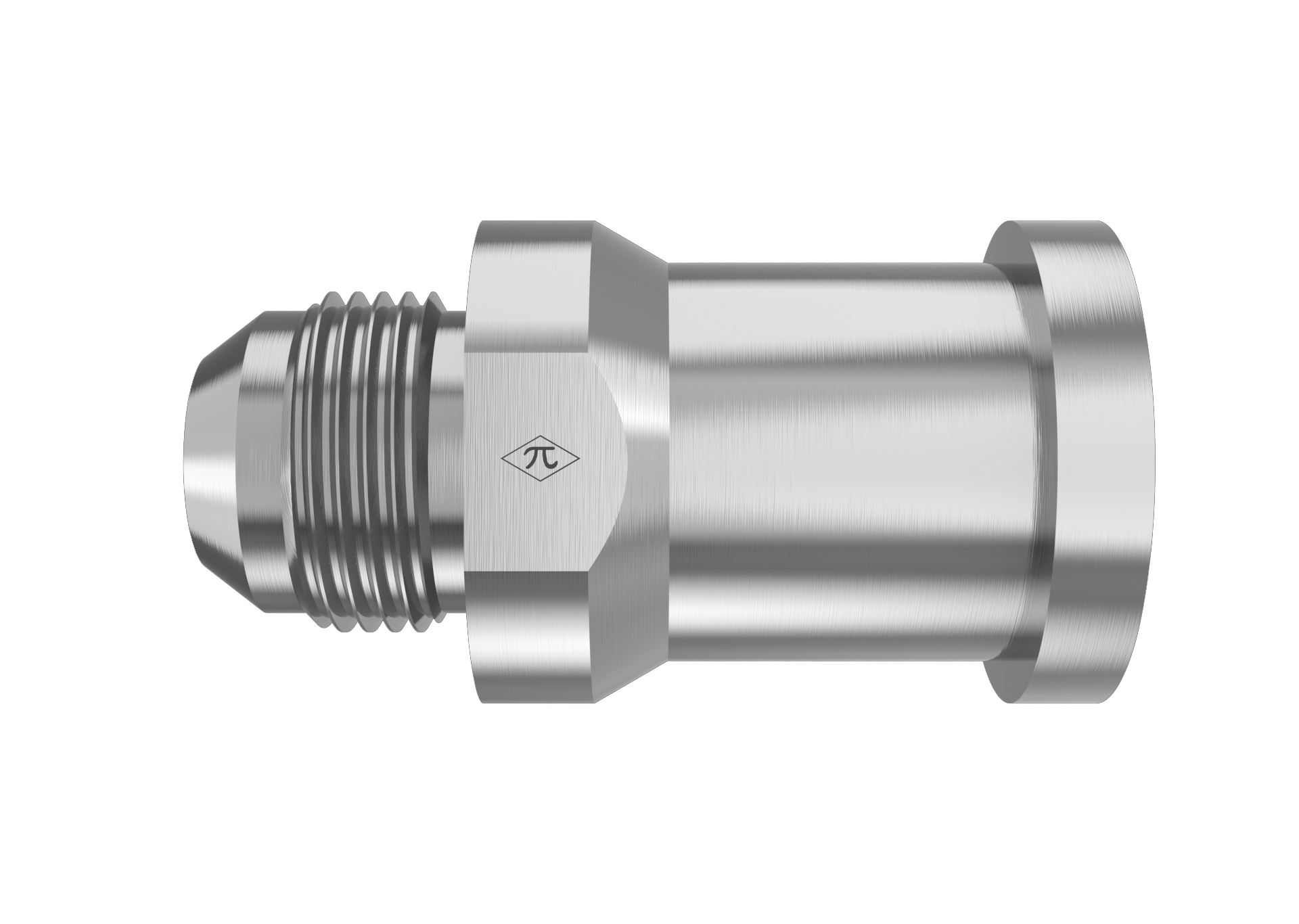

3/4" Male JIC x 1-1/4" Split Flange Head

1700-12-20-SS is a 3/4" Male JIC x 1-1/4" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Stainless Steel
  • None
  • Male Adapter
$364.35
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeSplit Flange Head
Size1-1/4"
StandardSAE J518
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeMale Adapter
Weight1.02 lb
Cross References
Aeroquip259-500025-20-12
Parker12-20 XHQ1-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
