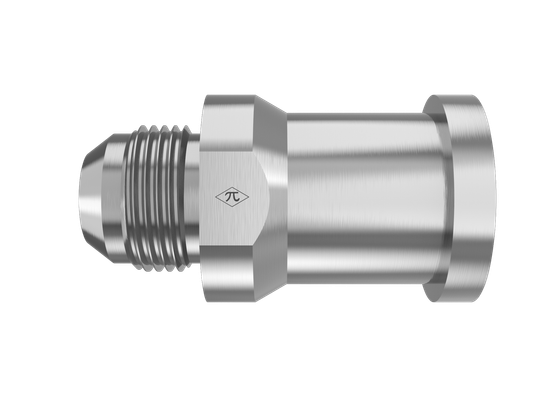

Google Merchant product image

HGW HYDRAULICS

1700-12-24

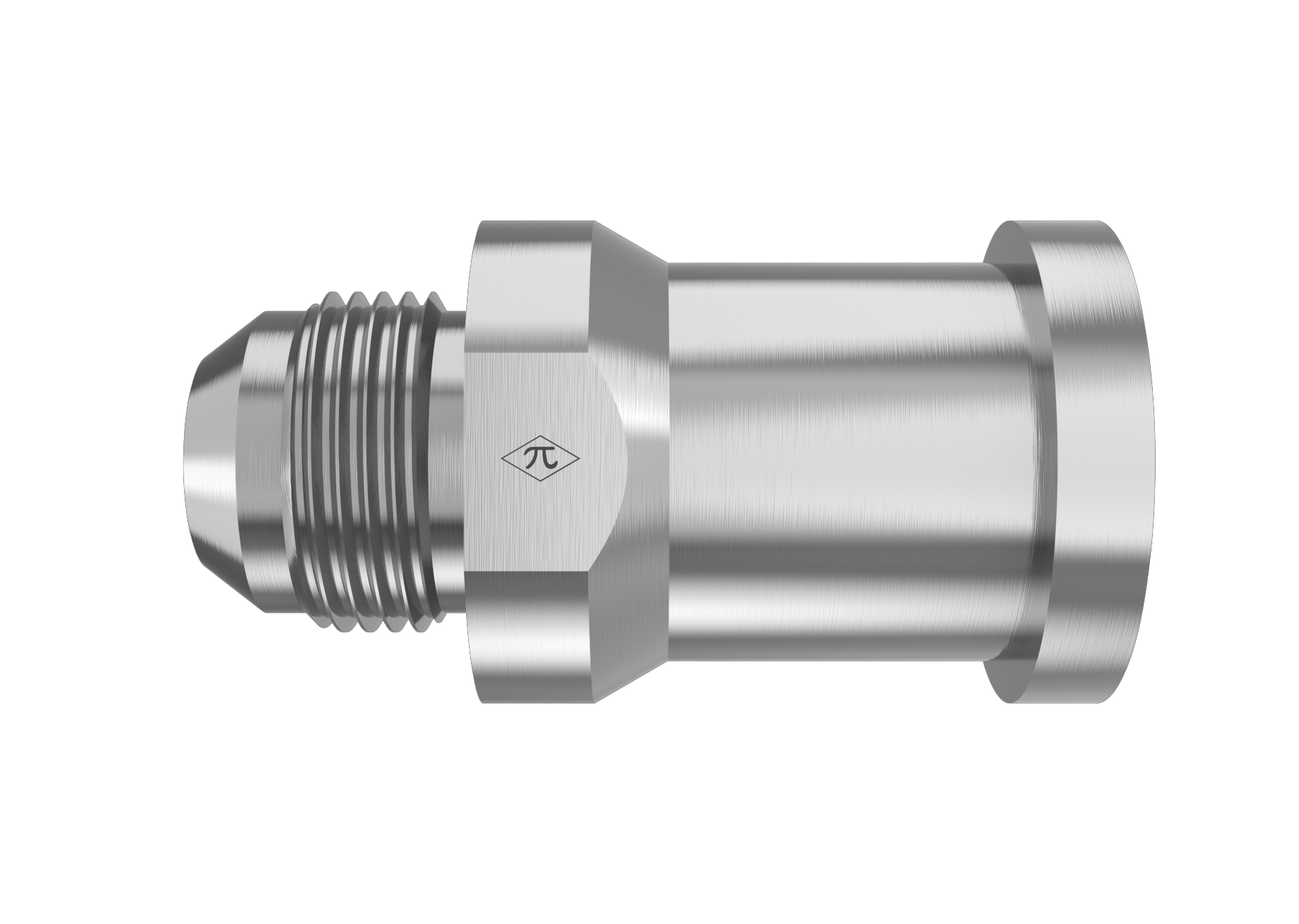

3/4" Male JIC x 1-1/2" Split Flange Head

1700-12-24 is a 3/4" Male JIC x 1-1/2" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$35.55
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeSplit Flange Head
Size1-1/2"
StandardSAE J518
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight1.03 lb
Cross References
Aeroquip500025-24-12S
Parker12-24 XHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
