HGW HYDRAULICS

1700-16-12

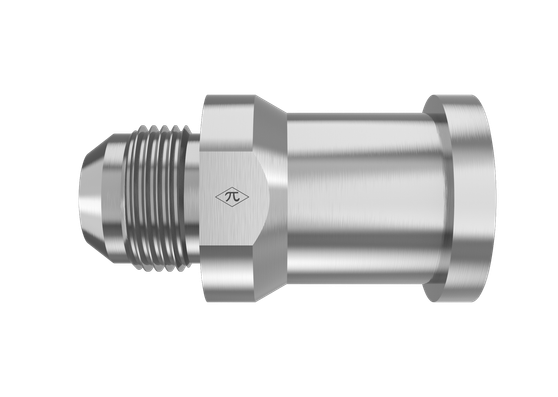

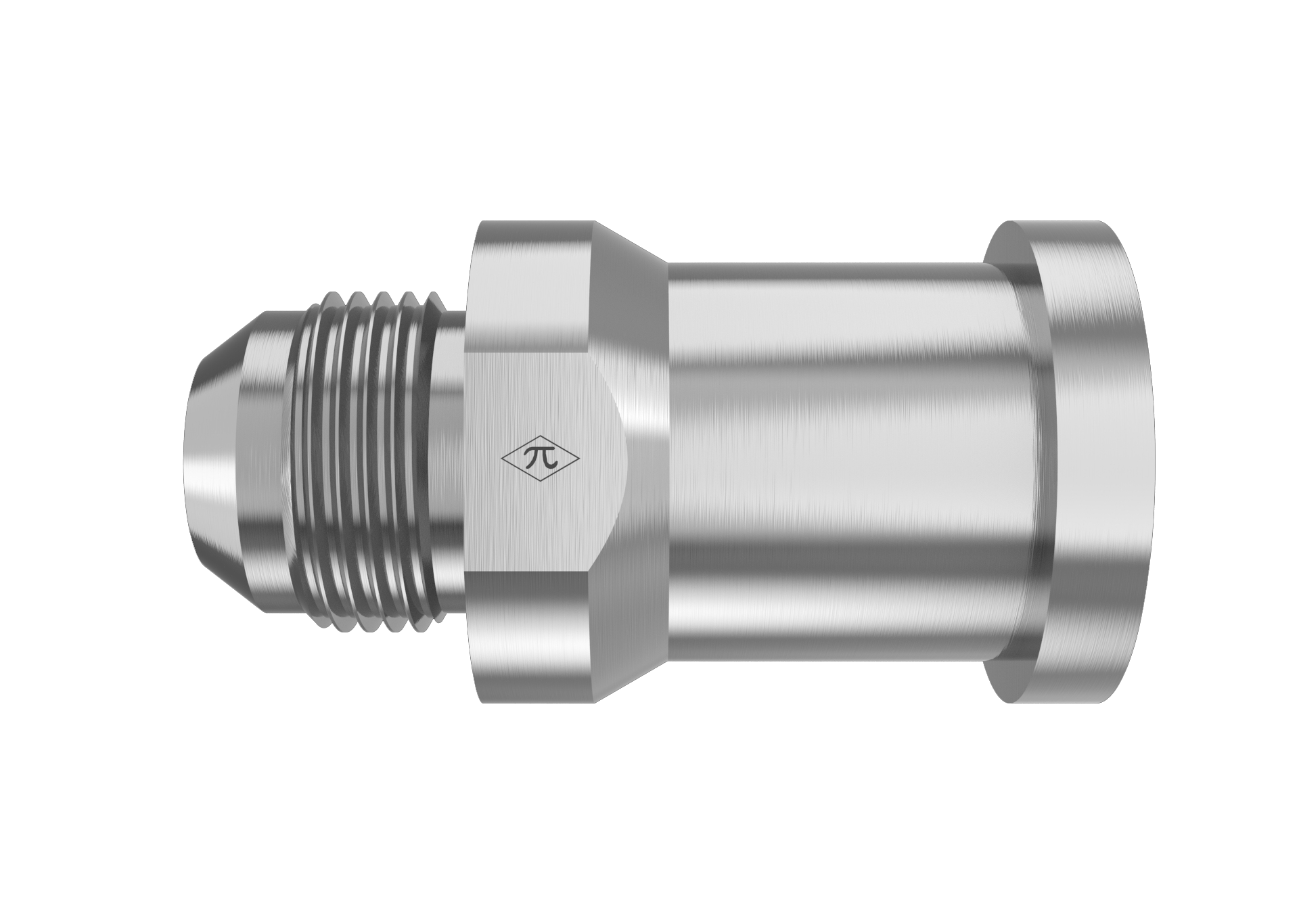

1" Male JIC 37° Flare × 3/4" Split Flange Head · Straight Male Adapter

The HGW 1700-16-12 is a straight male adapter joining 1" male JIC 37° flare to 3/4" split flange head. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J518 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$12.58
(0) Write a Review
SKU:
1700-16-12

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeSplit Flange Head
Size3/4"
StandardSAE J518
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight0.57 lb
Cross References
Aeroquip500025-12-16S
Parker16-12 XHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
