HGW HYDRAULICS

1700-16-16-SS

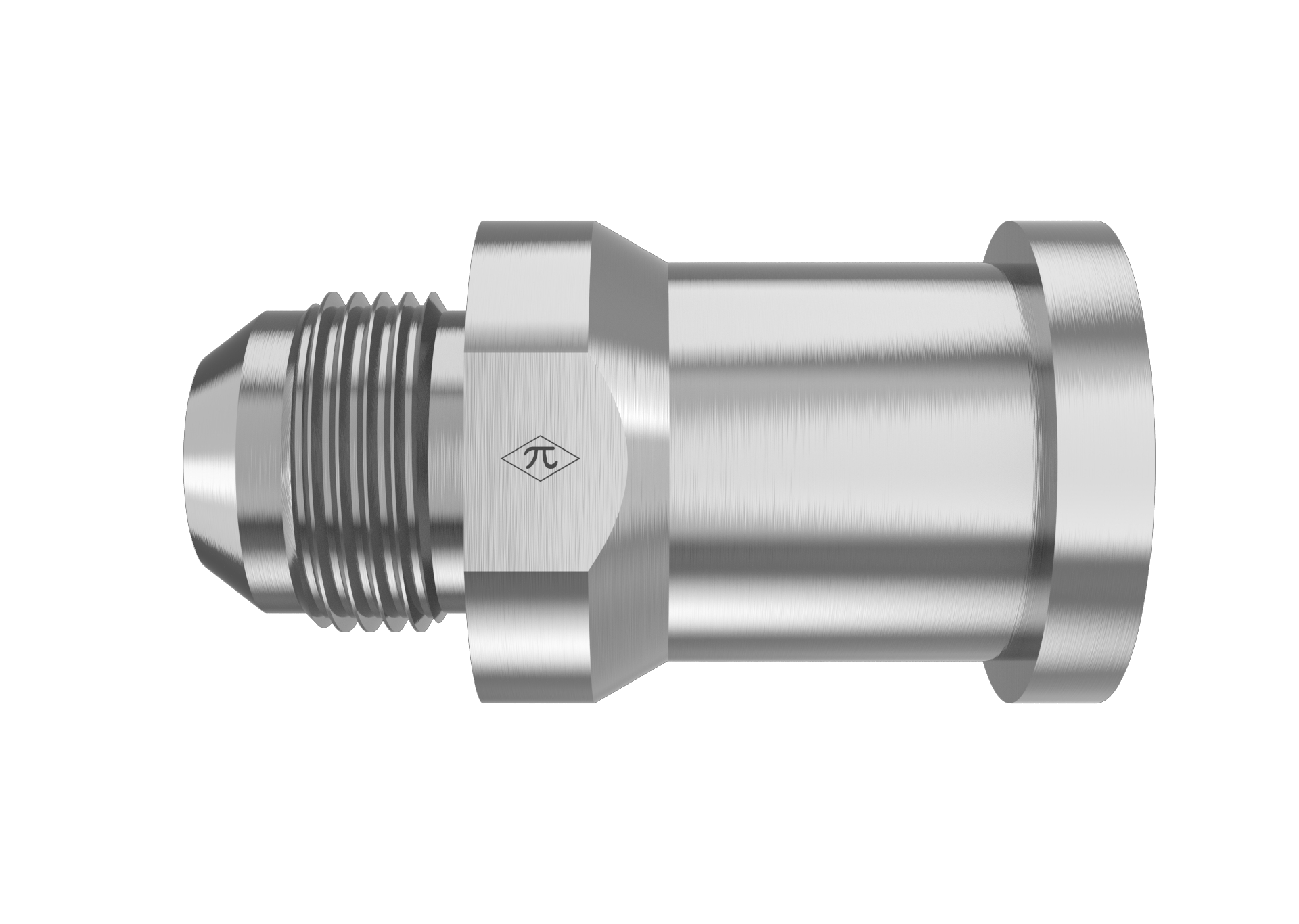

1" Male JIC 37° Flare × 1" Split Flange Head · Straight Male Adapter

The HGW 1700-16-16-SS is a straight male adapter joining 1" male JIC 37° flare to 1" split flange head. Made from stainless steel, it uses SAE J514 and SAE J518 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Male Adapter
$293.45
(0) Write a Review
SKU:
1700-16-16-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeSplit Flange Head
Size1"
StandardSAE J518
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Adapter
Weight0.90 lb
Cross References
Aeroquip259-500025-16
Parker16 XHQ1-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
