HGW HYDRAULICS

1700-16-16X3.60

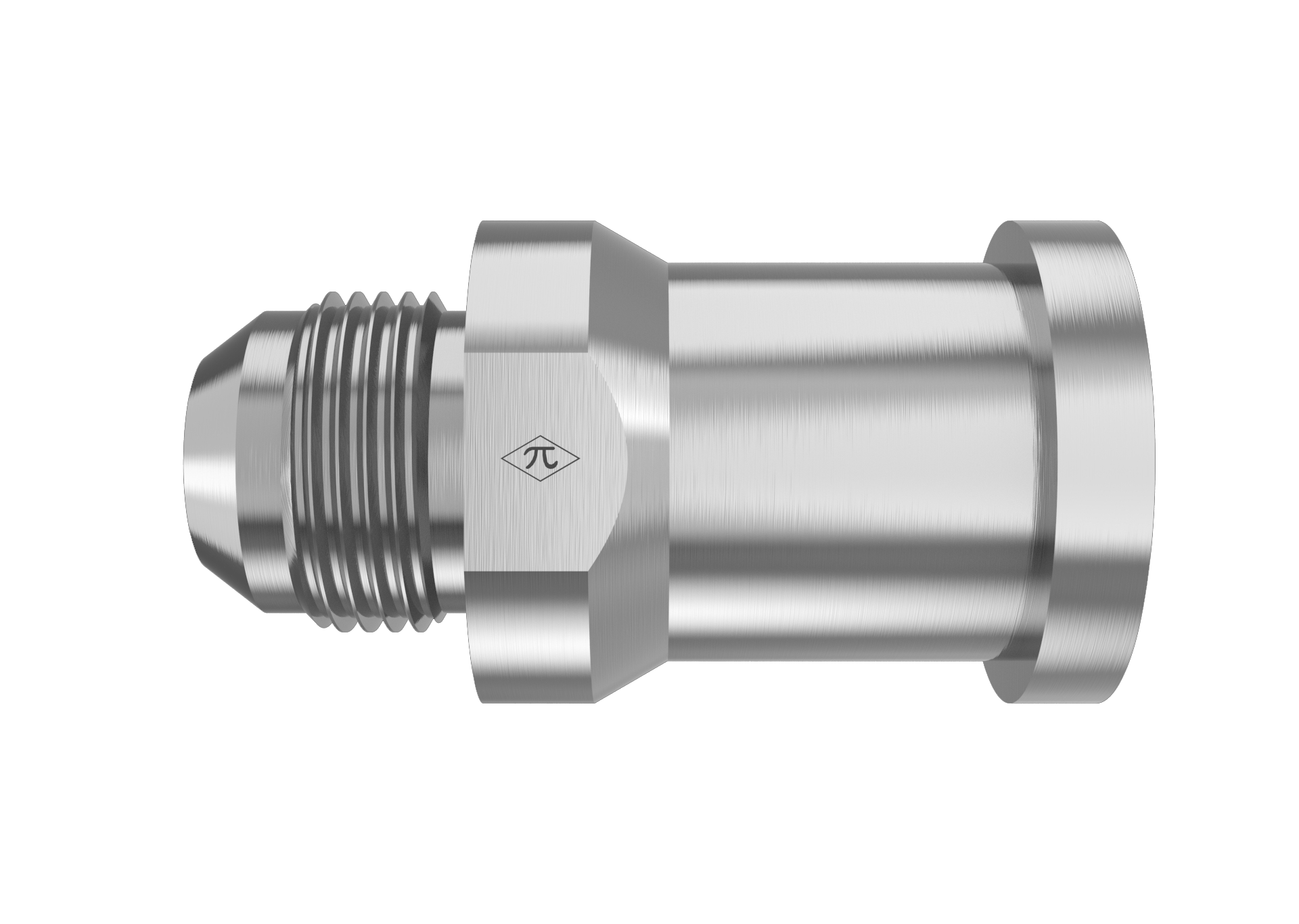

1" Male JIC x M16x3.60 Split Flange Head

1700-16-16X3.60 is a 1" Male JIC x M16x3.60 Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
$106.13
(0) Write a Review
SKU:
1700-16-16X3.60

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Connection B
TypeSplit Flange Head
StandardSAE J518
SizeM16x3.60
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
