HGW HYDRAULICS

1700-20-32

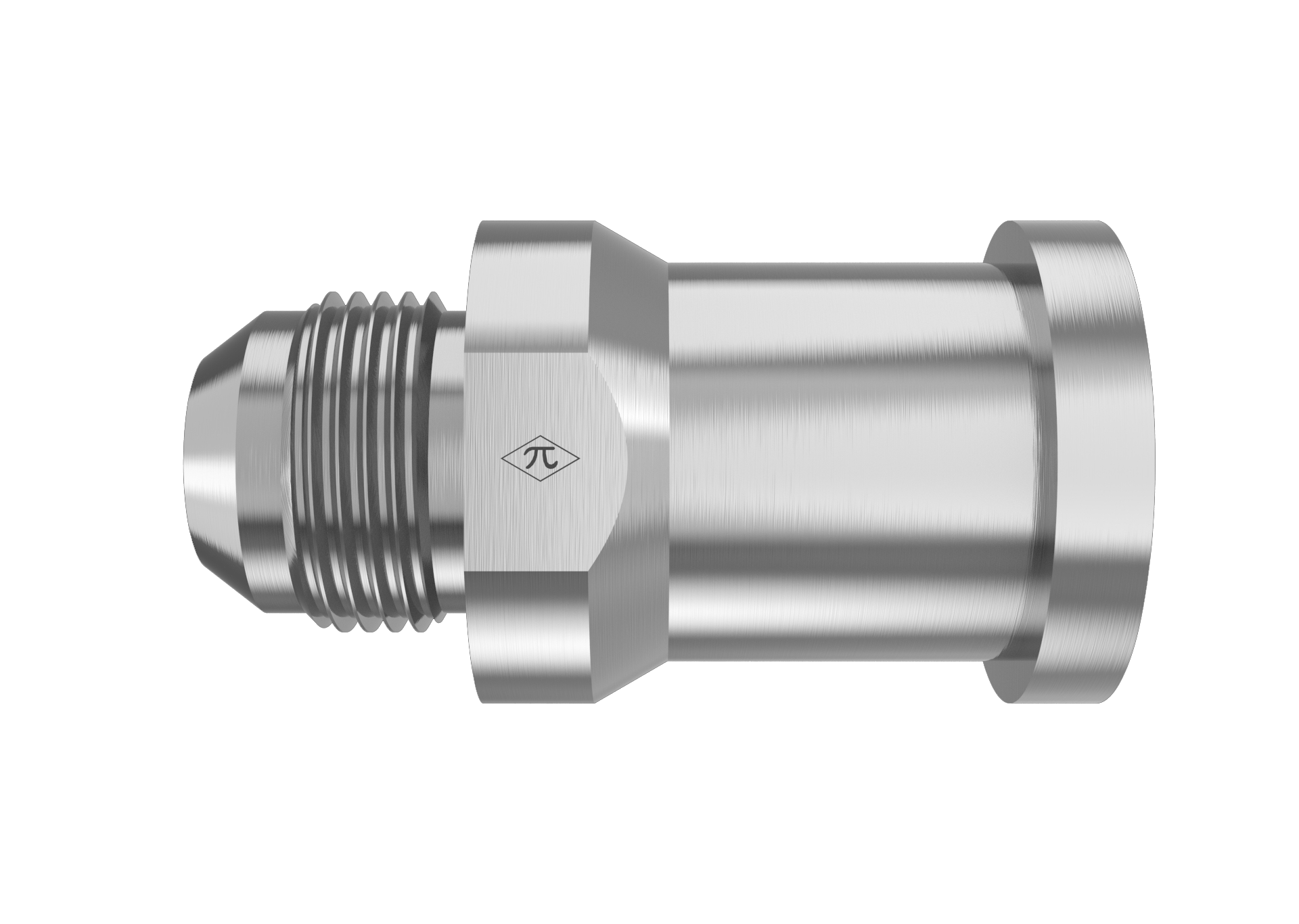

1-1/4" Male JIC x 2" Split Flange Head

1700-20-32 is a 1-1/4" Male JIC x 2" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$54.24
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/8-12 UN
Connection B
TypeSplit Flange Head
Size2"
StandardSAE J518
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight2.60 lb
Cross References
Aeroquip500025-32-20S
Parker20-32 XHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
