HGW HYDRAULICS

1700-24-40

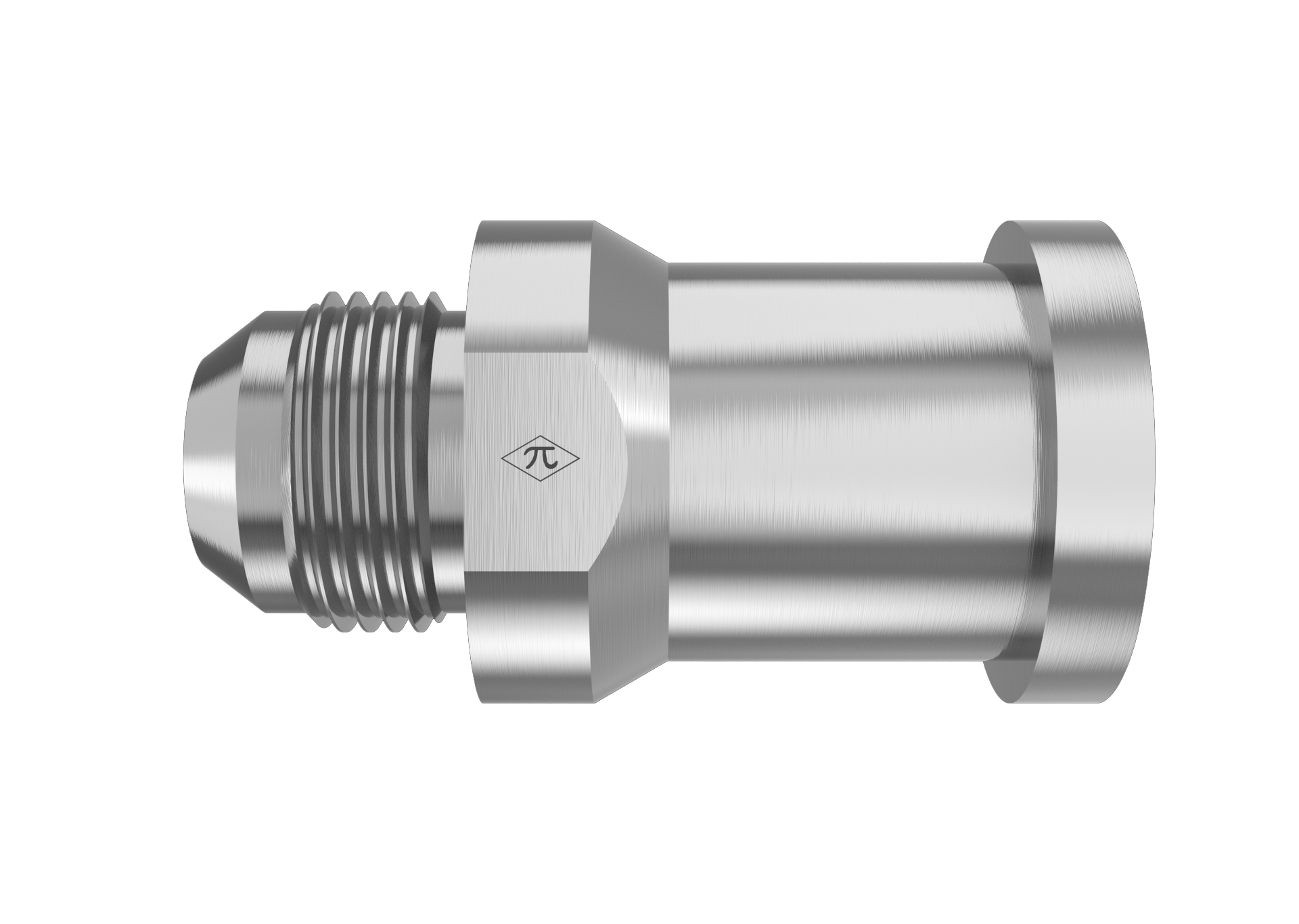

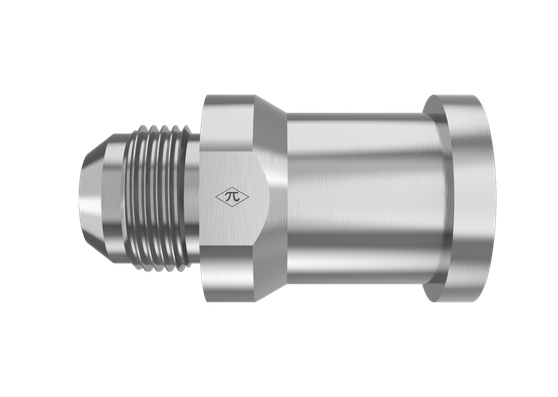

1-1/2" Male JIC 37° Flare × 2-1/2" Split Flange Head · Straight Male Adapter

The HGW 1700-24-40 is a straight male adapter joining 1-1/2" male JIC 37° flare to 2-1/2" split flange head. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J518 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$58.21
(0) Write a Review
SKU:
1700-24-40

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1-1/2"
StandardSAE J514 · Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeSplit Flange Head
Size2-1/2"
StandardSAE J518
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight3.31 lb
Cross References
Aeroquip500025-40-24S
Parker24-40 XHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
