HGW HYDRAULICS

1700-32-40-SS

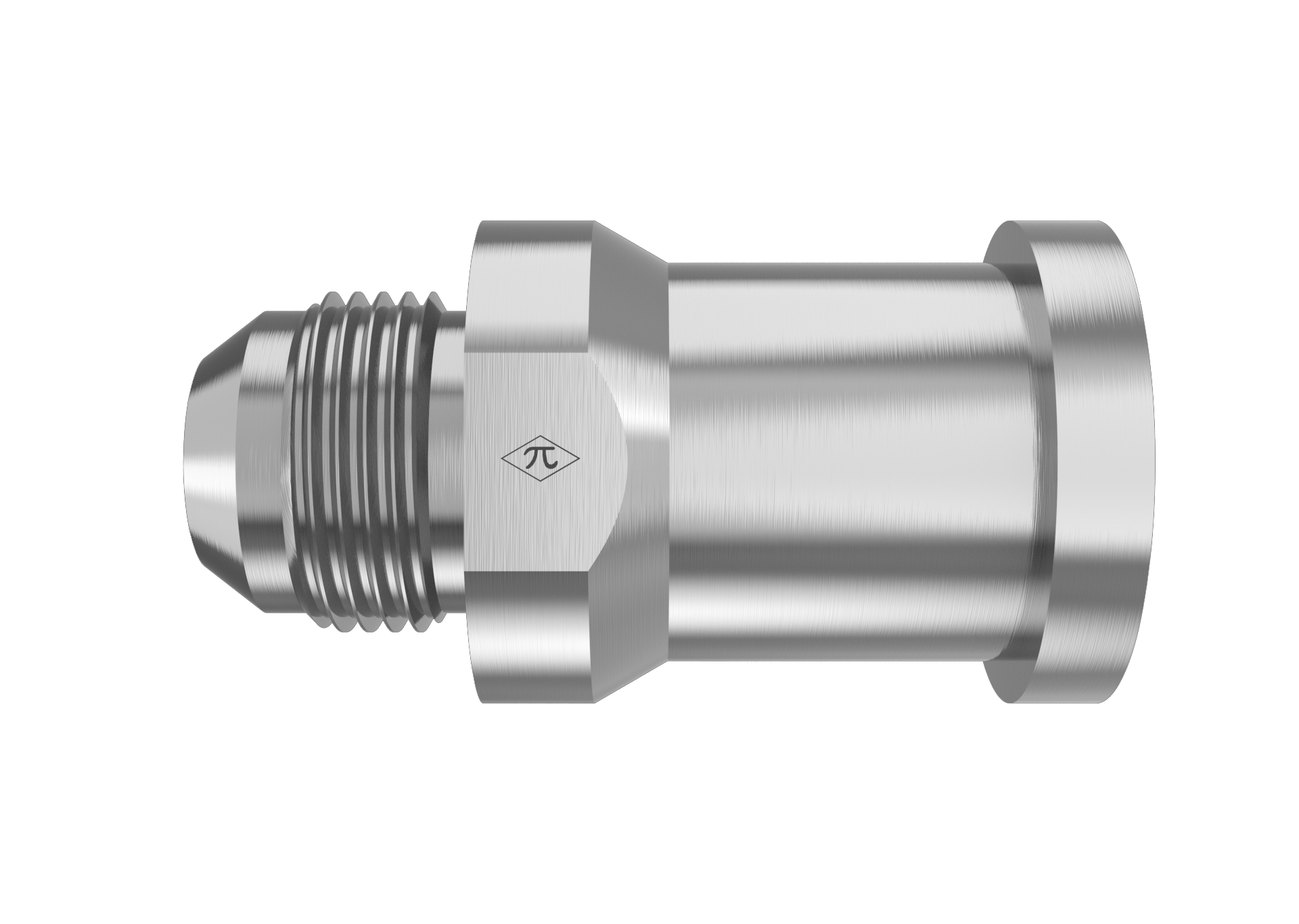

2" Male JIC x 2-1/2" Split Flange Head

1700-32-40-SS is a 2" Male JIC x 2-1/2" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Stainless Steel
  • None
  • Male Adapter
$944.66
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeSplit Flange Head
Size2-1/2"
StandardSAE J518
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeMale Adapter
Weight3.16 lb
Cross References
Aeroquip259-500025-40-32
Parker32-40 XHQ1-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
