HGW HYDRAULICS

1700-40-40

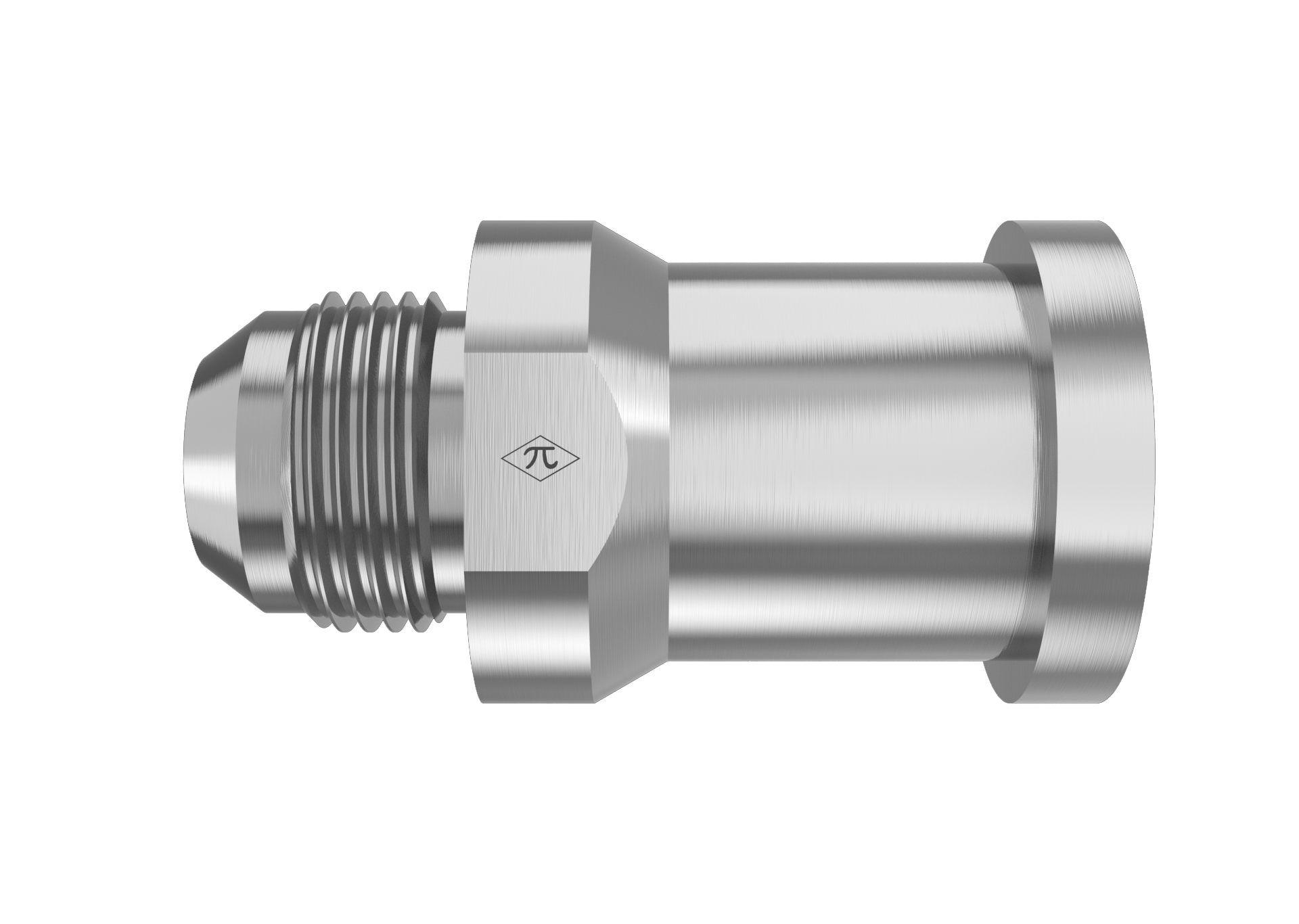

2-1/2" Male JIC x 2-1/2" Split Flange Head

1700-40-40 is a 2-1/2" Male JIC x 2-1/2" Split Flange Head in the 1700 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$207.50
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD2-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3-12 UN
Connection B
TypeSplit Flange Head
Size2-1/2"
StandardSAE J518
Thread Type3-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight4.09 lb
Cross References
Aeroquip500025-40S
Parker40 XHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
