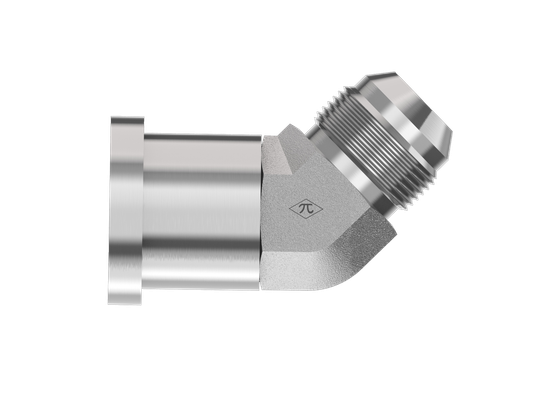

Google Merchant product image

HGW HYDRAULICS

1703-16-16-FG

1" Male JIC 37° Flare × 1" Split Flange Head · Male Forged Elbow

The HGW 1703-16-16-FG is a male forged elbow joining 1" male JIC 37° flare to 1" split flange head. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J518 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Forged Elbow
$27.36
(0) Write a Review
SKU:
1703-16-16-FG

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeSplit Flange Head
Size1"
StandardSAE J518
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Forged Elbow
Weight0.90 lb
Cross References
Parker16 XVQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
