1703-32-32-FG

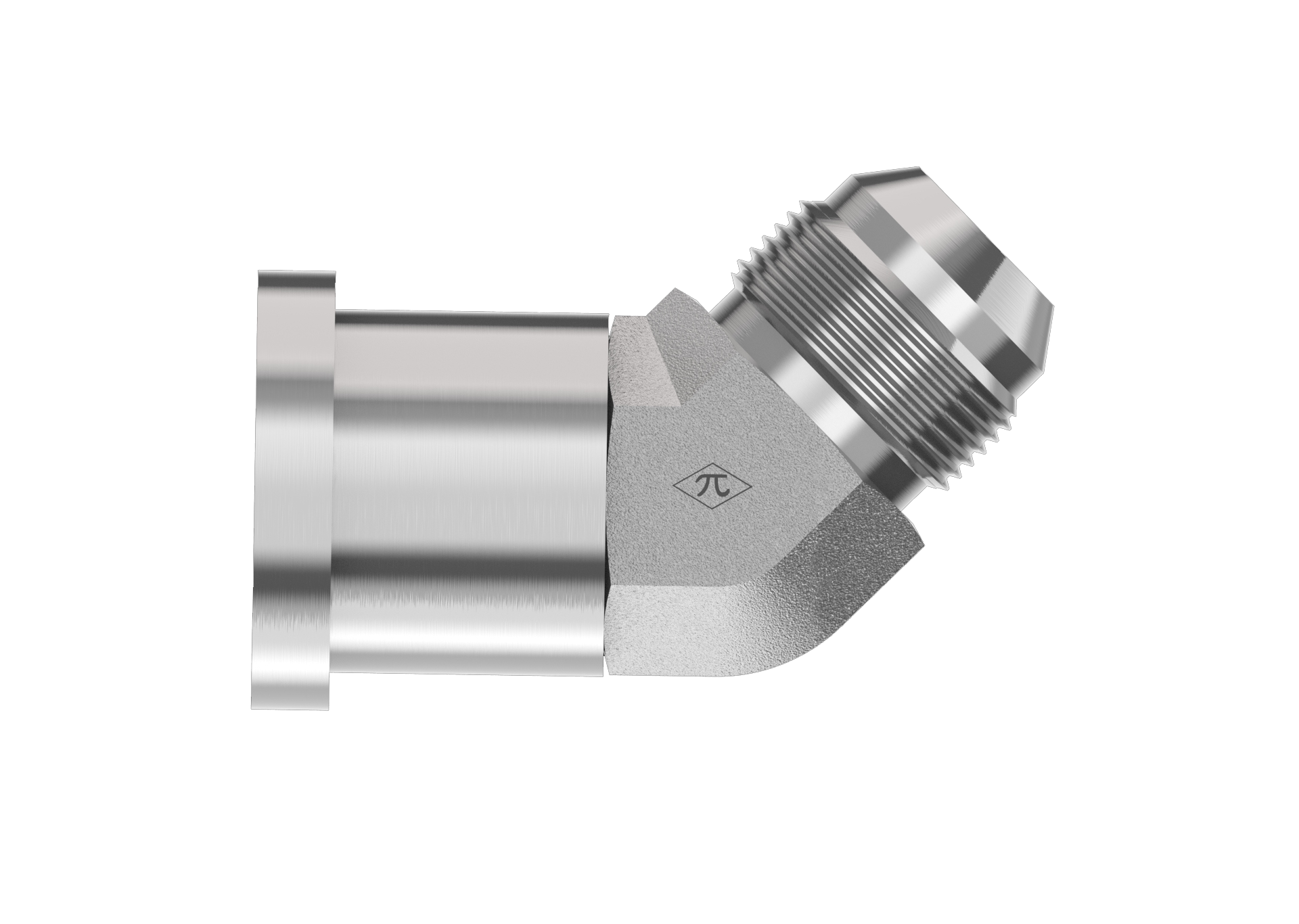

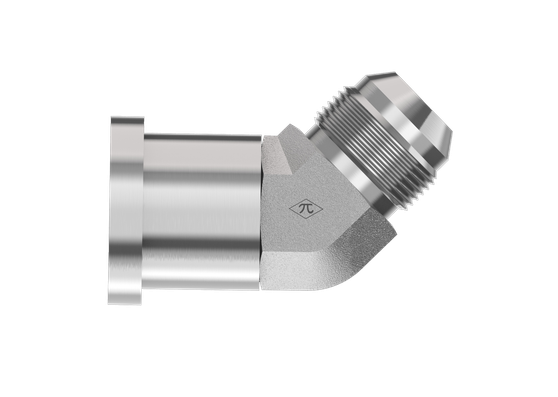

2" Male JIC x 2" Split Flange Head

1703-32-32-FG is a 2" Male JIC x 2" Split Flange Head in the 1703-FG Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 45° angle using a forged body for additional strength.

  • Steel
  • Trivalent Zinc
  • Male Forged Elbow
$123.00
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeSplit Flange Head
Size2"
StandardSAE J518
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Forged Elbow
Weight3.67 lb
Cross References
Parker32 XVQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
