HGW HYDRAULICS

1704-08-08-FG

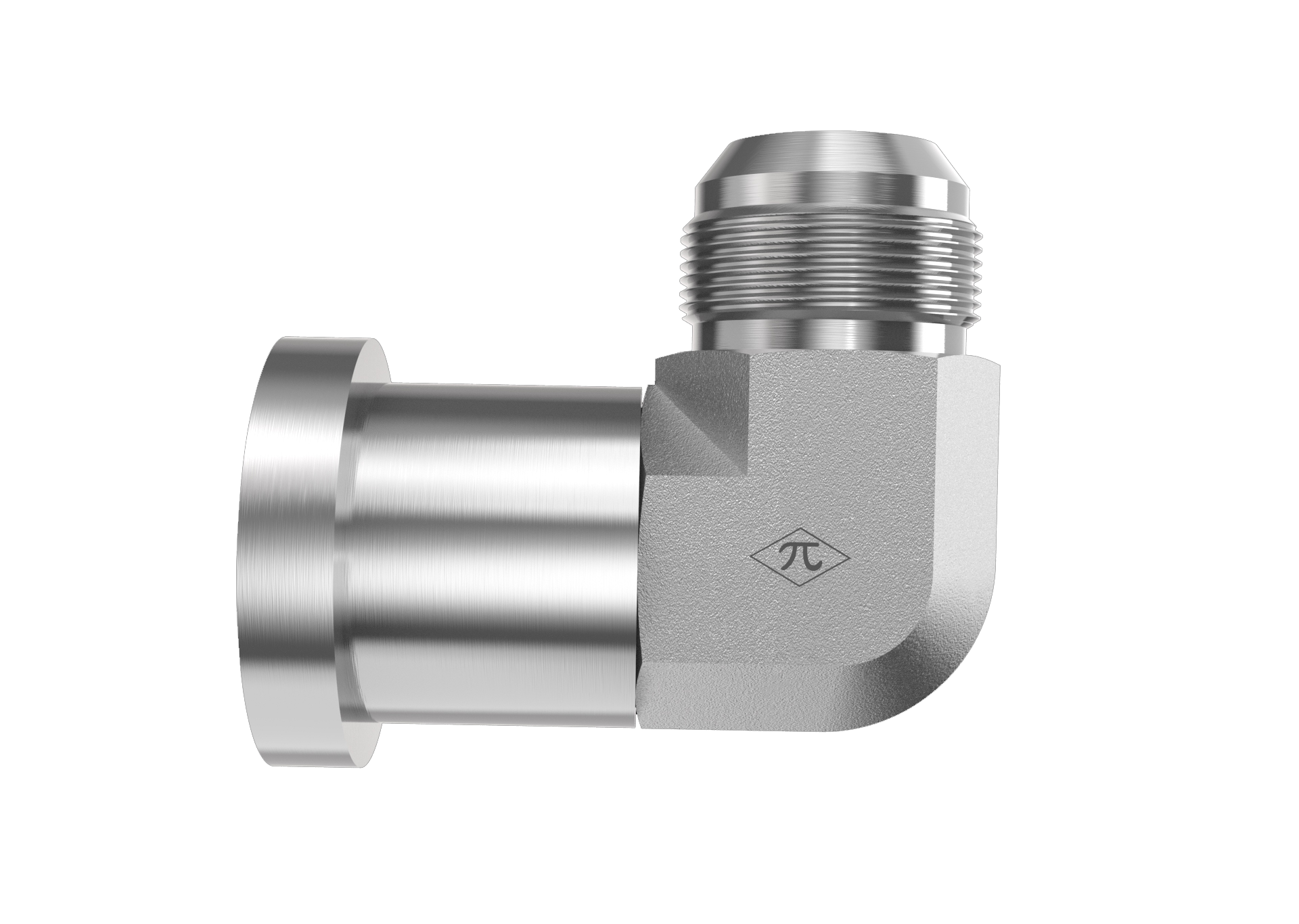

1/2" Male JIC x 1/2" Split Flange Head

1704-08-08-FG is a 1/2" Male JIC x 1/2" Split Flange Head in the 1704-FG Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 90° angle using a forged body for additional strength.

  • Steel
  • Trivalent Zinc
  • Male Forged Elbow
$20.00
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeSplit Flange Head
Size1/2"
StandardSAE J518
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Forged Elbow
Weight0.51 lb
Cross References
Parker8 XEQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
